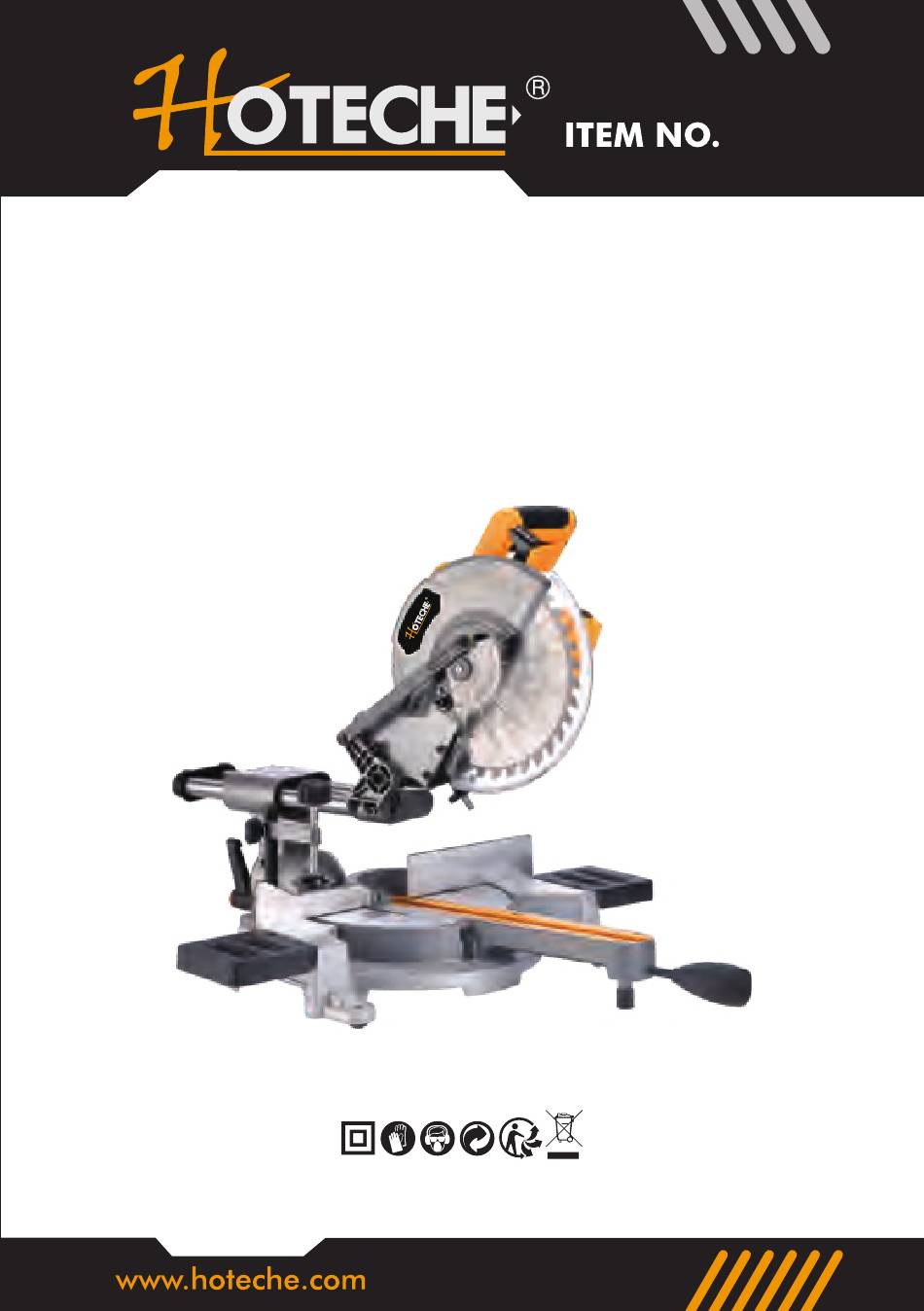

  • Page 1 SINCE 1995 P805218A 15A(1800W) 255MM(10'') SLIDING MITER SAW WITH LASER...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING : When using electric tools, machines or equipment, basic safety shock, and personal injury. READ INSTRUCTIONS BEFORE USING THIS TOOL 1. KEEP WORK AREA CLEAN. Cluttered areas can cause injuries. 2. CONSIDER WORK AREA ENVIRONMENT. Don’t use power tools in damp, wet, or poorly lit locations.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS 15. USE EYE PROTECTION. or coarse dust. 16. SECURE WORK. 17. DON’T OVERREACH. 18. MAINTAIN TOOLS. 19. AVOID UNINTENTIONAL STARTING. Be sure the switch is in the OFF posi 20. ALWAYS CHECK AND MAKE SURE TO REMOVE ANY ADJUSTING KEYS OR WRENCHES BEFORE TURNING THE TOOL ON.

  • Page 4: Specifications

    SAFETY PRECAUTIONS FOR COMPOUND MITER SAW ALWAYS USE TABLE EXTENSIONS AND CLAMPS TO SUPPORT THE MATERIAL WHEN SAWING LONG WORK PIECES. 9. THE MATERIAL SHOULD BE PLACED FIRMLY AGAINST THE FENCE AND TABLE 10. DO NOT START THE SAW WITH THE BLADE IN CONTACT WITH ANY SURFACE.

  • Page 5: Operating Procedures

    OPERATING PROCEDURES CAUTION! Be sure the saw is disconnected from its power source before making any repairs or performing maintenance! CLAMPING WORKPIECE: WARNING: no part of the tool contacts the hold-down clamp. START UP USING YOUR SAW After unpacking, reading the instructions, attaching the machine to the workbench, and checking that all attachments are correctly installed, you can use your saw.

  • Page 6: Modes Of Use

    OPERATING PROCEDURES lower blade cally. cally. MODES OF USE Chop cut: Miter cut: Bevel cut: Compound cut: NOTE: side of the table to prevent interfering with the movement of the cutting head. Always check before making the cut if there is any potential interference from the clamp or any other part of the machine.
  • Page 7 MAINTENANCE ALIGNING MITER AND BEVEL Miter Angle Make sure the Fence is perpendicular (at a 90° angle) to the Saw Blade,using carpenter square (can be purchased at any hardware store, and comes in various sizes.). Bevel Angle A. Vertical stop: 0 degree adjustment , using a small carpenter square;...

  • Page 8: Replacing Saw Blade

    MAINTENANCE MAINTENANCE REPLACING SAW BLADE 1.When replacing the saw blade, make sure the new saw blade has a diameter of 10”, an RPM rating of at least 6,000, an arbor hole of 5/8” diameter. 2.When mounting the new saw blade, the direction arrows on the blade correspond with the arrow on the upper guard.
  • Page 9 MAINTENANCE 5.Rotate the lower blade guard (B) out of the way. (see Figure 4.) FIG.4 6.Depress the spindle lock (F) to keep the saw blade from turning.(See Figure 5.) FIG.5 FIG.5 FIG.5 7.Use the wrench to unscrew and remove the spindle bolt.NOTE: The Spindle Bolt unscrews in a clockwise direction.Then,remove the Outer Flange.

  • Page 10: Schematic Drawing

    SCHEMATIC DRAWING...

  • Page 11: Parts List

    PARTS LIST...
