Summary of Contents for Hoteche P805201A

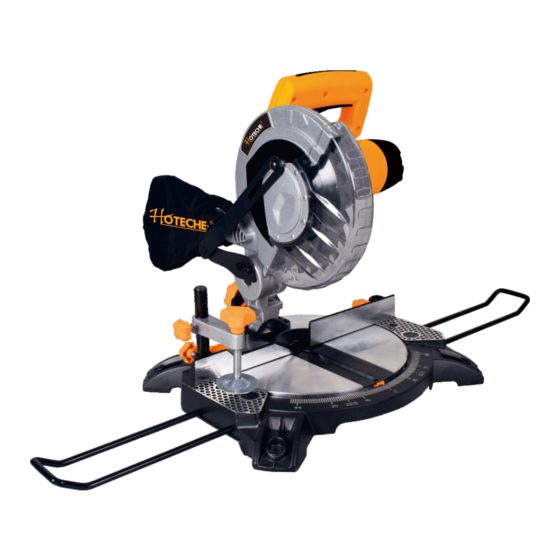

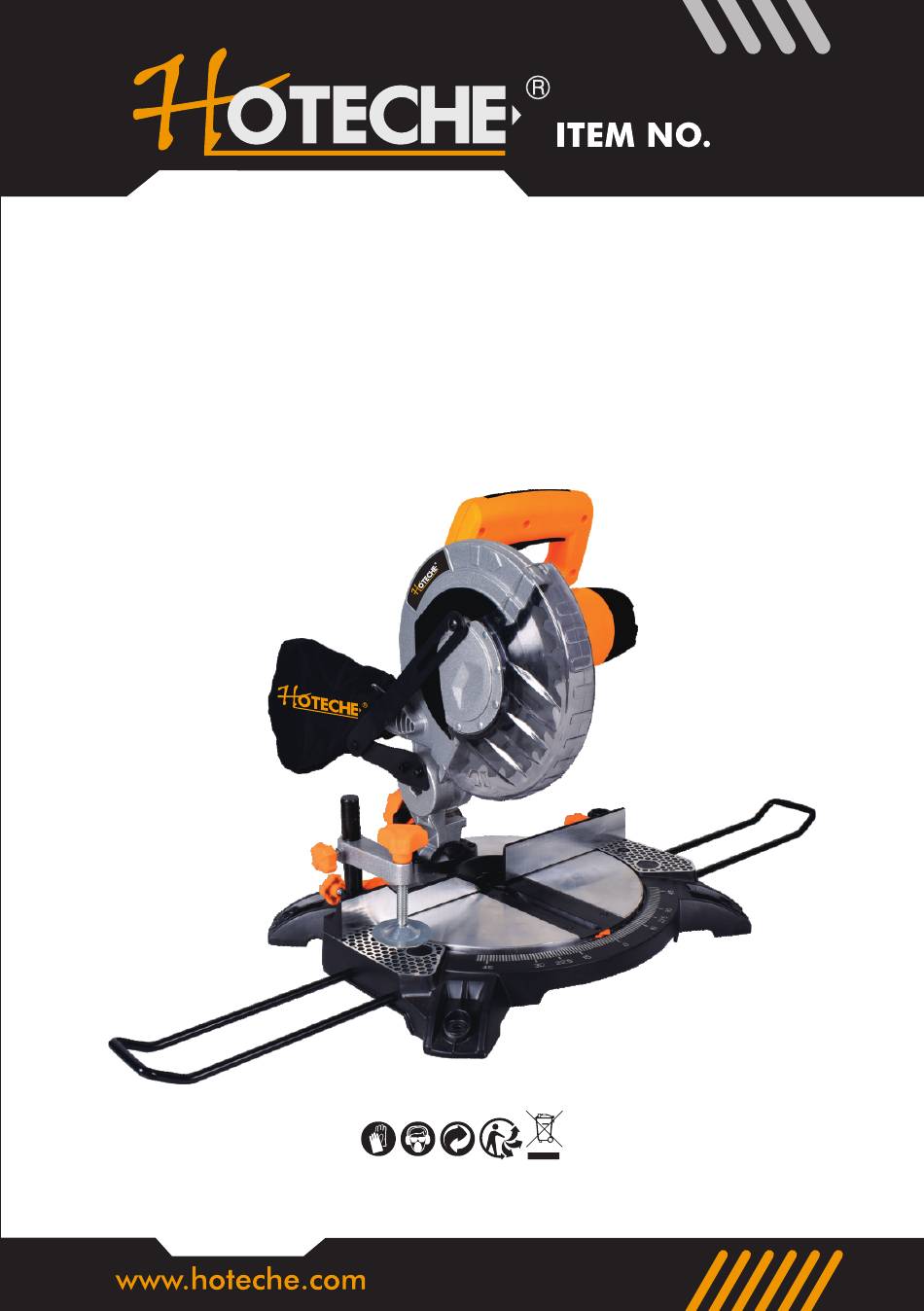

- Page 1 SINCE 1995 P805201A 11.5A(1400W) 210MM(8 '') MITER SAW...
- Page 2 Original Instructions [EN] Read all safety warnings and all instructions before use. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 3: General Safety Instructions
Original Instructions [EN] GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings instructions, illustrations and specifications provided with this power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury . The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. -
Page 4: Safety Instructions For Mitre Saws
Original Instructions [EN] Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. - Page 5 Original Instructions [EN] d) Push the saw through the workpiece. Do not pull the saw through the workpiece. To make a cut, raise the saw head and pull it out over the workpiece without cutting, start the motor, press the saw head down and push the saw through the workpiece. Cutting on the pull stroke is likely to cause the saw blade to climb on top of the workpiece and violently throw the blade assembly towards the operator .
- Page 6 Original Instructions [EN] to stop before removing the cut-off piece. Reaching with your hand near the coasting blade is dangerous. s) Hold the handle firmly when making an incomplete cut or when releasing the switch before the saw head is completely in the down position. The braking action of the saw may cause the saw head to be suddenly pulled downward, causing a risk of injury.
- Page 7 Original Instructions [EN] SYMBOLS WARNING – To reduce the risk of injury, user must read the Instruction manual Wear gloves protection Warning Wear ear protection Wear eye protection Wear respiratory protection Double insulated for additional protection Conforms to relevant safety standards Risk of injury! Do not reach into the running saw blade and cutting lines.
- Page 8 Original Instructions [EN] Components and controls 1. Dust extraction port 14. Vertical clamp 2. Miter lock 15. Handle Switch locker 16. Switch trigger 4. Upper fixed blade guard 17. 45° Bevel adjustment screw 5. Blade bolt cover 18. Support bar 6.
-
Page 9: Technical Data
Original Instructions [EN] TECHNICAL DATA 110-120V~ 50/60Hz Rated voltage 11.5A(1400W) Rated power input Speed, n 5000/min Ø 210mm x Ø 16mm x 24T x2.6mm Saw blade Cutting angle range 0-45° Bevel cuts 0° to 45° to the left Straight cut at 0° x 0° : 12 x 5.5 cm Miter cut at 0°... - Page 10 Original Instructions [EN] ACCESSORIES This COMPOUND MITER SAW comes with the following accessories : • 1pair carbon brush • 1pc M6 wrench • 1pc dust bag • 1pc working clamp • 1pc TCT saw blade • 2pcs extension bars...
- Page 11 Original Instructions [EN] ASSEMBLY Note: Before using the tool, read the instruction book carefully. WARNING: To prevent the accidental starting that could cause possible serious personal injury, ALWAYS assemble all parts to your saw BEFORE connecting it to the power supply. The saw should NEVER be connected to a power supply when you are assembling parts, making adjustments, installing or removing blades, or when not in use.
-
Page 12: Operation
Original Instructions [EN] OPERATION 1. RELEASING THE SAW HEAD (Fig.4,5) When boxed or during storage, transportation, the saw head is locked in the down position. To release the head ready for operation, apply downward pressure and pull out the lock pin (b).The head will be raised gently to upper position. -
Page 13: Maintenance
Original Instructions [EN] MAINTENANCE WARNING: Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. When all the adjustments, settings or maintenance Have been done, make sure that all keys and wrenches have been removed and that all screws, bolts and other fittings are securely tightened. - Page 14 Original Instructions [EN] 2. CHANGING THE SAW BLADE (Fig. 15-20) NOTE: Blade securing bolt has a left hand thread. Remove the blade, (we recommend the use of a shout glove for this). Clean any saw dust and debris from the arbour and saw blade securing flanges. 1.
-
Page 15: Environmental Protection
Original Instructions [EN] ENVIRONMENTAL PROTECTION This product is marked with the selective sorting symbol on waste electrical and electronic equipment. This means that this product should nit be disposed of with household waste but must be supported by a collection system in accordance with Directive 2012/19/EU. - Page 17 Name Quantity Material&Specification Name Quantity Material&Specification Rubber boot Rubber Blade flange outer φ44×6 Bearing 80027 Washer φ8 Armature φ41.2×50 Socket head screw M8×16 left Stator φ71×50 Rivet φ4×11 Fan baffle Cast centre Washer φ4 Moving guard Spring washer φ4 Torsion spring Screw M4×60 Screw...
