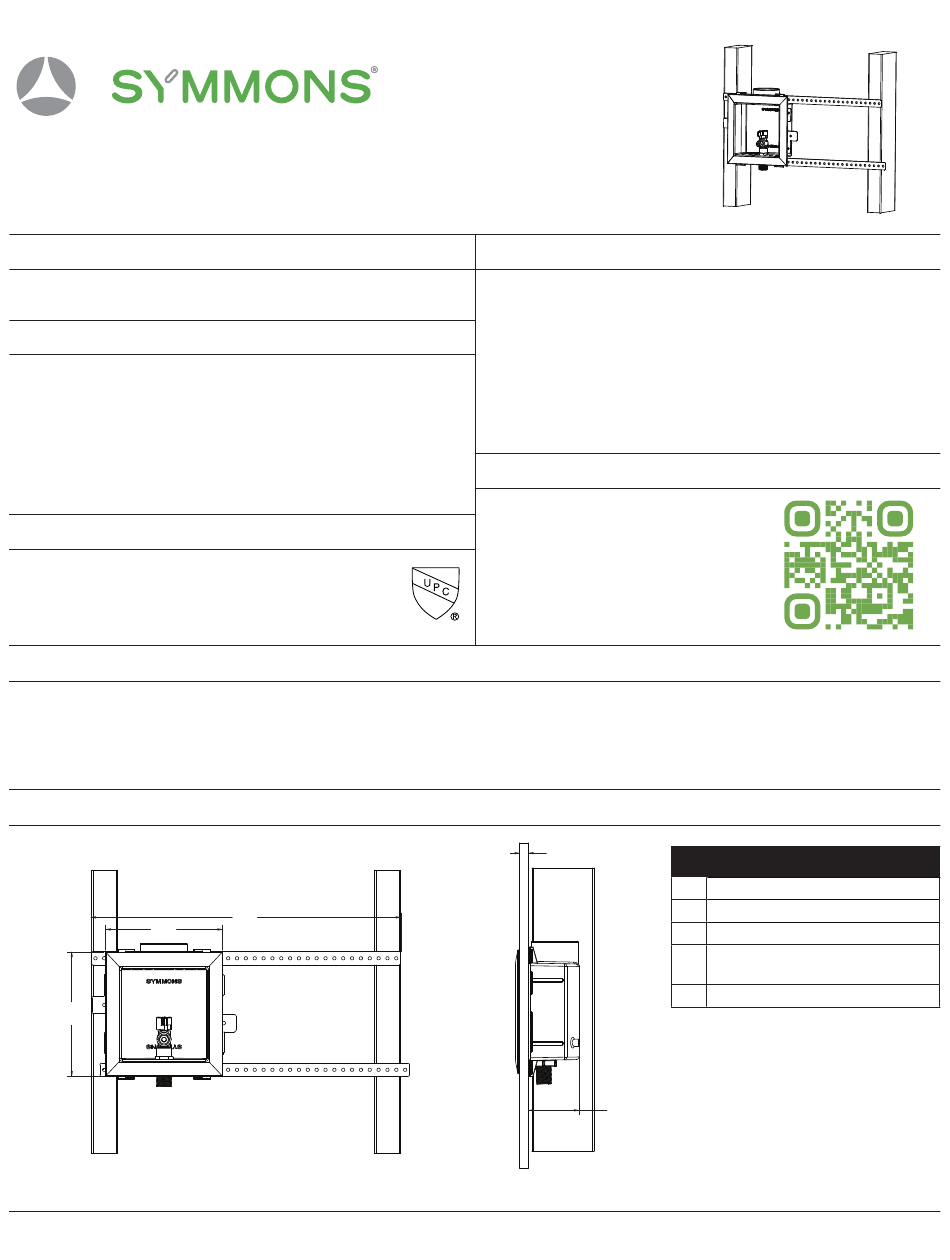

Symmons IceMate IM600 Manual

IM600
IceMate Valve
TM
Specification Submittal
Model Numbers
☐
IM600
IceMate
Options/Modifications
☐
A
☐
P1
☐
P2
Note: Append appropriate -suffix to model number.
Compliance
- ASME A112.18.1/CSA B125.1
- NSF 61.9, NSF 372
- ASSE 1010 (IM600A only)
Architectural/Engineering Specification
Symmons IceMate __________ :with dual-sided mounting tabs or installation straps that allow for top or bottom
TM
supply mounting. Accommodates single 1/2" drywall up to two layers of 5/8" drywall. Inlets include 1/2-14 NPSM
with 1/2" sweat and optional "1/2" crimp PEX" or "1/2" cold expansion PEX". NSF 61.9, NSF 372, ASSE 1010 (IM600A
only) Compliant. Modifications include: "A - Water Hammer Arrester Size AA", "P1 - Crimp PEX", "P2 - Cold Expansion
PEX".
Dimensions
B
A
Note: Dimensions subject to change without notice.
Symmons Industries, Inc.
Copyright © 2021 Symmons Industries, Inc.
Supply Box with Valve
TM
Water Hammer Arrestor Size AA
Crimp PEX
Cold Expansion PEX
C
■
31 Brooks Drive
IceMate™
Feature Highlights
• Installation straps for 16" O.C. stud mounting or direct-
to-stud mounting.
• Ice Maker Valve.
• 1/2-14 NPSM with 1/2" Sweat Inlets 1/4" Outlet.
• Valve can be installed as bottom or top supply.
• Accommodates 1 layer of 1/2" drywall up to 2 layers of
5/8" drywall.
• Box material: PVC
• Mounting straps
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
c
www.symmons.com/warranty for
complete warranty information.
D
■ ■
Braintree, MA 02184 Phone: (800) 796-6667
■ ■
symmons.com gethelp@symmons.com
Measurements
A
7", 178 mm
B
6-5/8", 168 mm
C
17-1/2", 445 mm
Min. 1/2", 13 mm
D
Max. 1-1/4", 32 mm
E 2-7/8", 72 mm
E
■
Fax: (800) 961-9621
■ ■
ZV-3449 REV B 031622
