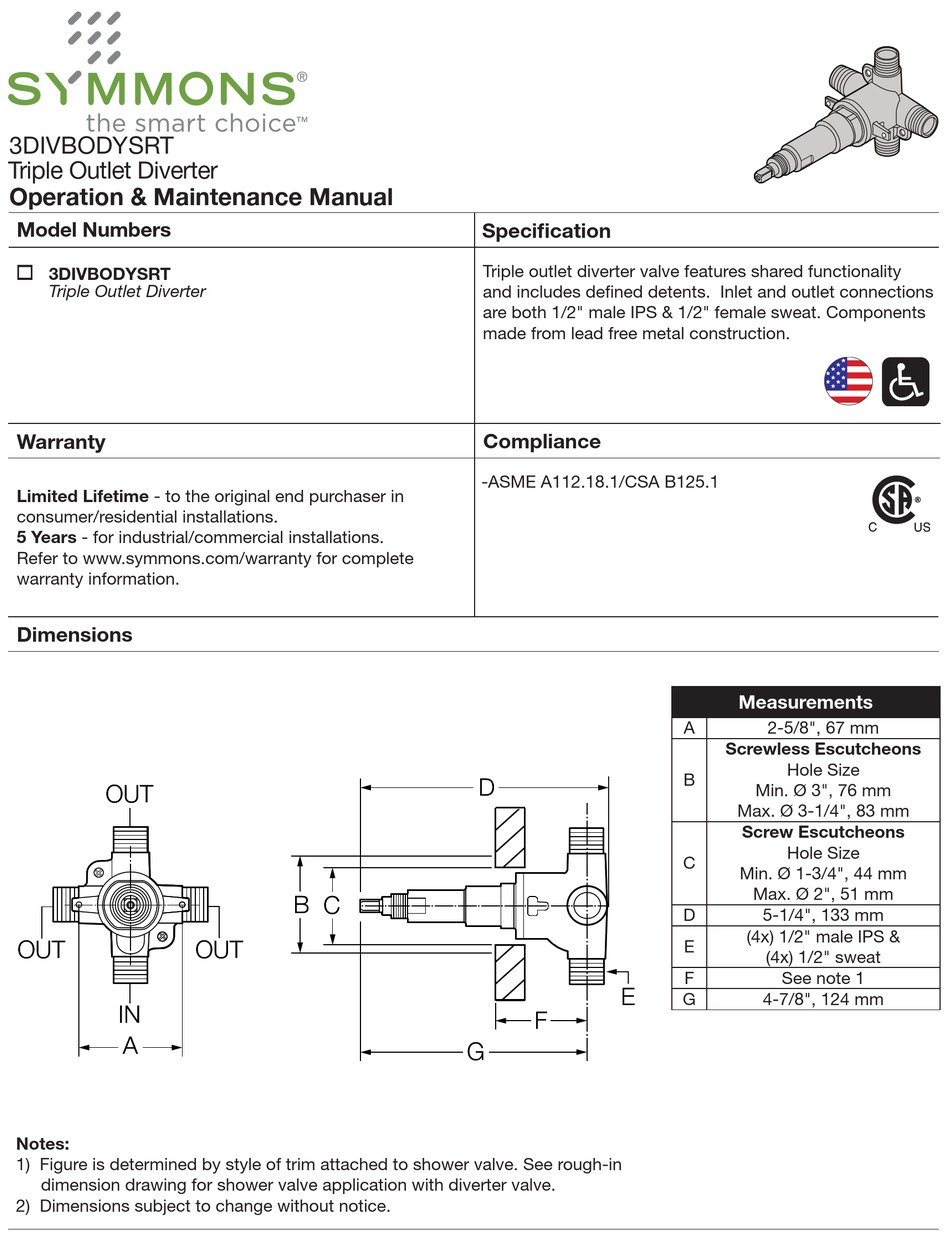

Symmons 3DIVBODYSRT Operation & Maintenance Manual

3DIVBODYSRT

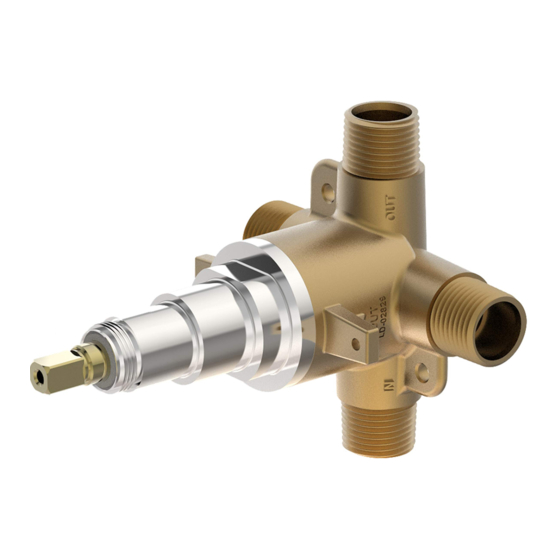

Triple Outlet Diverter
Operation & Maintenance Manual
Model Numbers

3DIVBODYSRT
Triple Outlet Diverter
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dimensions
OUT OUT
OUT OUT
IN IN
A A
Notes:
1) Figure is determined by style of trim attached to shower valve. See rough-in
dimension drawing for shower valve application with diverter valve.
2) Dimensions subject to change without notice.
B B C C
OUT OUT
Specification
Triple outlet diverter valve features shared functionality
and includes defined detents. Inlet and outlet connections
are both 1/2" male IPS & 1/2" female sweat. Components
made from lead free metal construction.
Compliance
-ASME A112.18.1/CSA B125.1
D D
E E
F F
G G
Measurements
A 2-5/8", 67 mm
Screwless Escutcheons
Hole Size
B
Min. Ø 3", 76 mm
Max. Ø 3-1/4", 83 mm
Screw Escutcheons
Hole Size
C
Min. Ø 1-3/4", 44 mm
Max. Ø 2", 51 mm
D 5-1/4", 133 mm
(4x) 1/2" male IPS &
E
(4x) 1/2" sweat
F See note 1
G 4-7/8", 124 mm
