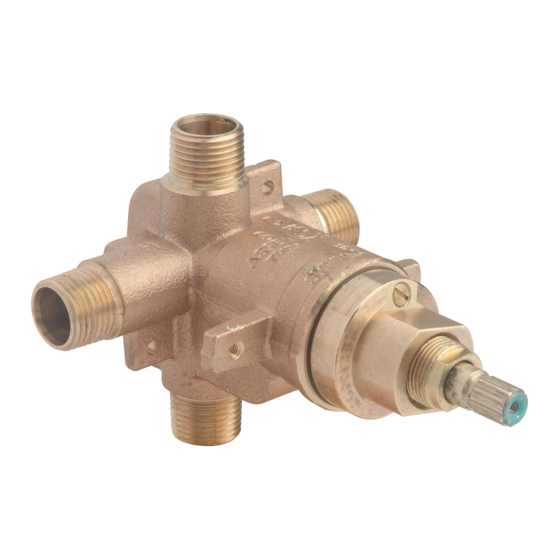

Pressure balancing valve
Hide thumbs Also See for Temptrol 262BODY:

Advertisement

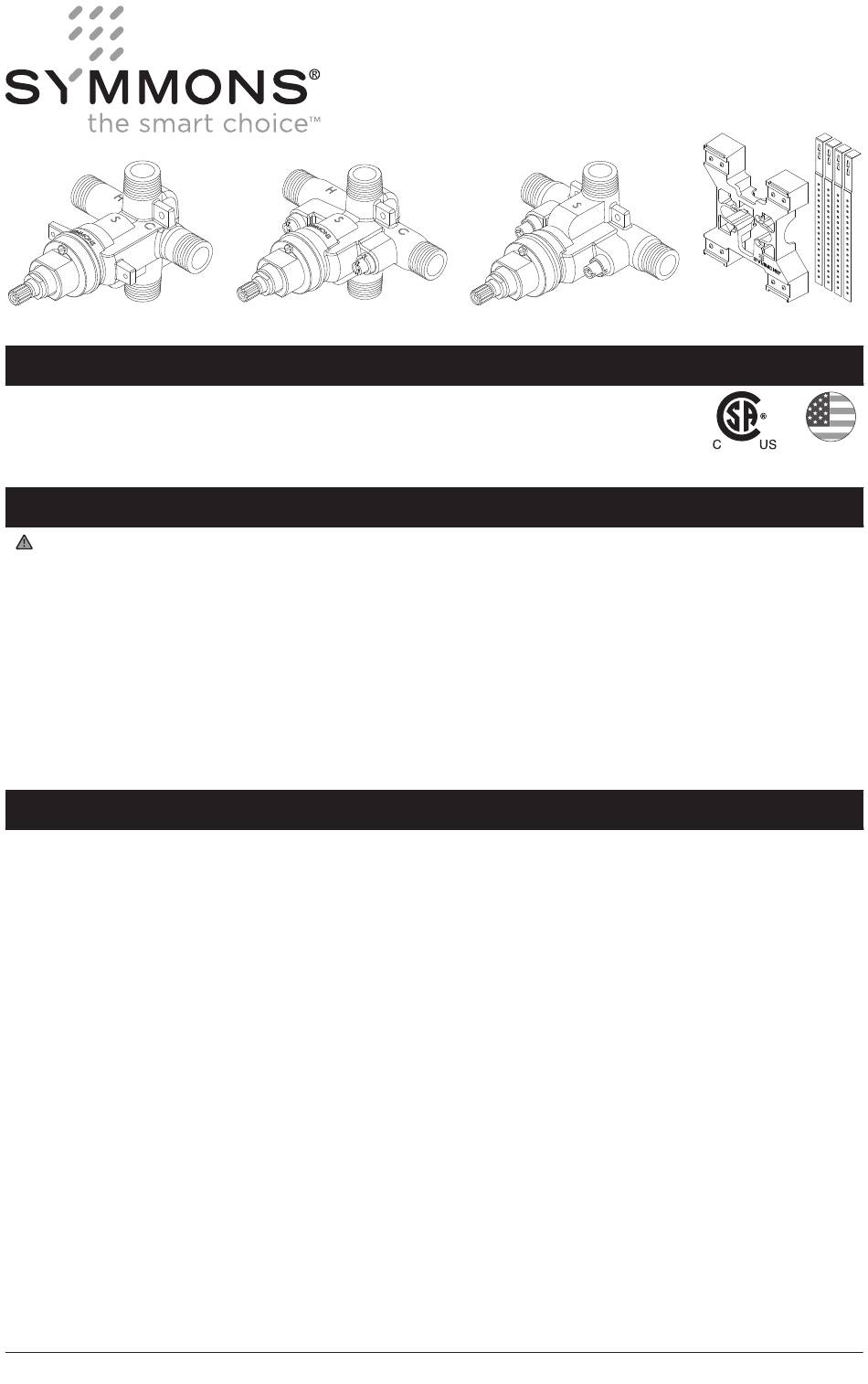

262BODY
(4 PORT)
COMPLIANCE
-ASME A112.18.1/CSA B125.1
-ASSE 1016
-Buy American Act Compliant
IMPORTANT / FOR INSTALLER
WARNING:
As the installer of this valve, you must first carefully read and understand the material covered in this manual before
installing and adjusting this valve per instructions. Failure to do so may compromise the installation, operation and/or
serviceability of this valve.
Do not install positive shut-off devices on the outlet of this valve, or devices that do not allow the valve to flow at
least 1.5 GPM at 45 psi inlet pressure. Exception: If a self-closing or slow-closing valve is installed on the outlet, the
supplies of the valve must be equipped with checks to eliminate hot to cold bypass in the event the valve's handle is
not turned off after use.
When installing this valve, failure to adjust limit stop screw properly may result in serious scalding.
LIFETIME LIMITED WARRANTY
All warranty claims MUST be pre-approved by Symmons.
All parts and finishes of the Symmons products are
warranted to the original consumer purchaser to be free
from manufacturing defects in material and workmanship
for 5 years Non-Residential or Commercial Applications.
Symmons warrants to the original consumer purchaser/
end-user that any Symmons product will be free of
defects in material and workmanship during normal
domestic use for the life of your home.
Symmons recommends using a professional plumber
for all installation and repair. During the warranty
period, Symmons at its sole option, will provide
replacement part(s) or product (or, if no longer available,
a comparable product) to replace those which have
proven defective in materials or workmanship under
normal installation, use and service, FREE OF CHARGE
for the time period of 5 years from the date of purchase.
(BATTERIES NOT INCLUDED)
This warranty is extensive in that it covers replacement of
all defective parts and even finish, but these are the only
two things that are covered. Damage due to installation
error, product abuse, product misuse, or use of cleaners
containing abrasives, alcohols, or other organic solvents,
whether performed by a contractor, Service Company
or yourself are excluded from this warranty. Symmons
will not be responsible for labor charges and/or damage
incurred in installation or repair or replacement, nor for
any indirect, incidental or consequential damages, losses,
injury or costs of any nature relating to the bathing
products. Except provided by law, this warranty is in
262XBODY
(4 PORT, SERVICE STOPS)
Temptrol ® Pressure Balancing Valve
Installation Instructions
261XBODY
(3 PORT, SERVICE STOPS)
lieu of and excluded all other warranties, conditions and
guarantees, whether expressed or otherwise, including
without restriction those of merchantability or of fitness
for use.
Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above
limitation of exclusion may not apply to you. This
warranty gives you specific legal rights, and you also may
have other rights which vary from state to state. This
warranty is not transferable. This warranty does not cover
damage or defects relating to misuse, abuse, negligence,
normal wear and tear, accident, acts of God, repairs or
alterations not authorized in writing by Symmons, or
improper installation, storage or handling.
The above mentioned warranty information includes each
product that falls under the following: Symmons Bathing
Products Warranty- Non-Residential or Commercial
Applications; Symmons Non-Electronic Lifetime
Faucet and Finish Limited Warranty Non-Residential or
Commercial Applications; Symmons Electronic Faucet
Limited Warranty - Non-Residential, Commercial and
Residential Applications; Symmons Bathing Products
Warranty- Residential Application Symmons Non-
Electronic Lifetime Faucet and Finish Limited Warranty
Residential Application
If you have any questions regarding technical support,
installation or concerns regarding our warranty plan,
please email us at GetHelp@symmons.com or call us at:
1-800-796-6667.
RTS-076
(BRACKET)
ZV-3247 REV B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Temptrol 262BODY and is the answer not in the manual?

Questions and answers

Summary of Contents for Symmons Temptrol 262BODY

  • Page 1 All parts and finishes of the Symmons products are without restriction those of merchantability or of fitness warranted to the original consumer purchaser to be free for use.
  • Page 2: Recommended Tools

    1. RECOMMENDED TOOLS Copper, IPS, CPVC, PEX (Crimp) & PEX (Cold Expansion) FIGURE 1 Level Safety Glasses Thread Seal Tape Measuring Tape Solder Drill Phillips Screwdriver Flathead Screwdriver Adjustable Wrench (IPS Only) (CPVC Only) (PEX Only) (PEX Only) (ProPress Only) Pipe Cutter Torch Drywall Saw...
  • Page 3 90 degree bend allowed. Failure to do so, or to substitute PEX, CPVC, or any other connection type or outlet accessory such as a hand or body-spray, other than the Symmons tub spout 77" provided, may result in excessive backpressure (1956mm) through the system, and compromise operation.
  • Page 4 4. DETERMINE WALL TYPE 4.1 T-176 Protective Shield 4.2 T-177 Valve Mounting Plate FIGURE 4.1 FIGURE 4.2 Without service stops With service stops 4.3 Drywall or Other Type Wall Protective shield (T-176) is required for drywall, FIGURE 4.3 shower supply plaster or other type walls with: 1/2"...
  • Page 5: Valve Body Installation

    5. VALVE BODY INSTALLATION 5.1 Stringer Mounts Stringer mounts are used to secure valve body wood blocking stringer mount to wood blocking for valve bodies without mounting bracket. (see FIGURE 5.1). For valve body installation with mounting bracket see STEPS 2.1 & 2.2. stringer mount wall stud FIGURE 5.1...
  • Page 6: Back To Back Installation

    6. BACK TO BACK INSTALLATION 6.1 Back to Back Wall Type To simplify piping on back to back FIGURE 6.1 5-1/2" installations use one standard valve (hot (140 mm) MIN. WALL on left, cold on right) and one reverse seat THICKNESS valve (hot on right, cold on left) as shown in FIGURE 6.1.
  • Page 7 7. VALVE BODY TEST CAP (162BODY, 162XBODY, 161XBODY) 7.1 Install Valve Body with Test Cap Test cap will come installed to valve to allow FIGURE 7 pressurization of system. Do not remove test cap from valve during wall construction, installation of valve or pressurization of system. WARNINGS: Do not expose valve with test cap to heat for longer than 2 minutes when soldering...
  • Page 8 8. SERVICE INSTRUCTIONS 8.1 Removing Flow Control Spindle Reference parts breakdown (see FIGURE 9.1). See trim manual for trim removal instructions. Shut off water supply to valve. Turn valve’s TA-10 flow control spindle to open position using trim handle. Remove trim handle and dome cover. Remove escutcheon plate by first removing escutcheon screws.
  • Page 9: Parts Breakdown

    9. PARTS BREAKDOWN FIGURE 9.1 ASSEMBLY T-12A COMMON PLANE VALVE BODY 262XBODY (PICTURED) 262BODY 261XBODY LIMIT STOP SCREW GASKET SEAT KIT TA-4 SMALL WASHER O-RING LARGE WASHER SPINDLE PACKING ASSEMBLY TA-10 PACKING NUT SEAT WASHER COLD STOP SPINDLE TA-9 SEAT ASSEMBLY WASHER T-52...
  • Page 10 9. PARTS BREAKDOWN FIGURE 9.2 VALVE BODY FITTING MODIFICATIONS (2x) (2x) (2X) COLD EXPANSION CPVC CRIMP RTSPEXCR RTSPEXCE RTSCPVC (2X) TEST PROPRESS RTSTC1 RTSPFIT MOUNTING BRACKET COMPONENTS (4X) BRACKET STRAPS RTS-077 (2X) VALVE TO BRACKET SCREWS RTS-078 BRACKET STRAPS & BRACKET RTS-076 (8X)
  • Page 11: Troubleshooting Chart

    10. TROUBLESHOOTING CHART PROBLEM CAUSE SOLUTION Valve will not pass water. Both hot and cold water supplies Turn on both supplies. Valve are not turned on. will not operate unless both hot and cold water pressure is on. Valve leaks when shut off. Hot and cold washers are worn Replace washers using TA-9 or foreign matter (dirt, chips) is...
  • Page 12 California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 ■ Phone: (800) 796-6667 Fax: (800) 961-9621 ■ symmons.com gethelp@symmons.com ■ Copyright © 2019 Symmons Industries, Inc. 100719 ZV-3247 REV B...
