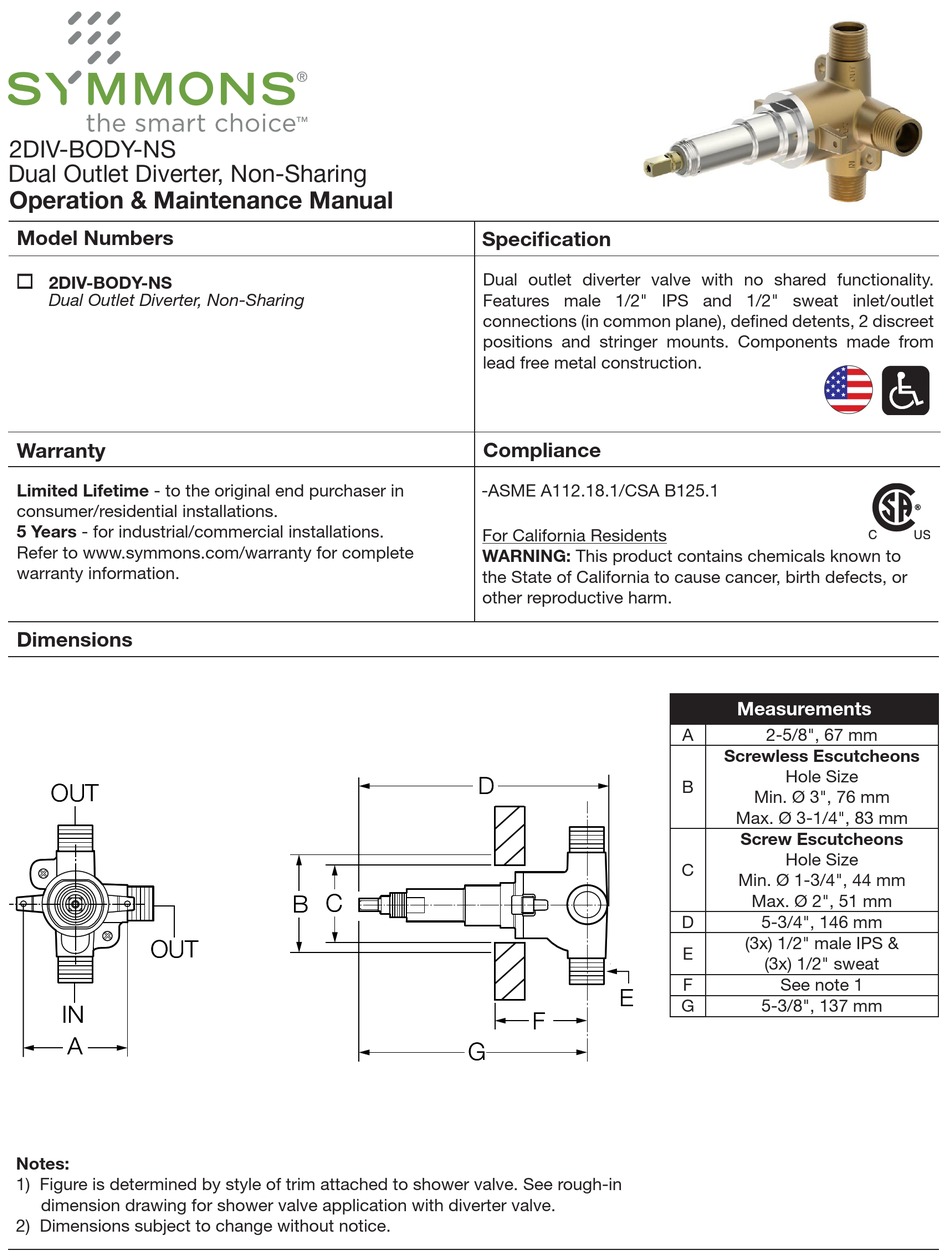

Symmons 2DIV-BODY-NS Operation & Maintenance Manual

2DIV-BODY-NS
Dual Outlet Diverter, Non-Sharing
Operation & Maintenance Manual

Model Numbers


2DIV-BODY-NS
Dual Outlet Diverter, Non-Sharing

Warranty

Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

Dimensions

OUT OUT
OUT OUT
IN IN
A A
Notes:
1) Figure is determined by style of trim attached to shower valve. See rough-in
dimension drawing for shower valve application with diverter valve.
2) Dimensions subject to change without notice.
C C
B B
G G

Specification

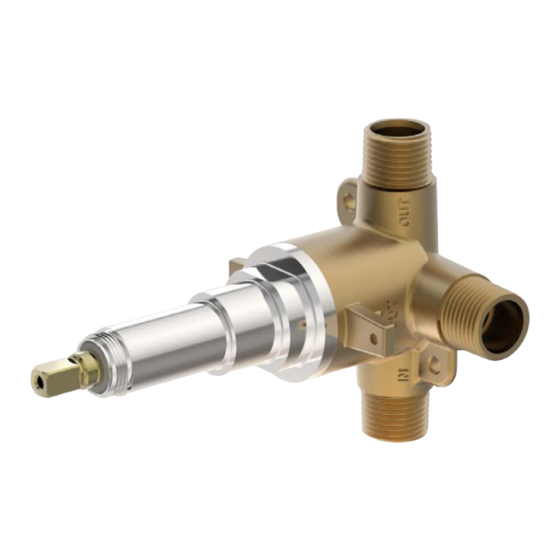

Dual outlet diverter valve with no shared functionality.
Features male 1/2" IPS and 1/2" sweat inlet/outlet
connections (in common plane), defined detents, 2 discreet
positions and stringer mounts. Components made from
lead free metal construction.

Compliance

-ASME A112.18.1/CSA B125.1
For California Residents
WARNING: This product contains chemicals known to
the State of California to cause cancer, birth defects, or
other reproductive harm.
D D
E E
F F
Measurements
A 2-5/8", 67 mm
Screwless Escutcheons
Hole Size
B
Min. Ø 3", 76 mm
Max. Ø 3-1/4", 83 mm
Screw Escutcheons
Hole Size
C
Min. Ø 1-3/4", 44 mm
Max. Ø 2", 51 mm
D 5-3/4", 146 mm
(3x) 1/2" male IPS &
E
(3x) 1/2" sweat
F See note 1
G 5-3/8", 137 mm
