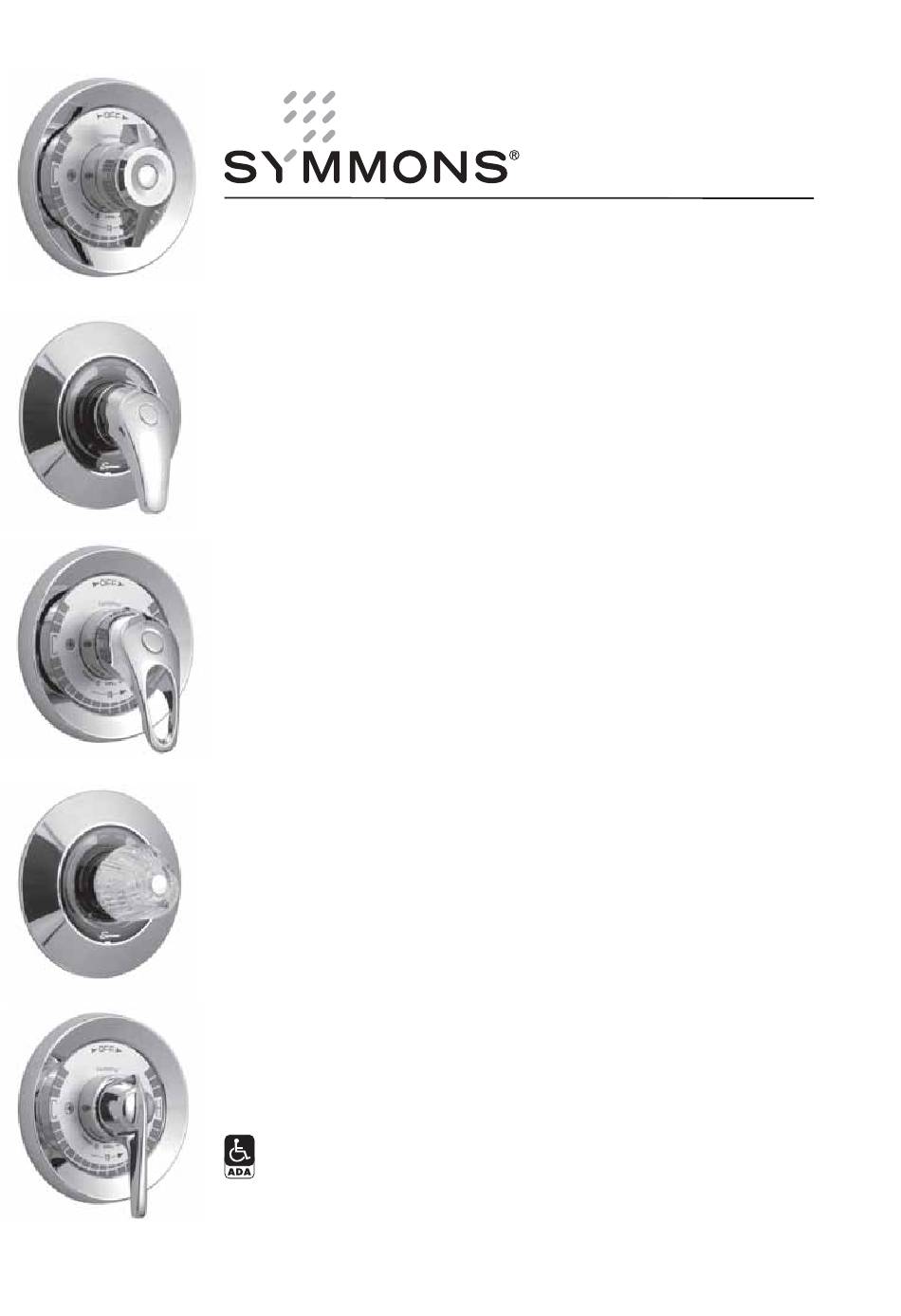

Symmons Temptrol II Installation, Operation & Service Instructions

BP and 2000 Series Pressure-Balancing Mixing Valve for Shower or Tub/Shower Application
INSTALLATION, OPERATION & SERVICE INSTRUCTIONS
Symmons valves and shower heads comply to all known standards, codes and
specifications: CSA B-125, ANSI A112.18.1M, ASSE 1016, EPA '92 etc.
Symmons shower heads are equipped with a 2.5 GPM (9.5 L/min) water and energy
saving flow restrictor.
LIFETIME LIMITED WARRANTY
Symmons warrants to the original consumer purchaser that any TEMPTROL® series* or SYMMETRIX®
product will be free of defects in material and workmanship during normal domestic use for the life of
your home. All other products and purchasers including industrial, commercial or business use are
warranted for a period of 5 years from the date of purchase. At our option, we will either have you send
the defective part or product prepaid to us for inspection, or we may elect to send you the replacement
part or product without investigation. A replacement for any defective part will be supplied FREE OF
CHARGE for installation by the purchaser. Defect or damage caused by the use of replacement parts
other than Symmons Genuine Replacement Parts will void this warranty. This warranty excludes product
damage due to installation error, product abuse, or product misuse whether performed by a contractor,
Service company or yourself.Symmons further warrants that any TEMPTROL or SYMMETRIX product will
be leak free and drip free during normal domestic use for the life of your home. If the product should
develop a leak or drip, Symmons will provide FREE OF CHARGE the parts necessary to return it to good
working condition.Proof of purchase (original sales receipt) and a copy of the warranty registration card
from the original consumer purchaser must accompany all warranty claims. This warranty is applicable
only to Symmons TEMPTROL or SYMMETRIX products purchased after July 1, 1998 and shall be effective
from the date of purchase as shown on the purchaser' s receipt.Damage to the chrome and/or other
decorative finishes on Symmons products may be a result of improper handling or abusive treatment.
Finishes should only be cleaned with a soft, damp cloth or sponge. Use of polish, abrasive cleaners,
solvents, or acid cleaners will damage the finish and void this warranty.There are no other express
warranties on this product and ALL WARRANTIES OF MERCHANTABILITY AND OTHER IMPLIED
WARRANTIES ARE LIMITED IN ACCORDANCE WITH APPLICABLE LAW. SYMMONS INDUSTRIES, INC.,
EXPRESSLY DISCLAIMS CONTINGENT LIABILITY AND CONSEQUENTIAL DAMAGE OF EVERY KIND. Since
some states do not allow limitations on how long an implied warranty lasts or an exclusion or limitation
of incidental or consequential damages the above limitation or exclusion may not be applicable. This
warranty gives specific legal rights. Other rights may vary from state to state.To obtain warranty service,
write to Symmons Industries, Inc., 31 Brooks Drive, Braintree, MA 02184-3804 or call our Customer
Service Department at 1-800-SYMMONS. If writing to us, please include proof of purchase, the model
number of the product with a brief description of the problem, your name, address and phone number.
*Temptrol series includes Allura®, Olde Braintree Brass®, Temptrol, Temptrol Deluxe and Temptrol II
shower and tub/shower systems.
IMPORTANT: After completion of installation step 4, follow these instructions to set
the Temptrol II Limit Stop Screw. This valve is equipped with a limit stop screw to be
used to limit valve handle from being turned to excessively hot water discharge tem-
peratures. To adjust, remove dome cover, open valve to maximum desired tempera-
ture and turn in limit stop screw until it seats.
WARNING: FAILURE TO ADJUST THE LIMIT STOP SCREW PROPERLY MAY RESULT
IN SERIOUS SCALDING.
WARNING: THIS SHOWER SYSTEM MAY NOT PROTECT THE USER FROM SCALD-
ING WHEN THERE IS A FAILURE OF OTHER TEMPERATURE CONTROLLING
DEVICES ELSEWHERE IN THE PLUMBING SYSTEM.
For ADA compliance (Americans with Disabilities Act) consult ADAAG or your state
regulations for proper product choice and mounting locations.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. SAVE THIS MANUAL FOR FUTURE REFERENCE.

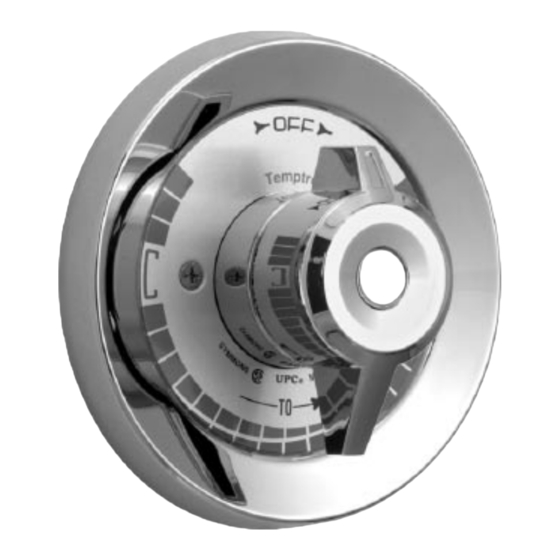

Temptrol II
®
