Winegard CARRYOUT G3 Quick Start Manual

1) Set the Switches
Settings are factory pre-set for DIRECTV
any other programming provider set according
to the diagram:
Power Inserter switches
2) Install the Handle
With "WINEGARD" on the handle facing
upwards, align the two holes in the handle
with the two holes in the base. Thread the
two provided screws from hardware bag
through the two aligned holes in the bottom
of the handle. Tighten the two screws using a
Phillips screwdriver.
3) Choose a Location
Choose a location with a clear, unobstructed
view of the southern sky. Avoid obstructions
such as trees, hills, vehicles, or buildings —
these can block the signal from the satellite.
Optional
Hook-up
For FAQs, troubleshooting, videos, and product information visit www.winegard.com/carryout
Winegard and Carryout are registered trademarks of Winegard Co. DISH is a registered trademark of DISH Network L.L.C. DIRECTV is a registered trademark of DIRECTV, LLC.
Bell TV is a trademark of Bell Canada, Inc. | Winegard Company, 2736 Mt. Pleasant St., Burlington, IA 52601 | Printed in U.S.A. © 2018 Winegard Co. Rev0 2/18 2452401
. For
®
DIRECTV
®
1 2 3 4 5 6 7 8
DISH
®
1 2 3 4 5 6 7 8
Bell TV
1 2 3 4 5 6 7 8
Do not overtighten.
Hook up a second receiver and watch
different channels on two TVs!
Coax Coax
Power
Inserter
Email help@winegard.com or call 1-800-788-4417
Quick Start Guide
GM-9000
Manuel disponible en français au
www.winegard/support

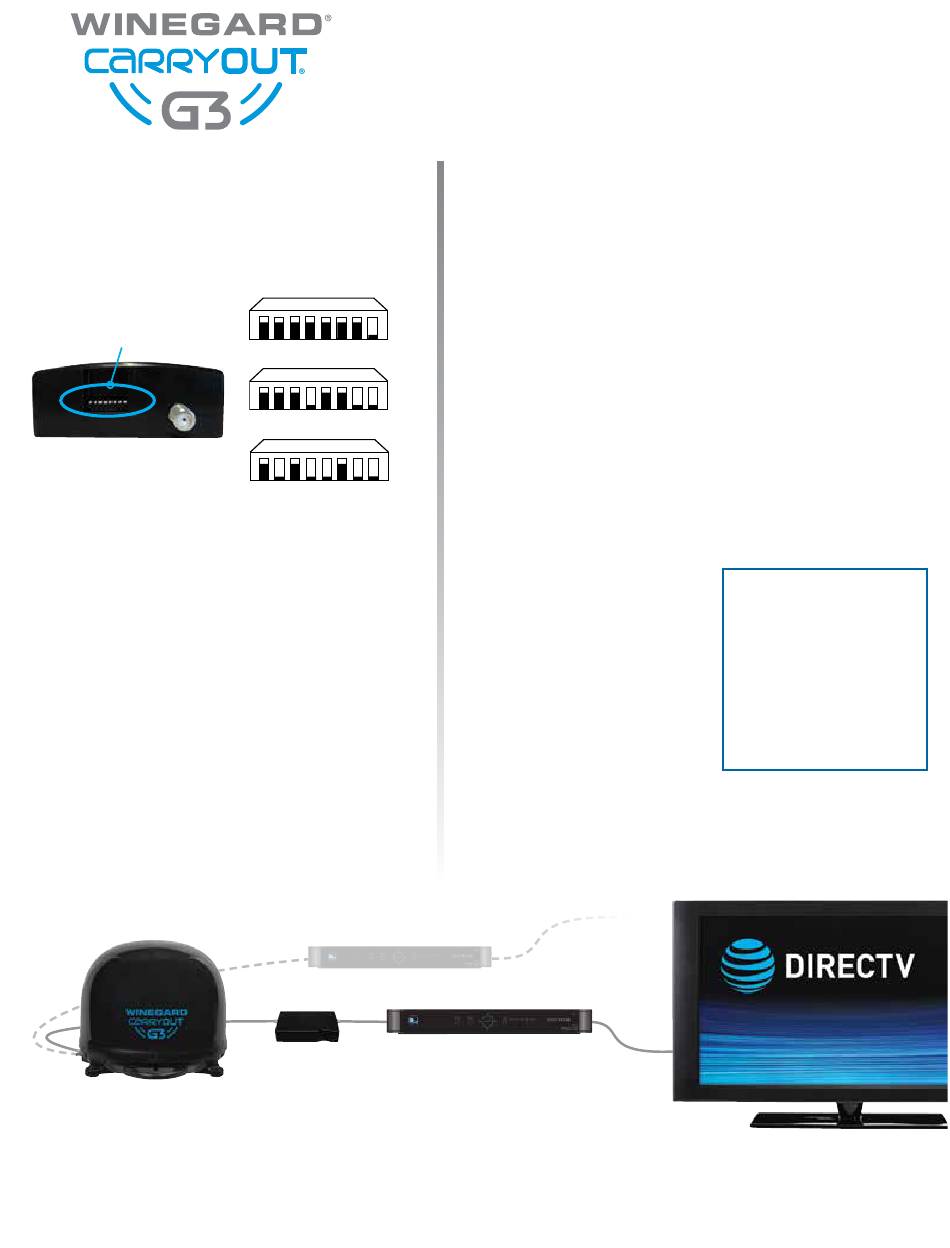

4) Wire the Antenna
With the power button on the power inserter in the OFF
position (not pressed in), connect the primary port of
the Carryout G3 to the ANTENNA port on the power
inserter with the 25' coaxial cable. With your fingers,
twist the cable on, and tighten a quarter turn more
with a wrench.
Connect the "SAT IN" port of your satellite receiver to
the "RECEIVER" port of the power inserter with the 3'
coaxial cable. With your fingers, twist the cable on, and
tighten a quarter turn more with a wrench.
Do not overtighten.
5) Power On and Scan
Plug the power adapter into 110/120VAC outlet and
connect to the power port on the power inserter (next
to RECEIVER coax port).
Press the power button on
the power inserter, wait
approximately 3-5 minutes
to scan. When the antenna
is completely quiet, set
up receiver for desired
programming.
6) Watch
With the program guide downloaded,
you are ready to watch TV!
required,
sold separately
Receiver
required, sold separately
|
GM-9035
Do not overtighten.
Refer to manual for setup
instructions or check out online
receiver setup guides for your
antenna at
receivers/setupguide.php.
For more information on receiver
compatibility and programming,
visit www.winegard.com/
receivers.
HDMI
www.winegard.com/
