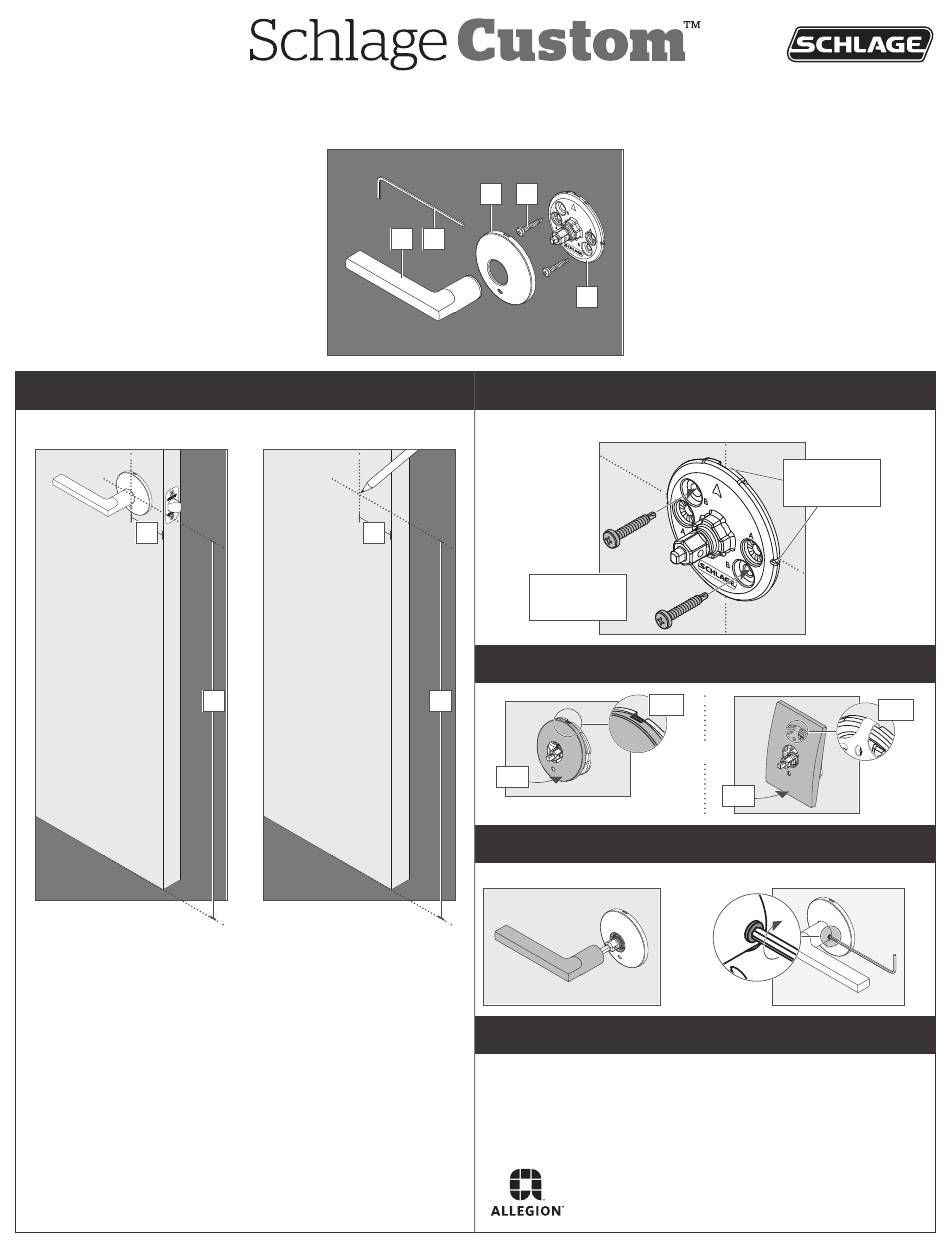

Schlage Custom FC170 Installation Instructions

*P518-150*
P518-150
Model FC170/172, Dummy
a. Lever
b. Trim
c. Chassis
d. Chassis screws
e. Allen wrench (Do not discard!)
1
Determine the location.
1a Measure the location of other
knobs/levers in the house.
*
1b Mark these measurements on the
dummy door.
*
**
b d
a e
2
Install the chassis.
Screws are self-drilling. Do not pre-drill.
Install into holes
marked B.
3
Install the trim.
**
click
4
Install the knob/lever.
4a Push knob/lever into place.
5
Repeat all steps for other side of door if necessary.
Installation Instructions
c
hook
OR
click
4b Then tighten set screw.
Use notches to
align to marks.
hook
© Allegion 2017
Printed in U.S.A.
P518-150 Rev. 08/17-a
