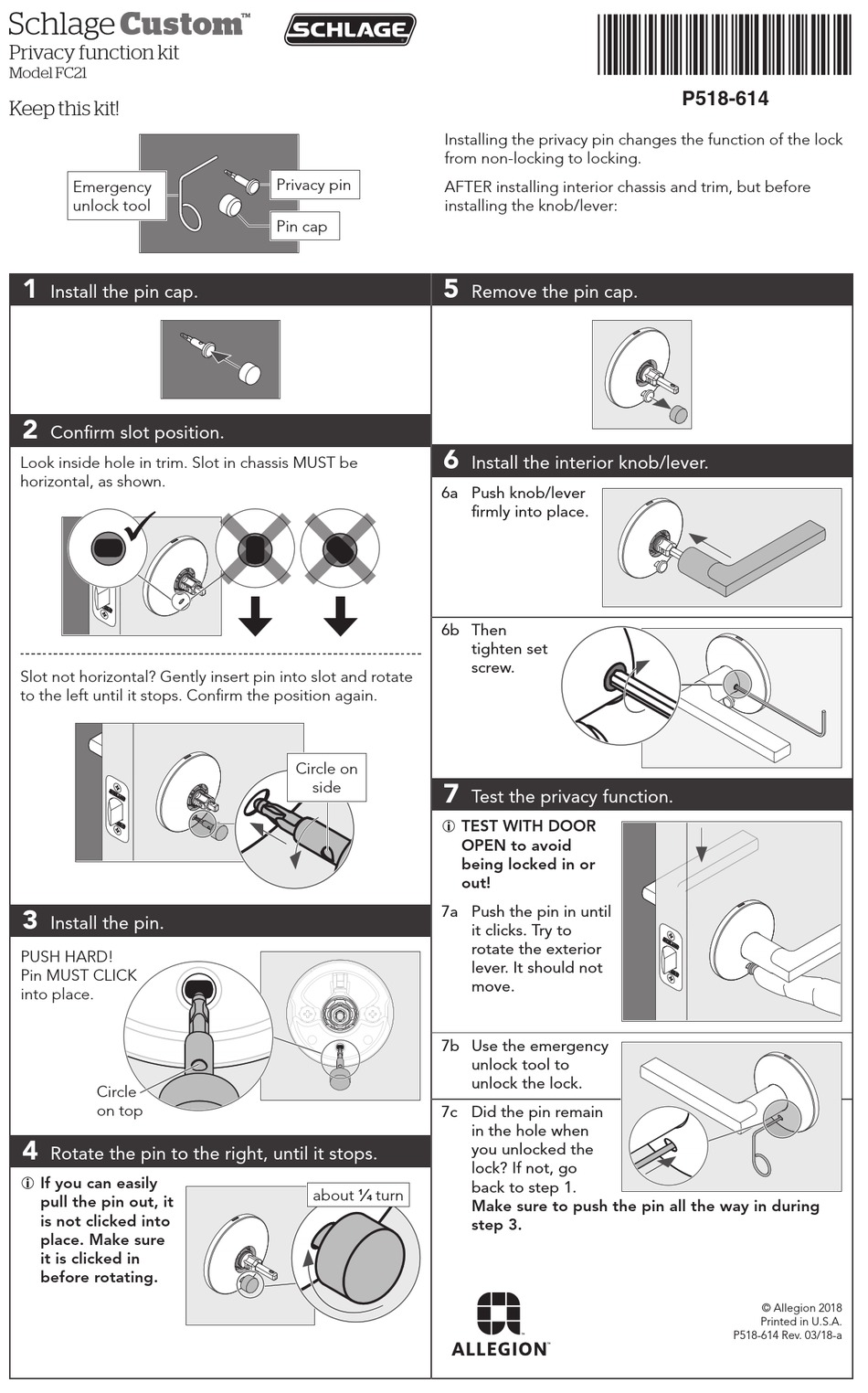

Schlage Custom FC21 Installation Instructions

Privacy function kit
Model FC21
Keep this kit!
Emergency
unlock tool
1
Install the pin cap.
2
Confirm slot position.
Look inside hole in trim. Slot in chassis MUST be
horizontal, as shown.
Slot not horizontal? Gently insert pin into slot and rotate
to the left until it stops. Confirm the position again.
3
Install the pin.
PUSH HARD!
Pin MUST CLICK
into place.
Circle
on top
4
Rotate the pin to the right, until it stops.
L If you can easily
pull the pin out, it
is not clicked into
place. Make sure
it is clicked in
before rotating.
Privacy pin
Pin cap
Circle on
side
about 1/4 turn
*P518-614*
Installing the privacy pin changes the function of the lock
from non-locking to locking.
AFTER installing interior chassis and trim, but before
installing the knob/lever:
5
Remove the pin cap.
6
Install the interior knob/lever.
6a Push knob/lever
firmly into place.
6b Then
tighten set
screw.
7
Test the privacy function.
L TEST WITH DOOR
OPEN to avoid
being locked in or
out!
7a Push the pin in until
it clicks. Try to
rotate the exterior
lever. It should not
move.
7b Use the emergency
unlock tool to
unlock the lock.
7c Did the pin remain
in the hole when
you unlocked the
lock? If not, go
back to step 1.
Make sure to push the pin all the way in during
step 3.
P518-614
© Allegion 2018
Printed in U.S.A.
P518-614 Rev. 03/18-a
