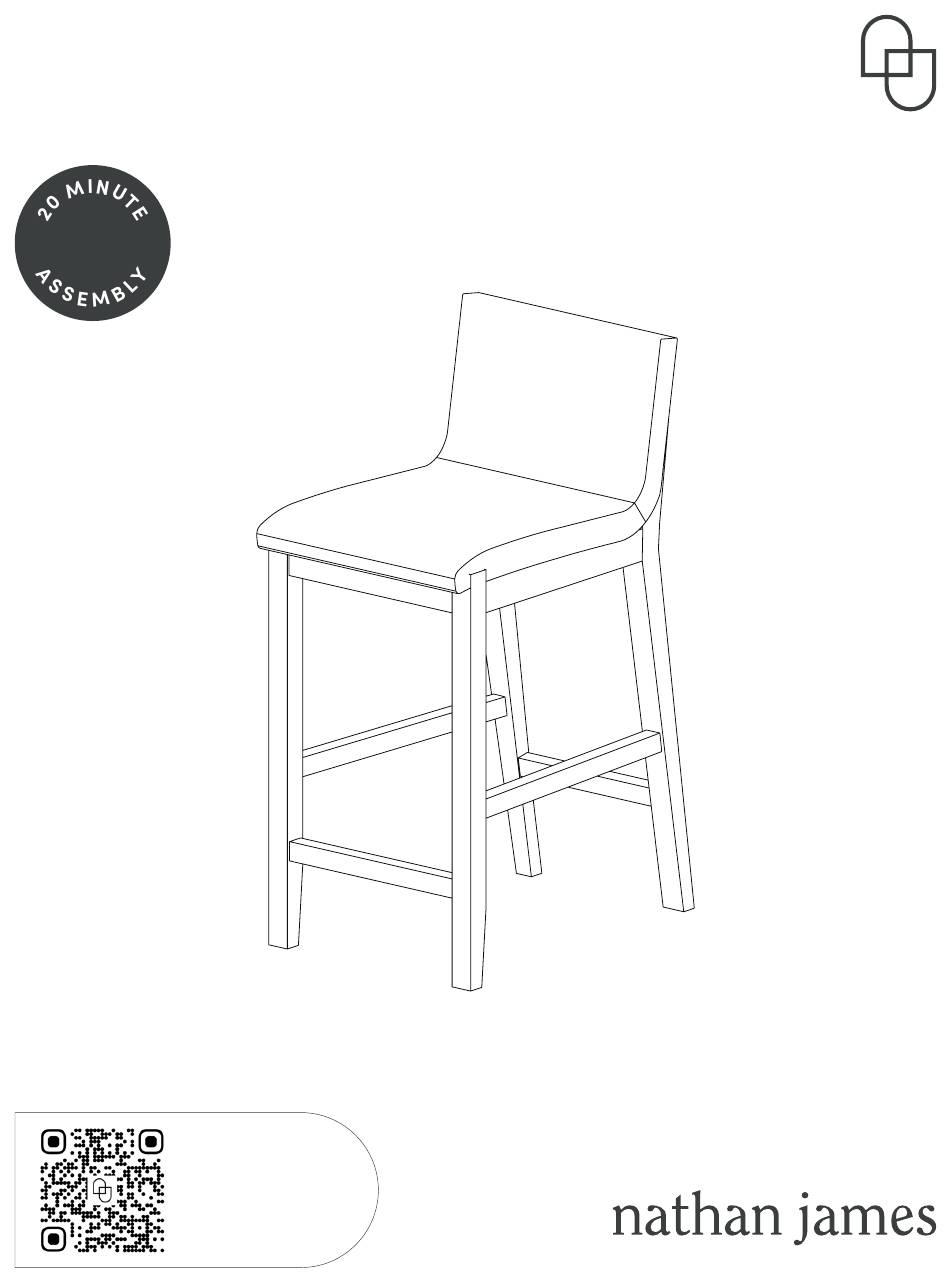

- Page 1 Let’s build the Gracie Bar Stool SKU 24303 Scan me! Inspiration Digital Instructions Free Lifetime Warranty 23-0414...
-
Page 2: What's Included
Ok, let’s What’s included get rolling Description Seat Cushion Chair Back Sub-Assembly This should be easy, just follow our instructions and you will be back to Netflix in no time. Frame Seat D Left Front Leg Estimated time for assembly Right Front Leg 20:00 Front Footrest... - Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools.
- Page 4 Step 1 It’s as easy as it looks! Secure the Seat Cushion (A) to the Seat Frame (C) using the ¼ x 2 ⅜ inch Hex Button Head Bolts (1). Tighten using the provided Allen Key (4). We told you this was going to be easy! Do NOT overtighten hardware.
- Page 5 Step 2 Now take a moment to match the sticker on the bottom of the Chair Back (B) with the sticker on the corner block. Attach the Chair Back (B) to the Frame Seat (C) using the ¼ x 2 ⅜ inch Hex Button Head Bolts (1).
- Page 6 Step 3 Now let’s secure those Legs (D)(E) in place! Consider this your workout of the day. Do NOT overtighten hardware. Tighten only to 75% for now.
- Page 7 Step 4 Match the sticker on the bottom of the Front Chair Legs (D)(E) with the sticker on the corner blocks before tightening hardware. Do NOT overtighten hardware. Tighten only to 75% for now. Important Note: Screws are installed through the footrest and stretchers at an angle.
- Page 8 Step 5 Now flip the stool over on a flat surface and make sure all legs are touching before tightening everything to 100%. 100%...
- Page 9 Step 6 You made it to the last step! Now insert the Wood Plugs (6) into the holes in the back of the stool. Time to order some pizza and enjoy your new stool!
- Page 10 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
-
Page 11: Proper Use
Any modifications will present the risk of creating significant safety Nathan James and its parent companies cannot issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product. - Page 12 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
