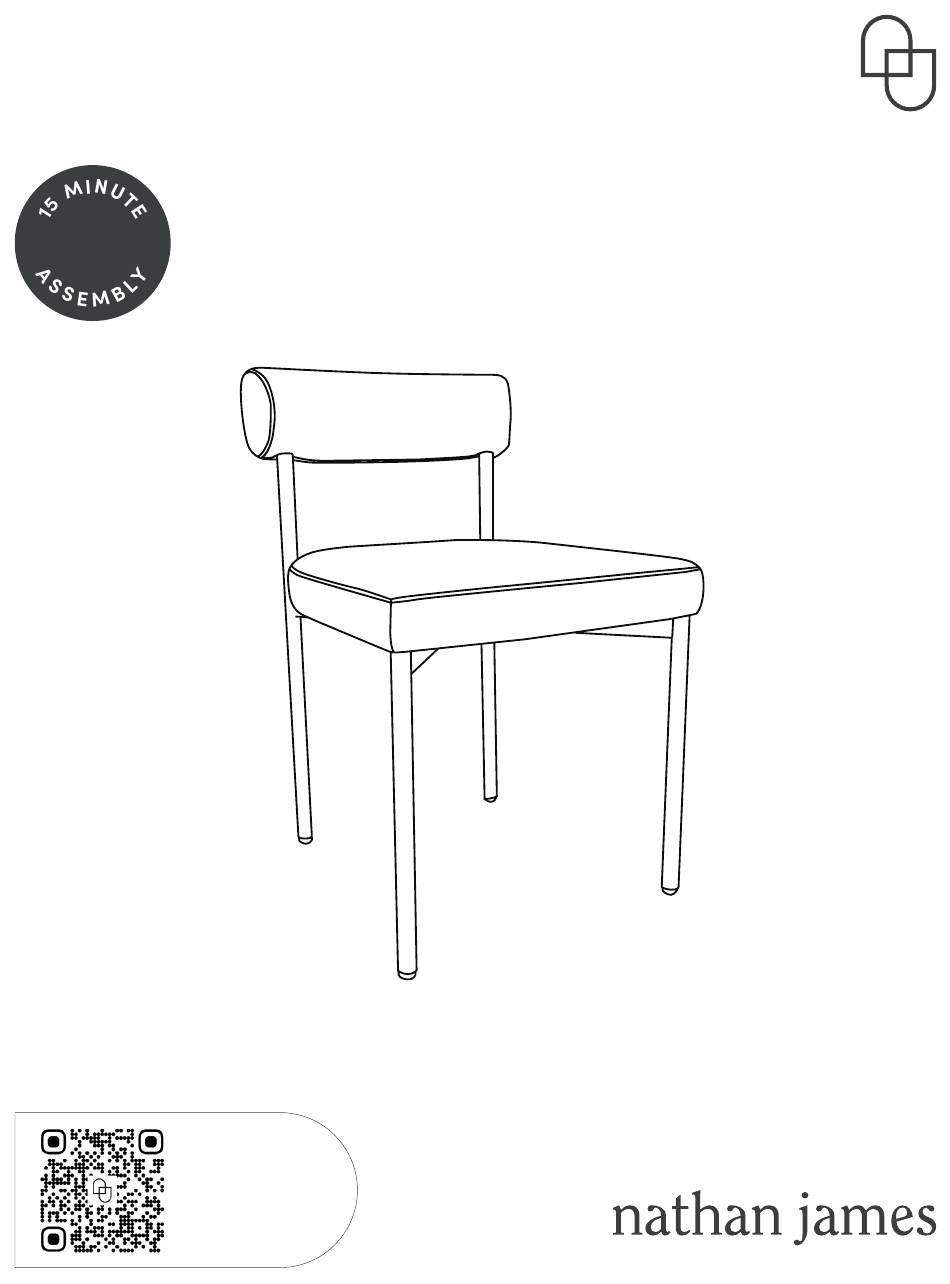

- Page 1 Let’s build the Dahlia Dining Chair SKU 24211 Scan me! Free Lifetime Warranty 23-1122-CN...
-
Page 2: What's Included
Ok, let’s What’s included get rolling Description Left Frame Leg This should be easy, just follow Right Frame Leg our instructions and you will be back to Netflix in no time. Seat Estimated time for assembly D Back Rest 15:00 M6*45MM Bolt What you need M6*8MM Bolt... - Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools.
- Page 4 Step 1 The moment you’ve been waiting for - let’s begin! Take the Right Frame Leg (B) and position it on top of the Left Frame Leg (A). Align the notches on both pieces so that they fit together. *Note: It is recommended to wait until the final step before fully tightening the bolts.
- Page 5 Step 2 Next up, take the assembled frame from step one and place it on top of the Seat (C). Insert the M6*45MM Bolt (1) through the Spring Washer (5) and Washer (4). Align the holes on the frame and components. Use the Large Allen key (6) to partially tighten the bolt by turning it...
- Page 6 Step 4 Let’s bring this creation to life! Slide the Back Rest (D) into the Seat (C). Then, use the M6*8MM Bolt (2) along with the small Allen Key (7) to secure them together on both sides.
- Page 7 Step 5 Give your chair one final touch! It’s time to tighten all the bolts and ensure everything is securely in place. Let’s make it rock-solid and ready to go! Once ALL bolts are aligned, go ahead and tighten them all to 100% (Including those from Step 1) Wobbly or un-level ? Adjust feet until stable!
- Page 8 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
-
Page 9: Proper Use
Any modifications will present the risk of creating significant safety Nathan James and its parent companies cannot issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product. - Page 10 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
