Summary of Contents for NATHAN JAMES Gracie 27801

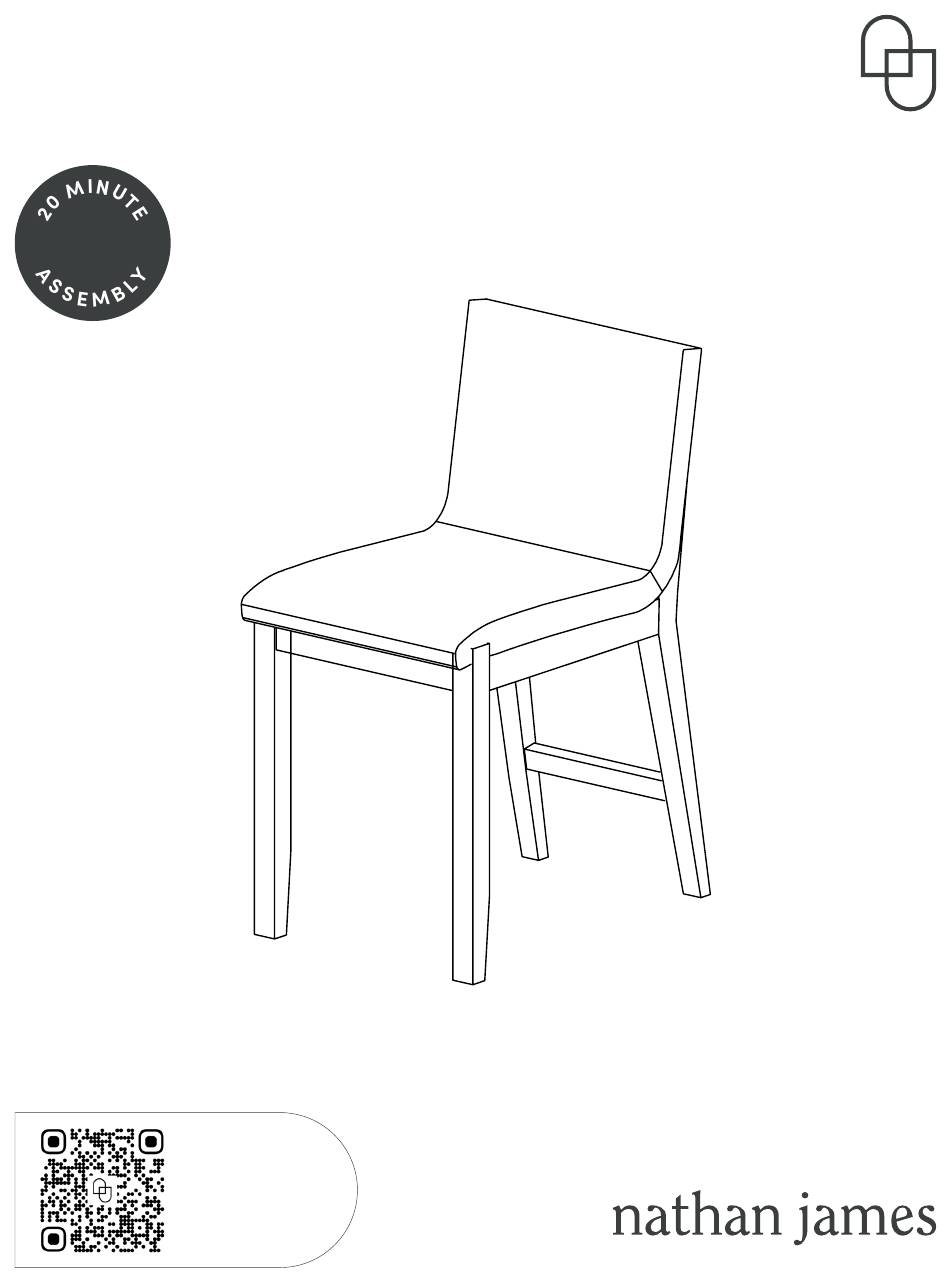

- Page 1 Let’s build the Gracie Dining Chair SKU 27801 Scan me! Free Lifetime Warranty 23-0605-VN...
- Page 2 Ok, let’s What’s included get rolling Description Seat Cushion This should be easy, just follow Chair Back Sub-Assembly our instructions and you will be back to Netflix in no time. Seat Frame D Front Leg (Left) Estimated time for assembly 20:00 Front Leg (Right) 1/4 x 2 3/8”...
- Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools.
- Page 4 Step 1 Let’s get this thing fired up! Secure the L Bracket (6) to Seat Cushion (A) with 1/4 x 3/4” Hex Button Head Bolts (5). Tighten with the Allen Key (7). Step 2 It’s as easy as it looks! Secure the Seat Cushion (A) to the Seat Frame (C) using the 1/4 x 2 3/8”...
- Page 5 Step 3 You’re within minutes of pressing play on Netflix! Secure the L Brackets (6) to the Chair Back Sub-Assembly (B) with the 1/4 x 3/4” Hex Button Head Bolts (5). Tighten with the Allen Key (7).
- Page 6 Step 4 Now take a moment to match the sticker on the bottom of the Chair Back (B) with the sticker on the corner block. Attach the Chair Back (B) to the Frame Seat (C) using the 1/4 x 2 3/8”...
- Page 7 Step 5 You know what they say, never skip leg day! Let’s secure those Legs (D)(E) in place. Consider this your workout of the day. Tighten only to 75% for now.
- Page 8 Step 6 Now flip the stool over on a flat surface and make sure all of the legs are touching the ground before tightening everything to 100%. We told you this was going to be easy! 100%...
- Page 9 Step 7 You made it to the last step! Insert the Wood Plugs (8) into the holes in the back of the stool. Last but not least, time to order a pizza and enjoy your new chair!
- Page 10 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
-
Page 11: Proper Use
Any modifications will present the risk of creating significant safety Nathan James and its parent companies cannot issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product. - Page 12 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
