Summary of Contents for Jura IMPRESSA S90
- Page 1 IMPRESSA S90/S95/S9 IMPRESSA X90/X95 IMPRESSA 601 Instructions for use 12/2001...
- Page 2 Jura Impressa S90/S95/S9 – X90/X95 – 601 English ......................
-
Page 3: Placing/Replacing Of Filter
Fig. 1 Fig. 4 Fig. 5 Fig. 8 Fig. 2 Fig. 6 Fig. 9 Fig. 3 Fig. 7 Fig. 10... -

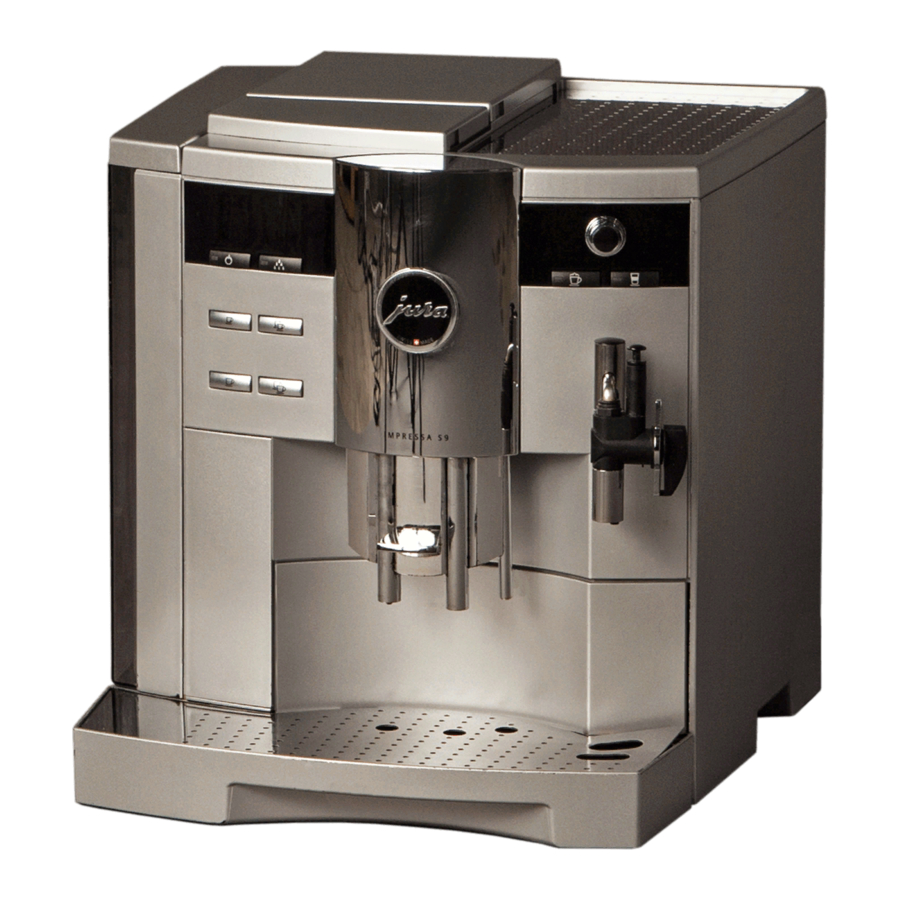

Page 4: Product View
14 15... -
Page 5: Programming Keys
Instructions for use 1 Drip tray / residual water container 2 Drip tray cover 3 Cover for programming keys 4 Coffee key for 2 large cups 5 Coffee key for 1 large cup 6 Coffee key for 2 small cups 7 Coffee key for 1 small cup 8 Key for special coffee 9 ON/OFF switch... -
Page 6: Table Of Contents
3.4 Adjusting grinder ...page 8 4. Preparing machine ...page 8 4.1 Fill system with water ...page 8 4.2 Cup illumination (Impressa S9/601) ...page 8 5. Rinsing the machine ...page 9 6. Adjusting for water hardness ...page 9 7. Use of Claris filter cartridges...page 9 7.1 Placing filter ...page 9... -
Page 7: Description
Important information for the user Thank you for choosing this Jura product. Please study these instructions carefully before using your new machine and keep them in a safe place for easy reference in the future. Should you require further information or should particular pro- blems occur that are not dealt with in these operating instructions in sufficient detail for you, then please ask your local dealer for the information you require or contact Jura Elektroapparate AG... -
Page 8: Check Before Use
RINSE UNIT Place a container under the coffee-spout (15) and press rinsing UNIT RINSING COFFEE READY 4.2 Cup illumination (Impressa S9/601) The cup illumination puts your coffee in a good light, making it a treat for the eyes. . The... -
Page 9: Rinsing The Machine
When you switch on the machine or press any key, the cup illumi- nation is activated for 3 minutes. To switch on the cup illuminati- on, with the machine switched off, press any key. 5. Rinsing the machine RINSE UNIT Place an empty cup under the coffee-spout (15). -
Page 10: Replacing Of Filter
Pull down cartridge mounting, until it engages audibly. Fill water tank with cold, fresh tap-water and replace it. Switch the machine on by pressing key Open front cover (3) and press key until you hear an acoustic signal. PRESS KEY / POWDER QUANTITY Press key several times until the following message appears: FILTER NO... -
Page 11: Drawing Off Powder Coffee
8.1 Drawing off powder coffee Open cover (3) Press selector key for pre-ground powder coffee FILL POWDER Now put 1 or 2 level measuring spoons of pre-ground coffee into the pre-ground powder funnel (14). Put 1, respectively 2 cups under the coffee-spout (15) and press the required key. -
Page 12: Drawing Off Hot Milk Using The Auto-Cappuccinatore S9
With the flow-adjustment you can set the optimum frothing. Turn the handle slightly to the right or to the left until you obtain the required result. 11.3 Drawing off hot milk using the Auto-Cappuccinatore S9 The Auto-Cappuccinatore of the S9 can be used to draw off hot milk. -
Page 13: Programming Powder Quantity
13.1 Programming powder quantity Switch the machine on by pressing ON/OFF key Press key until you can hear an acoustic signal. POWDER QUANTITY / SELECT KEY Now press the key that you want to programme. Use the key for 1 cup only. The corresponding quantity for 2 cups is adjusted automatically by the machine after programming is finished. -
Page 14: Programming Filter
The required portion of tea-water is programmed now. By pressing the button, you can select the next phase, or press the button in order to leave the programming. 13.6 Programming Filter Please read chapter 7.1 “Placing filter“. 13.7 Programming water hardness (only with setting Filter no) HARDNESS LEVEL 3 Press key... -
Page 15: Programming Automatic Switch On Time
13.10 Programming automatic switch on time A programming of the timer clock is necessary if an automatic switch on is needed. UNIT ON —.— Press key By briefly pressing key you can set the hours and then confirm by pressing key By briefly pressing key you can set the minutes and then confirm by pressing key... -
Page 16: Empty Grounds Container
14.2 Empty grounds container Coffee grounds are collected in the grounds container. EMPTY GROUNDS If this message shows on the display no more coffee can be drawn off. It is necessary to empty the grounds container. Remove drip tray carefully as there is water in it. Do not disconnect the machine from power socket while you empty grounds. -
Page 17: General Cleaning Instructions
14.9 General cleaning instructions Never use abrasive articles or corrosive chemicals to clean your machine. Wipe down the casing inside and out using a soft, damp cloth. Clean the pivoting nozzle after every use. After warming milk, draw off some hot water to clean the pivoting nozzle inside. - Page 18 Run the decalcifying program only after the machine has been switched off for at least 5 hours and has cooled down completely. The running decalcifying program must not be interrupted. If using acidic decalcifying agents be sure to immediately re- move any splashes and drops from delicate surfaces, especi- ally natural stone and wooden surfaces, or take correspond- ing precautions.
-
Page 19: Disposal
17. Disposal For correct disposal, you should return your coffee machine to your dealer, Jura service centre or Jura Elektroapparate AG. 18. Tips for a perfect coffee Height adjustable coffee-spout You can adjust the height of the coffee-spout to the size of your cups. -
Page 20: Messages
19. Messages Cause FILL WATER Water tank is empty Water level indicator in tank is jammed Tank is calcified, water level indicator is stuck FILL BEANS Bean container is empty Message still displayed, although beans filled A foreign object is stuck in the grinder EMPTY GROUNDS Coffee grounds container is full Message still displayed although grounds... -
Page 21: Problems
Cause CLEAN UNIT You have drawn off coffee 220 times or run the rinsing program 180 times Message still displayed, although machine cleaned UNIT CALCED The espresso/coffee machine sector needs decalcifying Message still displayed, although machine decalcified FAULT 2 Temperature too low FAULT 8 Initialisation problem 20. -
Page 22: Legal Information
Problem Cause Not enough froth while – Unsuitable milk-type frothing up milk – Frothing nozzle blocked – Clean Auto-Cappuccino If the above mentioned problems and/or messages still persist, please contact your dealer or get in touch directly with Jura Elektroapparate 21.
