I N S TA L L AT IO N IN S TR U CTI O NS
(NOTE: FOR INTEGRATED PANEL PREPARATION INSTRUCTIONS REFER TO SUPPLIED SHEET)

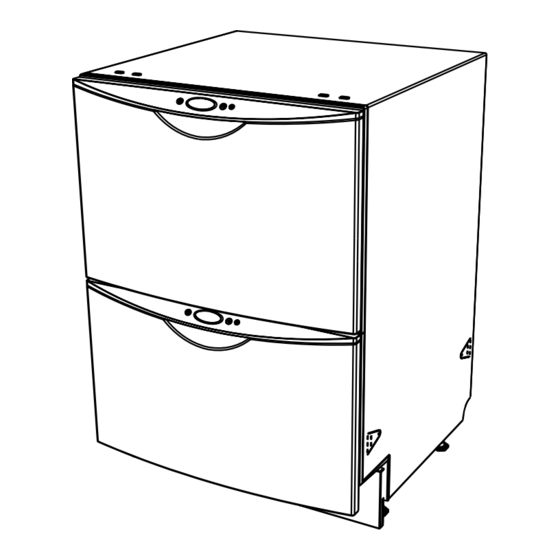

DOUBLE DD603 MODELS
DD603 PREFINISHED (shown left)
DD603 FLAT DOOR (not shown)
DD603I INTEGRATED (shown right)
NOTE TO THE INSTALLER
1. Read these instructions completely and carefully.
2. Installation of this DishDrawer
mechanical and electrical skills.
3. Be sure to leave these Instructions with the Customer.
4. At the completion of the DishDrawer
Installer must perform Final Check List as per Section 12
of these Installation Instructions.
5. Remove all packaging materials supplied with the
DishDrawer .
®
6. This dishwasher is manufactured for indoor use only.
NOTE TO THE CUSTOMER
Keep these Installation Instructions with your User Guide
for future reference. The DishDrawer
anchored before it is operated.
requires basic
®
installation, the
®
must be securely
®
R
SINGLE DS603 MODELS
DS603 PREFINISHED (shown left)
DS603 FLAT DOOR (not shown)
DS603I INTEGRATED (shown right)
WARNING!
Before installing the DishDrawer® , remove the house fuse or open
the circuit breaker. Ensure all water connections are turned OFF. It is
the responsibility of the plumber and electrician to ensure that each
installation complies with all Codes and Regulations.
Important!
These instructions must be followed precisely to ensure correct
venting and operation of the DishDrawer® . In the event of a fault
related to the incorrect installation, the installer will be liable for any
repairs.
Important!
The DishDrawer® MUST be installed to allow for future removal
from the enclosure if service is required.
Important!
Improper installation is not covered under the Warranty.
Important!
If the DishDrawer® is to be relocated from one installation to
another it must be kept upright to avoid damage from water spillage.
US CA
part number 526607 N
05/2005
(page 1 of 12)
