curt 11557 Manual

11557
3/10/2010
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY 18050 STABILIZING STRAPS.
** FAILURE TO PROPERLY SUPPORT NON-TRAILER LOADS WILL VOID PRODUCT WARRANTY**
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
DRILLED HOLE (ALL)
3
4
HITCH WEIGHT: 10 LBS.
INSTALL TIME
PROFESSIONAL: 30 MINUTES
NOVICE (DIY): 60 MINUTES
INSTALL NOTES:
- DRILLING REQUIRED
- FACIA TRIMMING MAYBE REQUIRED
- SILICONE SEAL HARDWARE
INSTALLATION STEPS
1. Remove the interior panel and contents at the vary rear of the vehicle that gives access to the tail light
assemblies.

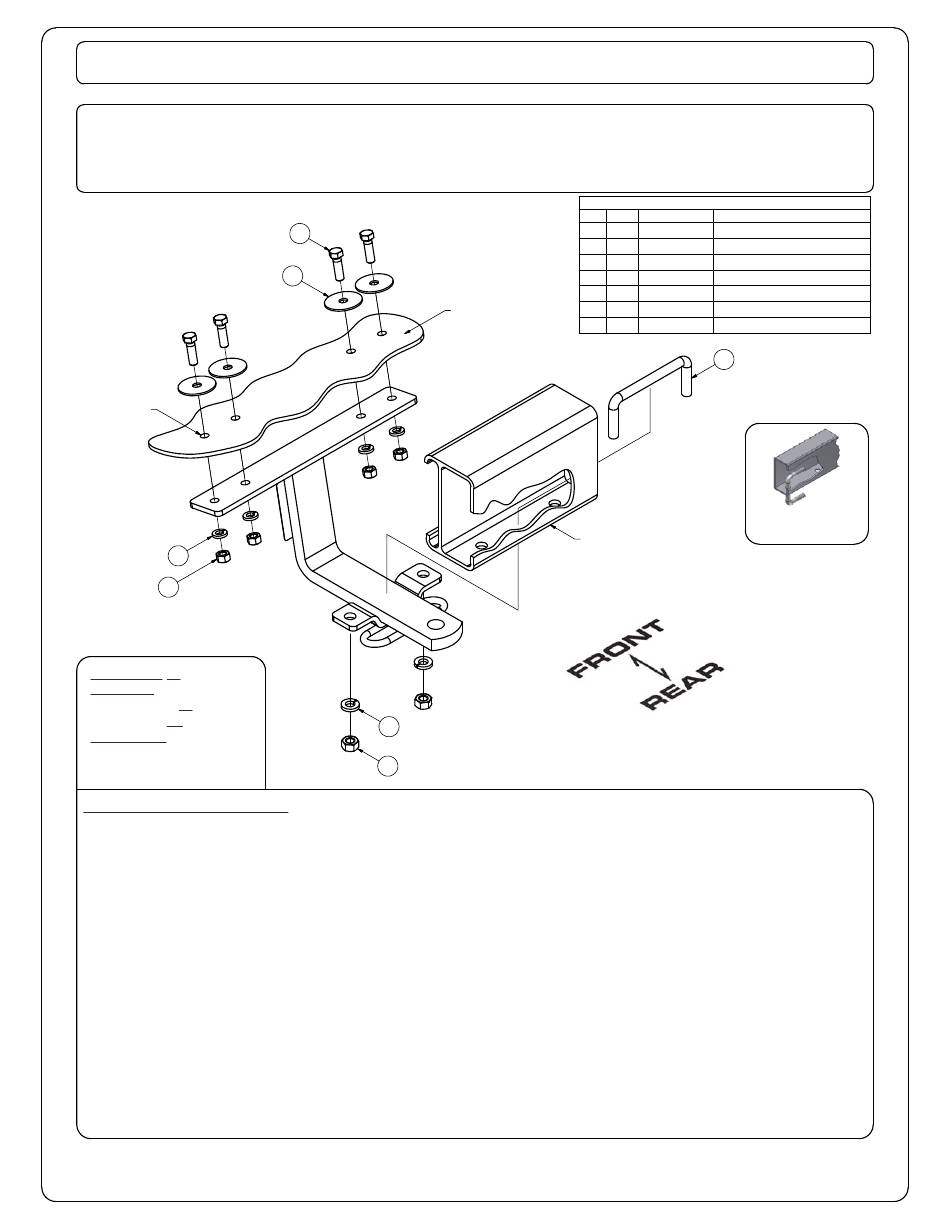

2. Hold the hitch in place against the underside of the floor and the rear bumper as shown, centered and square
with the vehicle. Remove any material from the bumper that prevents the hitch tongue from fitting flush with
the metal bumper. Using the hitch as a template, mark and drill the underside of the trunk floor (4) places, for
3/8" fasteners and the bumper beam (2) places 7/16" fasteners.
3. Carefully place hitch onto u-bolt and fasten loosely with lock washers and nuts. Fasten the bolts for the trunk
floor using fender washers inside the trunk.
4. Torque all 3/8" fasteners to 30 lb-ft, and all 7/16" fasteners to 50 lb-ft.
5. Use silicone sealant to seal hardware installed through trunk floor.
6. Reinstall trunk contents.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
217262
79-83 DATSUN 280ZX
1
2
TRUNK FLOOR
6
7
1,500 LBS. TRAILER WEIGHT &
1-800-798-0813
ITEM QTY PART NUMBER
1 4 3/8 - 16 x 1 1/4
2 4 3/8"
3 4 3/8"
4 4 3/8 - 16
5
1 U-BOLT
6 2 7/16
7 2 7/16-14
BUMPER BEAM
150 LBS. TONGUE WEIGHT.
Parts List
DESCRIPTION
HEX BOLT
FENDER WASHER
LOCK WASHER
HEX NUT
7/16-14 x 4.75 x 2.25 SQ. U-BOLT
HELICAL LOCK WASHER
HEX NUT
5
U-BOLT
INSTALLATION
