curt 11749 Manual

11749 / 247314
5/27/2009
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
ITEM QTY PART NUMBER
1 4 7/16-14 x 1 1/4
2 4 7/16
3 4 7_16-14 TAB NUT
DRIVER SIDE
FRAME RAIL EXTENSION
HITCH WEIGHT: 17 LBS.
INSTALL TIME: 30 MINUTES
INSTALL NOTES:
DRILLING REQUIRED
INSTALLATION STEPS

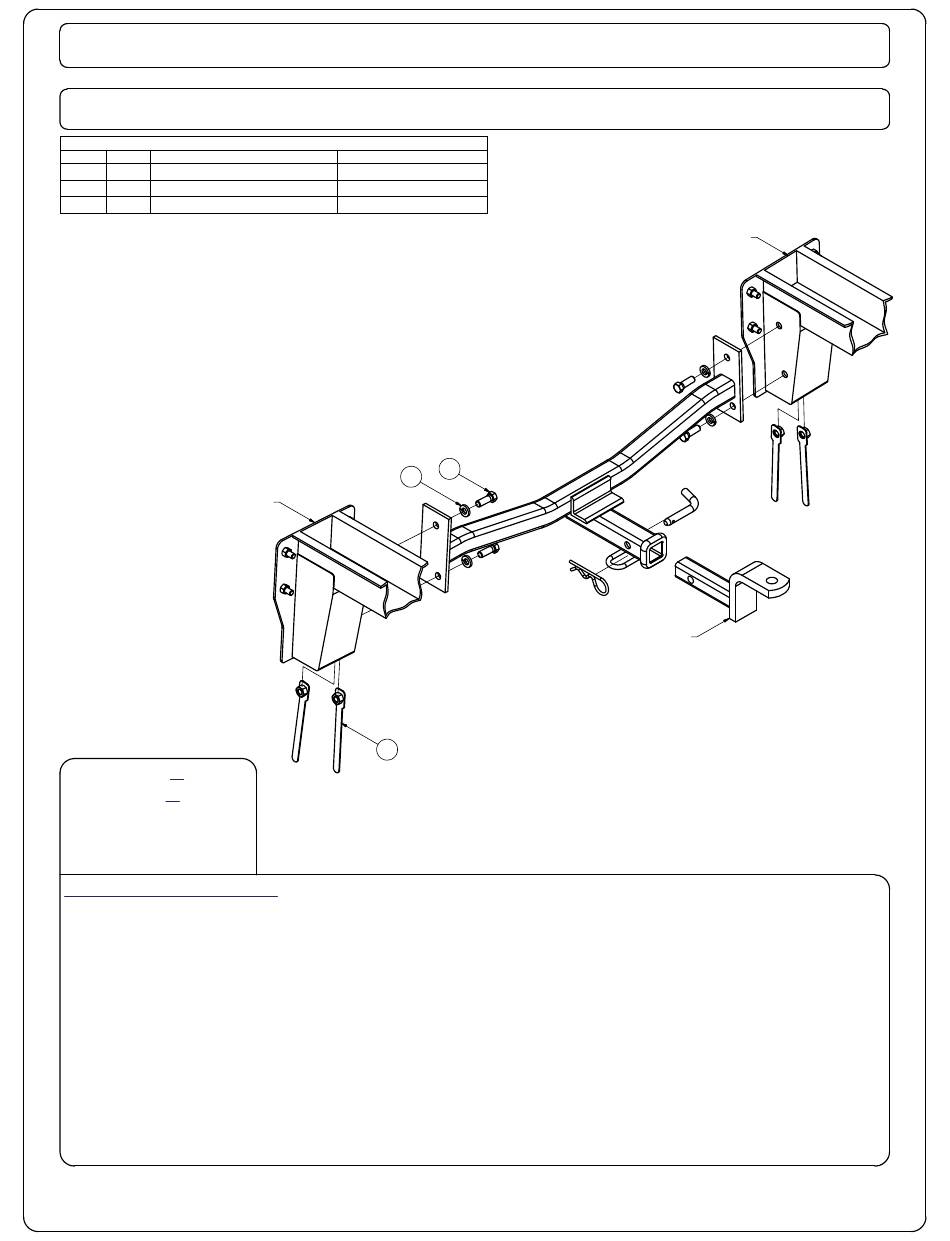

1) This hitch mounts to the inside surface of the left and right frame rail extensions.
2) Position the hitch up between the frame rail extensions, with the hitch plates as far rearward as possible and
flush at the bottom surface of the frame rail extensions. Using the hitch as a template, mark the centers of
the holes to be drilled for fasteners as shown.
3) Remove the hitch and drill for fasteners.
4) Position the hitch on the vehicle matching the holes in the frame rail extensions with the holes in the hitch
plates. Install fasteners as shown. Pass handle nuts up through the opening at the bottom of the frame rails
extensions.
5) Torque all 7/16 fasteners to 35 lb-ft.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
98-05 MAZDA MIATA CONVERTIBLE
Parts List
DESCRIPTION
HEX BOLT
HELICAL LOCK WASHER
HANDLE NUT
2
3
2,000
LBS. TRAILER WEIGHT &
1
DESIGNED FOR USE WITH
BALLMOUNT #55001 / 45501
200
LBS. TONGUE WEIGHT.
PASSENGER SIDE
FRAME RAIL EXTENSION
