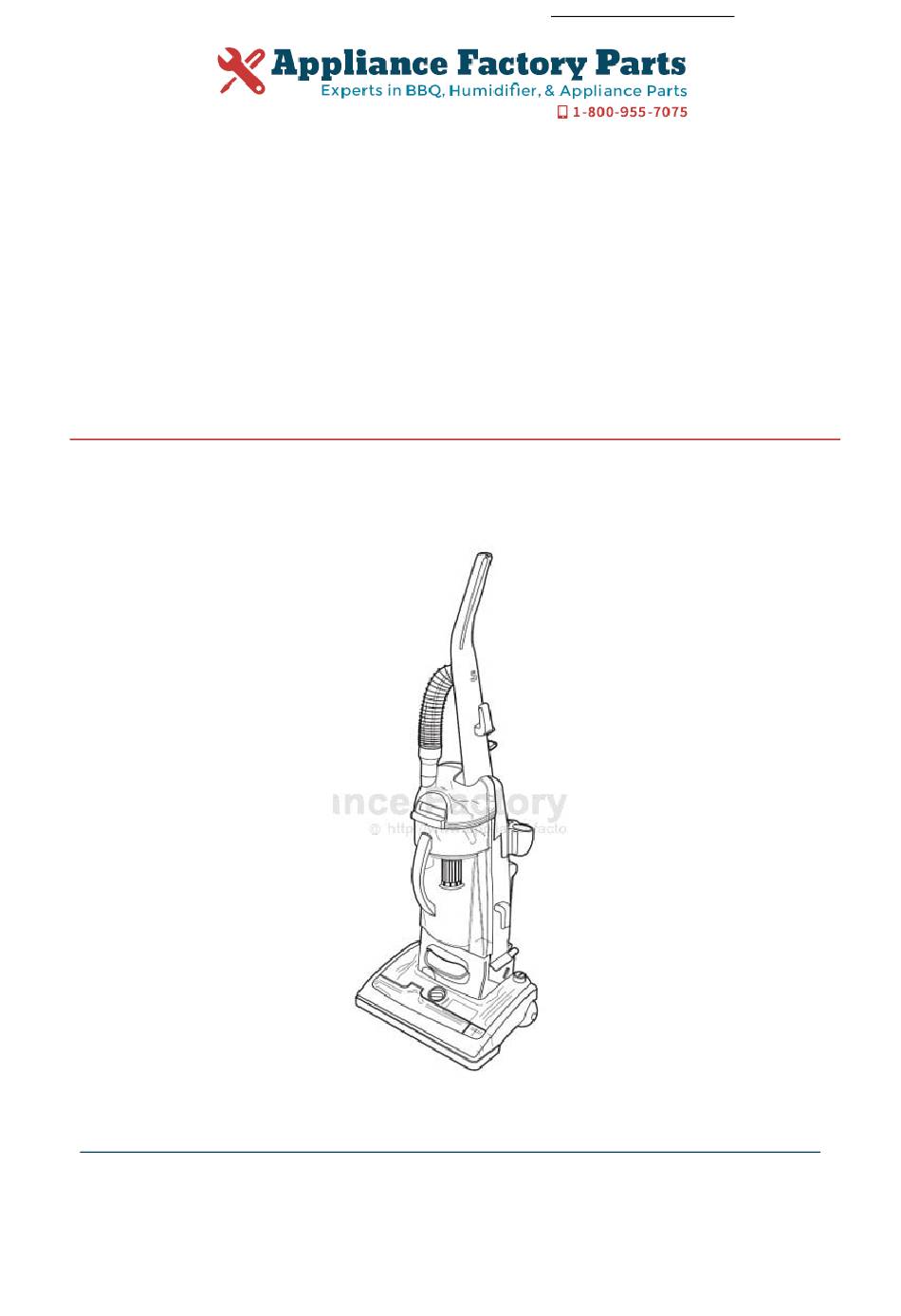

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Eureka 4684AT-1 Owner's Manual Shop genuine replacement parts for Eureka 4684AT-1 Find Your Eureka Vacuum Cleaner Parts - Select From 853 Models -------- Manual continues below --------...
-
Page 2: Table Of Contents
Warranty ........18 Customer Order Form ....19 IMPORTANT Do not return this product to the store. For assembly problems or questions contact: Eureka’s Customer Service Division toll free at 1-800-282-2886*, 7 a.m. to 8 p.m., Central Standard Time, Monday through Saturday. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. WARNING To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. •... -
Page 4: Conseils De Sécurité
CONSEILS DE SÉCURITÉ Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires doivent être observées, incluant les suivantes: LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER VOTRE ASPIRATEUR. AVERTISSEMENT Pour réduire le risque de feu, de choc électrique, ou de blessure: • Ne pas utiliser à... -
Page 5: General Information
If you prefer, you can write to The Eureka Company, Service Division, 807 North Main Street, Bloomington, Illinois 61701, USA. In Canada write to The Eureka Company, 866 Langs Drive, Cambridge, Ontario N3H 2N7. Refer to The Eureka Limited Warranty for complete service information. -
Page 6: How To Assemble
HOW TO ASSEMBLE CAUTION: Assemble the cleaner before using. CAUTION: Moving parts, make sure on/off switch is in off position before plugging in. NOTE: Features may vary by model yet all parts assemble the same. Step B Attach Hose Step A Attach Handle CAUTION: Do not catch cord under handle. - Page 7 Step C Store Hose and Accessories Step D Store Electrical Cord Optional Dusting Brush and Upholstery Tool can be stored in place of the combination tool on handle pegs. Cord Retainer Handle Pegs Cord Hook Combination Tool Hook Cord Hook Crevice Tool Carrying...
-
Page 8: Thermal Cut Off
The cleaner should turn on. adjustment will not change brush roll level 7. If the cleaner still does not operate, take it to any Eureka until the cleaner’s handle is moved into the Authorized Service Center for repair. -
Page 9: Accessories
Dusting Brush How To Use Accessories is for furniture, blinds, books, lamp shades, shelves. (On some models.) NOTE: Do not place cleaner on furniture or steps as the brush roll may cause damage. Place cleaner on floor with the handle in storage position while using accessories. - Page 10 When using your new vacuum you may be cleaning deep down hidden dirt missed by your old vacuum causing the light to stay red longer. With frequent cleaning, after the first few times you use your new Eureka vacuum, the red light should go on less.
-
Page 11: How To Maintain
4. Do not submerge gray dust cup lid, wipe only with a damp cloth. 5. When all parts are completely dry, replace filter on gray dust lid by twisting clockwise to snap and lock in place. Gray Filter Assembly Lint Trap Cone Use GENUINE EUREKA replacement pleated filter, 61805... -
Page 12: Emptying The Dust Cup
HOW TO MAINTAIN (continued) How To Empty Dust Cup NOTE: Turn off the switch and unplug the electrical cord before emptying dust cup. Never operate the vacuum cleaner without the dust cup and filter assembly properly installed. FOR INSTRUCTIONS ON HOW TO REMOVE THE DUST CUP FROM THE CLEANER BODY, REFER TO PAGE 10. -
Page 13: Brush Roll
10. Replace the hood. Make sure hood front is Roll behind furniture guard. Hood should seat onto self-locating screw tabs. 11. Tighten screws. Use GENUINE EUREKA replacement belt, 3. Lift left end of brush roll. 54312. Look for the GENUINE EUREKA product 4. Remove and discard belt. symbol. - Page 14 HOW TO MAINTAIN (continued) How to Clear Hose Clogs NOTE:Turn off the switch and unplug the electrical cord before clearing hose. Hose Assembly Hose Adapter Hose Retainer 3. On the back of the cleaner, pull up on hose assembly to release from hose retainer.
-
Page 15: Filters
3. Reinstall filter after completely dry. NOTE: If rubber gasket separates from motor adapter, re-position securely on top edge before using cleaner. Use GENUINE EUREKA replacement pre-motor filter, 39348. HEPA Cartridge Filters HEPA/Micron Filters in Filter Frame (Only for models with HEPA cartridge.) -
Page 16: Hepa Filter
3. Push new filter into cleaner, smooth side facing out . 4. Close exhaust filter door; push toward right side. Exhaust Filter Door Use GENUINE EUREKA replacement filters, HEPA, part no. 61505; Micron, part no. 60665. HOW TO MAINTAIN (continued) - Page 17 STAIR CLEANING HOSE (Only on Certain Models) WARNING: Never position any cleaner on the stairs as this could damage the carpet. Some models will come complete with an extra bonus hose which is ideal for cleaning stairs. HOW TO ASSEMBLE AND USE WARNING Always work with the cleaner below you, pulling hose from side of cleaner;...
-
Page 18: Light Bulb
Over time loose new carpet fibers will diminish and will not trip the dirt alert sensors. Dirt Alert red light will not come Dirt sensor is not working. Call 1-800-282-2886 7 a.m. to 8 p.m. central standard time, Monday through Saturday for the nearest authorized Eureka service center. -
Page 19: The Eureka Limited Warranty
This Warranty Covers Your Eureka cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of one year. The warranty is granted only to the original purchaser and members of his or her immediate household. The warranty is subject to the following provisions. -
Page 20: Order Form
(prices subject to change without notice) Method of payment (no C.O.D. orders) Check or money order (payable to The Eureka Company). Do not send currency. (add state tax & local taxes as required by law) Charge to my Visa (13/15 digits) MasterCard (13 digits) Amer. -
Page 21: Warranty
Thank you for selecting a Eureka cleaner. Don’t Forget to Use Genuine Eureka Belts Caution: Damages caused by the use of non-genuine Eureka parts are not covered by the Eureka Limited Warranty. ©2000 White Consolidated Industries, Inc. Part No. 70938B Printed in U.S.A.
