- Page 1 Operating Your System With The KP-900 Wireless Keypad/Remote ™ COMPLETE COMPLETE CONTROL Universal Remote Control ®...
- Page 2 The information in this manual is protected by the copyright laws of the United States and other countries. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc. UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
-
Page 3: Table Of Contents
Displaying the Setup Screen Selecting from the Setup Screen Setting the LCD Sound Volume Light Settings System Settings Version Information Displays Factory Default USA Limited Warranty Statement Specifications Contact Universal Remote Control Notes: Your Listen Activities Notes: Your Watch Activities... -
Page 4: Introduction

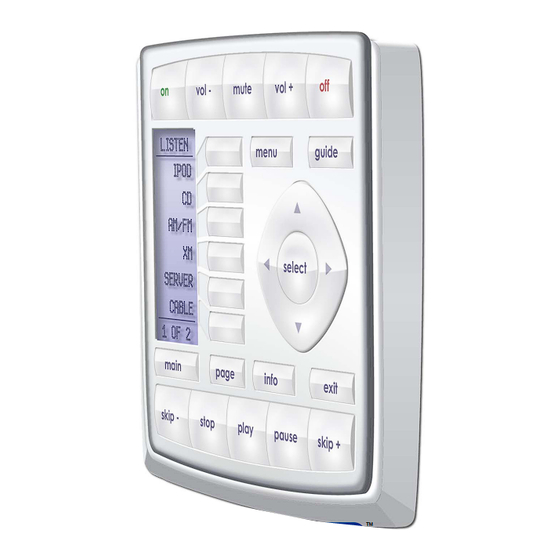

KP-900 O WNERS ANUAL Congratulations! You’ve purchased a unique wireless control. The KP-900 can be used as both a wall mounted keypad and as a hand-held remote control. The KP-900 achieves a magnificent combination of power and flexibility, simplifying and automating operation of even the most complex home theater system. -
Page 5: Optional Rf "No Rules" Operation
KP-900 O WNERS ANUAL Optional RF “No Rules” Operation In combination with a Complete Control RF Base Station, the KP-900 can control your system without being in line-of-sight of the equipment. On the wall or off, that means that you never need to point the KP-900. The MSC-400, the MRF-350 or the MRF-260 RF base station are compatible with the KP-900. -
Page 6: Securing The Wall Bracket
KP-900 O WNERS ANUAL Securing the Wall Bracket The KP-900 includes a wall bracket, four screws and four plastic caps to conceal the screwheads. Consult with a professional installer before attempting to secure the bracket to your wall. The included screws may not be appropriate for your walls. -
Page 7: Programming The Kp-900
KP-900 O WNERS ANUAL Programming the KP-900 The KP-900 is programmed via a Windows PC equipped with a USB port (programming cable included), using our proprietary software, KP-900 Editor. You can download this software from our website: www.universalremote.com Basic setup takes only a few minutes with this software. However, to fully automate an audio/video system the user must have a detailed knowledge of each component, you the user (and your preferences), and how the sys- tem is connected and operated. -
Page 8: Selecting A New "Activity
KP-900 O WNERS ANUAL Selecting a New “Activity” The KP-900’s MAIN button displays the activities you can control with your KP-900. When you want to listen to the radio or to a CD, touch the MAIN button and select what you would like to listen to. Your installer will have programmed the button you pressed to totally con- figure your system to watch or listen to whatever you selected. -
Page 9: Using The Kp-900 To Control An "Activity
KP-900 O WNERS ANUAL Using the KP-900 to Control an “Activity” Once you’ve selected a new activity, the KP-900 displays the title of the activity at the top of the screen. Below the title, the LCD displays the cus- tomized names of any special features you need for the activity. All the hard buttons of the KP-900 have now changed to functions optimized for this activity. -
Page 10: Displaying The Setup Screen
KP-900 O WNERS ANUAL Displaying the Setup Screen You can adjust the settings of the KP-900 whenever you like by pressing and holding both the MAIN and the SELECT buttons at the same time for three seconds. When you do, the screen will change to the SETUP screen. If you do not press any button on the SETUP screen within 30 seconds, the KP-900 will time out and automatically return to normal operation. -
Page 11: Setting The Lcd
KP-900 O WNERS ANUAL Setting the LCD With these settings, you can set the KP-900 to constantly display the LCD when not in use, or show a blank screen when not in use. Additionally, you can control the contrast of the screen and the color of the backlighting. To activate the LCD On/Off setting, press this button. - Page 12 KP-900 O WNERS ANUAL Setting LCD Contrast You can adjust the contrast of the LCD screen using the LEFT and RIGHT arrow keys once the LCD contrast screen has been selected (shown on the previous page). The current CONTRAST is displayed here via a bar graph.
-
Page 13: Sound Volume
KP-900 O WNERS ANUAL Light Settings You can adjust the backlighting of the remote in two additional ways: 1. You can turn on/off the LCD and the hard button backlighting. 2. You can select the amount of time the lighting stays on after the last button press from a range of values between 10 seconds and 90 seconds. -
Page 14: System Settings
KP-900 O WNERS ANUAL System Settings You can set your KP-900 to display the Low Battery warning at a power level between 0% and 20% (in 5% increments). SYSTEM POWER The Power bar indicates avail- able power with Black. WARN. Press here to adjust the battery MEMORY warning level. -
Page 15: Factory Default
(1) year and as set forth below. Universal Remote Control will, at its sole option, repair the prod- uct using new or comparable rebuilt parts, or exchange the product for a comparable new or rebuilt product. - Page 16 It is likely that such data, software, or other materials will be lost during service and Universal Remote Control will not be responsible for any such damage or loss. A dated purchase receipt, Bill of Sale, Installation Contract or other verifiable Proof of Purchase is required.
-
Page 17: Specifications
KP-900 O WNERS ANUAL Specifications Memory - 4 Megabits of Flash Memory (for User Configuration) Devices - Flexible, typically can support up to 255 Devices Pages - Flexible, typically can support up to 255 Pages on each Device Learning Capability - Standard frequencies (15kHz to 460kHz) Macro Capability - Up to 255 steps each, however nesting is allowed, thus real macro length is unlimited. -
Page 18: Notes: Your Listen Activities
KP-900 O WNERS ANUAL Your Listen Activities Describe the inputs and modes you must set to listen to CD, Radio etc. in your home entertainment system. Activity (Listen to CD, Listen to Radio etc.) Audio Input Audio Mode Page 15... -
Page 19: Notes: Your Watch Activities
KP-900 O WNERS ANUAL Your Watch Activities Describe the inputs you must set to watch or listen to TV, DVD etc. in your home entertainment system. Activity (Watch TV, Watch DVD etc.) TV Input Audio Input Page 16... - Page 20 ™ COMPLETE COMPLETE CONTROL Universal Remote Control ® 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com...
