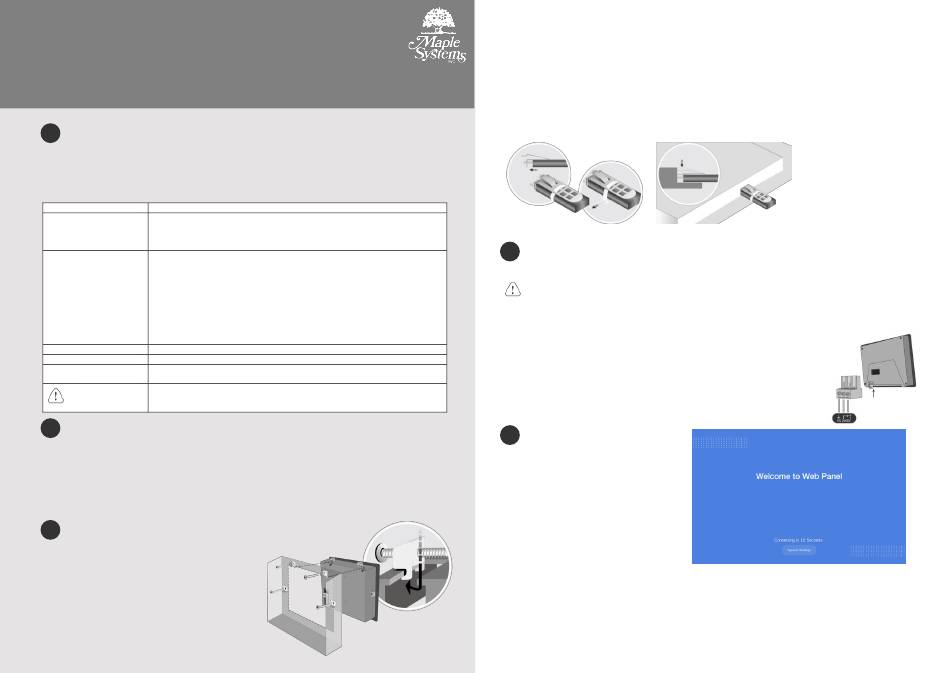

Maple Systems cMT3072XPW Series Installation Instructions

cMT3072XPW series
1 Installation and Startup Guide
This document covers the installation of cMT3072XPW Series HMI, for the detailed specifications
and operation, please refer to Datasheet, Brochure and User Manual. Please read all warnings,
precautions, and instructions on the device carefully before use.
Install Environment:
NEMA Rating The HMI product is NEMA 4 rated (indoor use only).
The HMI product has been tested to conform to European CE
requirements. This means that the circuitry is designed to resist the effects
Electrical Environment
of electrical noise. This does not guarantee noise immunity in severe
cases. Proper wire routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the
operating limits are followed. Avoid installing units in environments
where severe mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on
the flat surface enclosure.
(5) For use in Pollution Degree 2 Environment and dry location.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Altitude 3,000 m
IP Rating IP 66
Cleaning Clean the device using dry cloths. Do not use liquid or spray detergents for
Considerations cleaning.
Protection impairment if used in a manner not specified by the
Warning manufacturer.
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
Unpacking the Unit
2
Unpack and check the delivery. If damage is found, please contact the supplier.
NOTE: Place the operator panel on a stable surface during installation. Dropping it or letting it
fall may cause damage.
The package includes:
(1) Installation Instruction, 2-sided A4 *1 (2) Human Machine Interface *1 (3) Power Connector *1
(4) Brackets & Screws *1 pack (5) USB Stick Clamp & Tying Strap *1
3
Installation Instructions
Use a control box that provides enough stiffness.
Cutout Dimension: 192 mm x 138 mm. Secure the
operator panel in position, using all the fastening holes
and the provided brackets and screws. Screw Torque:
2.6 ~ 3.9 lbf.in. (For reaching waterproof effect and
preventing the panel from being deformed.)
Plan for adequate space around the unit and inside
Installation Instruction
the enclosure, for ventilation and cables. Consider the heat from other devices inside the enclosure.
The ambient temperature around the unit must be 0 ~ 55°C
Minimum required clearances (along the overlay): Top / Bottom / Sides 15 mm
Maximum panel thickness: 4.5 mm
USB Stick Clamp Usage
Combining the USB Stick with the clamp and the tying strap can prevent USB stick from disconnecting
with HMI when strong vibration is present.
1. Insert the USB connector to the clamp and tie them together with the tying strap.
2. Press the spring and insert the USB stick into HMI.
4 Power Connections
Power Connector Specifications:
Wire AWG: 24~12
Wiring Conductor Minimum Temperature: 75°C
Screw Torque: 4.5 lbf-in (max.)
Copper conduct only.
Connect positive DC line to the '+' terminal and the DC ground to the '-' terminal.
NOTE:
5 System Settings
After powering on the HMI, a countdown
screen will be displayed. If no action is taken
within the countdown period, the screen
redirects to the designated Default Website.
Click the [System Settings] button and enter
the system password (default: 111111) to
access the system settings menu. Here,
configure the Web Browser, Network, change
the system password, and adjust other
settings.
Spécifications du connecteur d'alimentation:
AWG de fil: 24 ~ 12
Température minimale du conducteur de câblage: 75°C
Couple de vis: 4.5 lbf-in (max.)
Conducteur en cuivre seulement
