Corsair K65 PRO MINI Manual

PACKAGE CONTENTS

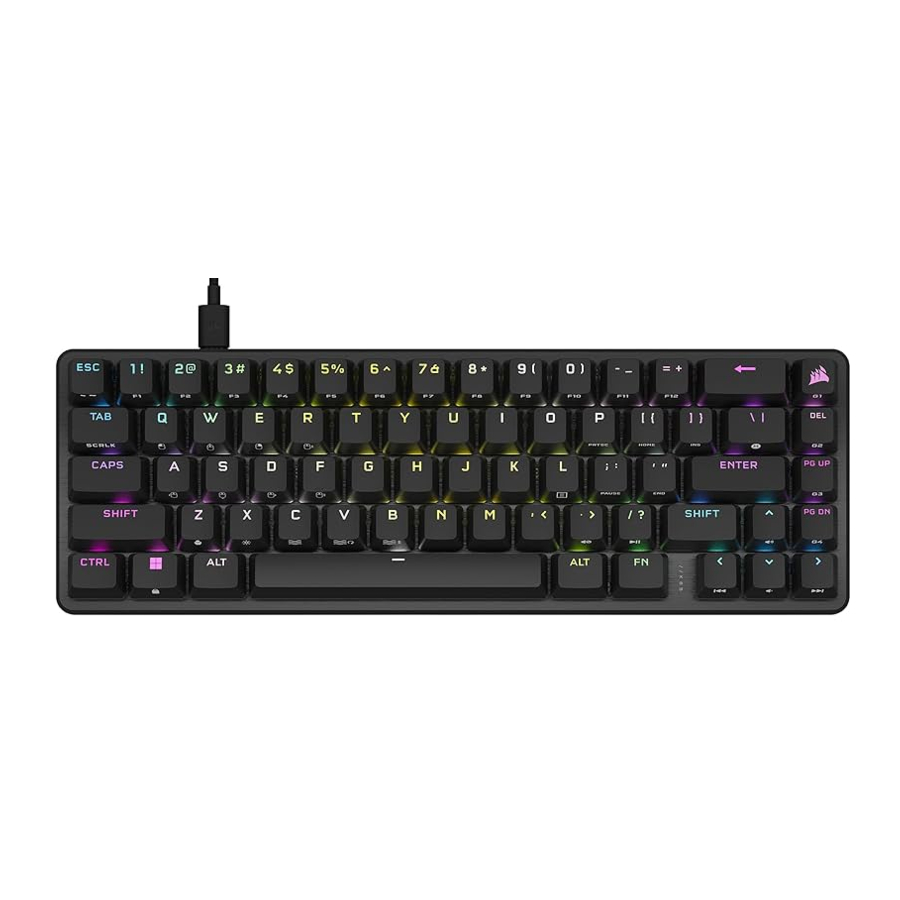

GETTING TO KNOW YOUR KEYBOARD

1. USB TYPE-C TO TYPE-A CABLE
2. OPTIONAL RADIANT SPACEBAR
3. USB TYPE-C PORT

SETTING UP YOUR KEYBOARD

Connect the USB cable (A) to the keyboard USB Type-C port (C) and to an available USB 3.0 or better Type-A port on a compatible device including:

*Keyboard is compatible out of the box, see corsair.com/xbox-support for details.
**See Connecting to Sony PlayStation section.

FACTORY RESET

Hold the ESC key while plugging in the USB cable (A) to your system, then release the ESC key after two seconds. The keyboard will then power on normally and be reset to factory defaults.

CONNECTING TO SONY PLAYSTATION

Shortcut	Function	On-Key Indication
FN + (Hold for 5 sec)	Switch to PlayStation Mode	Blinks White (5 sec) then Solid White
	Switch back to standard mode	Pulses White (6 sec)

SOFTWARE MODE

When iCUE is running the keyboard operates in software mode and is controlled by iCUE.
Download iCUE from corsair.com/downloads and install on a Windows PC or Apple Mac to connect all of your CORSAIR iCUE compatible products together in a single interface, giving you complete control of everything from lighting to powerful macros.

HARDWARE MODE

When iCUE is not running or the keyboard is connected to a device that does not support iCUE, the keyboard operates in hardware mode which uses profiles and settings saved to the onboard storage.
With iCUE and AXON Hyper-Processing Technology, you can create as many custom profiles as can fit onto the 8MB of onboard storage. Each profile can store complex backlighting effects (up to 20 layers), actions & macros, and settings.*
*The number of lighting effects layers per profile and total number of profiles that can be saved to onboard storage will vary based on complexity.

ADJUST POLLING RATES

To adjust your keyboard's polling rates, go to iCUE device settings and select up to 8,000Hz hyper-polling with CORSAIR AXON. Default is 1,000Hz.
*Polling rates higher than 1,000Hz are not supported by Xbox or PlayStation consoles.

AXON HYPER-PROCESSING TECHNOLOGY

CORSAIR AXON delivers a powerful and responsive keyboard experience with:

• Hyper-fast keystroke detection and processing
• Up to 8,000Hz hyper-polling (adjustable in iCUE device settings)
• Up to 20-layer onboard lighting effects (programmable in iCUE per profile)

HARDWARE LIGHTING CONTROLS

Keyboard lighting effects can be controlled via the onboard shortcuts below when iCUE is not running or the keyboard is connected to a device that does not support iCUE.

Shortcut	Function	Notes
FN +	Change brightness	Adjusts backlighting brightness in 20% increments
FN +	Change lighting e ect	Water color -> Spiral rainbow -> Rain -> Rainbow wave -> Visor -> Type lighting (per-key) -> Type lighting (ripple) -> Color shift -> Color pulse -> Color wave -> Static color (8 colors)
FN + (Hold for 2 sec)	Reset lighting e ect to onboard default
FN +	Change lighting e ect direction	Available only on select e ects
FN +	Change lighting e ect speed	Available only on select e ects

CONTROL SHORTCUTS

Audio and Media

Shortcut	Function
FN +	Mute
FN +	Play / pause
FN +	Volume up
FN +	Volume down
FN +	Previous track
FN +	Next track

Mouse Cursor

Shortcut	Function
FN +	Move cursor up
FN +	Move cursor left
FN +	Move cursor down
FN +	Move cursor right
FN +	Left click
FN +	Right click
FN +	Increase cursor speed
FN +	Decrease cursor speed

STANDARD SHORTCUTS

Shortcut	Function
FN + Numeric Key	F1 - F12
FN + P	Print screen
FN + [	Home
FN + ]	Insert
FN +	Menu
FN +;	Pause
FN + '	End
FN + Esc	'
FN + Shift + Esc	~

SPECIAL FUNCTIONS

Shortcut	Function	Notes
FN +	Change pro le	Z key changes color depending on pro le
FN +	Win lock	Win key turns red
FN + Tab	Scroll lock	Tab key turns red
Caps	Caps lock	Caps key turns red

CORSAIR LOGO AND G KEYS SHORTCUTS

Shortcut	Function
	User programmable macro key
FN +	G1 user programmable macro key
FN + G2	G2 user programmable macro key
FN + G3	G3 user programmable macro key
FN + G4	G4 user programmable macro key

MACRO RECORDING

Macros can be recorded at any time via the below process. In hardware mode your macros are recorded to onboard storage and in software mode your macros are recorded to the current iCUE profile.

Macro Recording Process	Hold FN + (2 seconds)	>	Press keys to record	>	Press FN +	>	Press any key or FN + key combination to save
Recording Indication	Pulses Red	>	Blinks Red		Rapidly Blinks Red		Hold FN + to cancel (2 seconds)
Macro Clearing Process	Hold FN + (2 seconds)	>	Press FN +	>	Press any key or FN + key combination to save		Keys that can be recorded: Standard Keys Macros can be recorded to: Any standard key* FN + key*
Recording Indication	Pulses Red	>	Rapidly Blinks Red		Hold FN + to cancel (2 seconds)

*Hotkeys cannot be recorded over with onboard macro recording
NOTE: Saving a macro to a key or existing shortcut will overwrite that function until cleared.
