Corsair K95 RGB PLATINUM - Keyboard Manual

INTRODUCTION

CONGRATULATIONS!
The CORSAIR K95 RGB PLATINUM features CHERRY MX key switches backed by a lightweight aluminum frame. 8MB profile storage with hardware macro and lighting playback enable profile access independent of external software. Utilize the 19-zone LightEdge to add dramatic animations and effects. Take advantage of the 6 programmable G-keys for in-game macros. 100% anti-ghosting with full-key rollover on USB ensures accuracy, so every keystroke translates directly into accurate gameplay. USB pass-through port provides convenient access to an additional USB port for your mouse or headset. Dedicated volume and multimedia controls allow you to adjust your audio without interrupting your game.

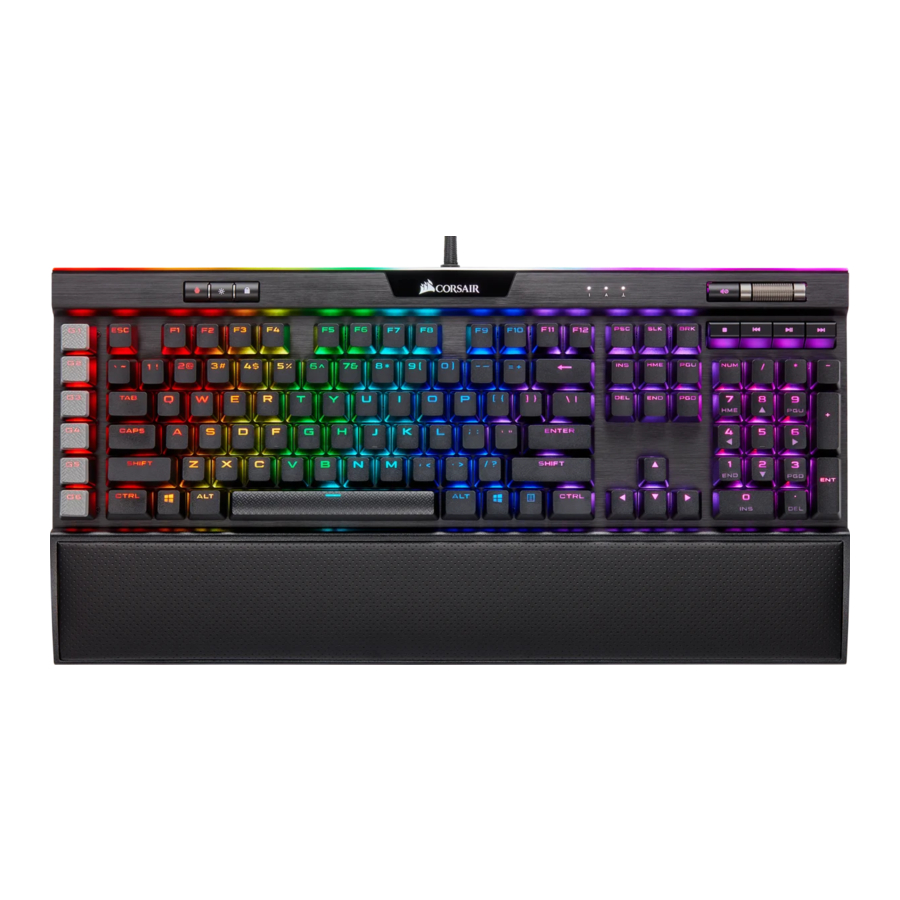

GETTING TO KNOW YOUR KEYBOARD

1. SIX PROGRAMMABLE MACRO KEYS
2. PROFILE SWITCH KEY
3. BACKLIGHT BRIGHTNESS KEY
4. WINDOWS KEY DISABLE
5. MUTE KEY

6. VOLUME ROLLER
7. DEDICATED MULTIMEDIA KEYS
8. NUM LOCK LED INDICATOR
9. CAPS LOCK LED INDICATOR
10. SCROLL LOCK INDICATOR

11. LIGHTEDGE
12. DUAL-SIDE DETACHABLE WRIST REST
13. USB KEYBOARD CONNECTOR
14. USB PASS-THROUGH CONNECTOR
15. USB 2.0 PASS-THROUGH PORT

SETTING UP YOUR KEYBOARD

• Turn on your computer
• Connect the keyboard connector to one USB 3.0 port
• To take advantage of USB 2.0 pass-through port on the keyboard, please connect the keyboard's USB pass-through connector to one USB 2.0/3.0 port
• Download the Corsair Utility Engine (CUE) software from www.corsair.com/downloads
• Run the installer program
• Follow the instruction for installation

ONBOARD PROFILES

HARDWARE PLAYBACK

The 8MB of onboard memory allocated for up to three profiles stores complex actions or custom lighting which can be executed without additional software. Complex macros or key remaps as well as custom lighting effects can be created and saved back to onboard storage using CUE software. Use Profile Switch Key to cycle through saved onboard profiles.
