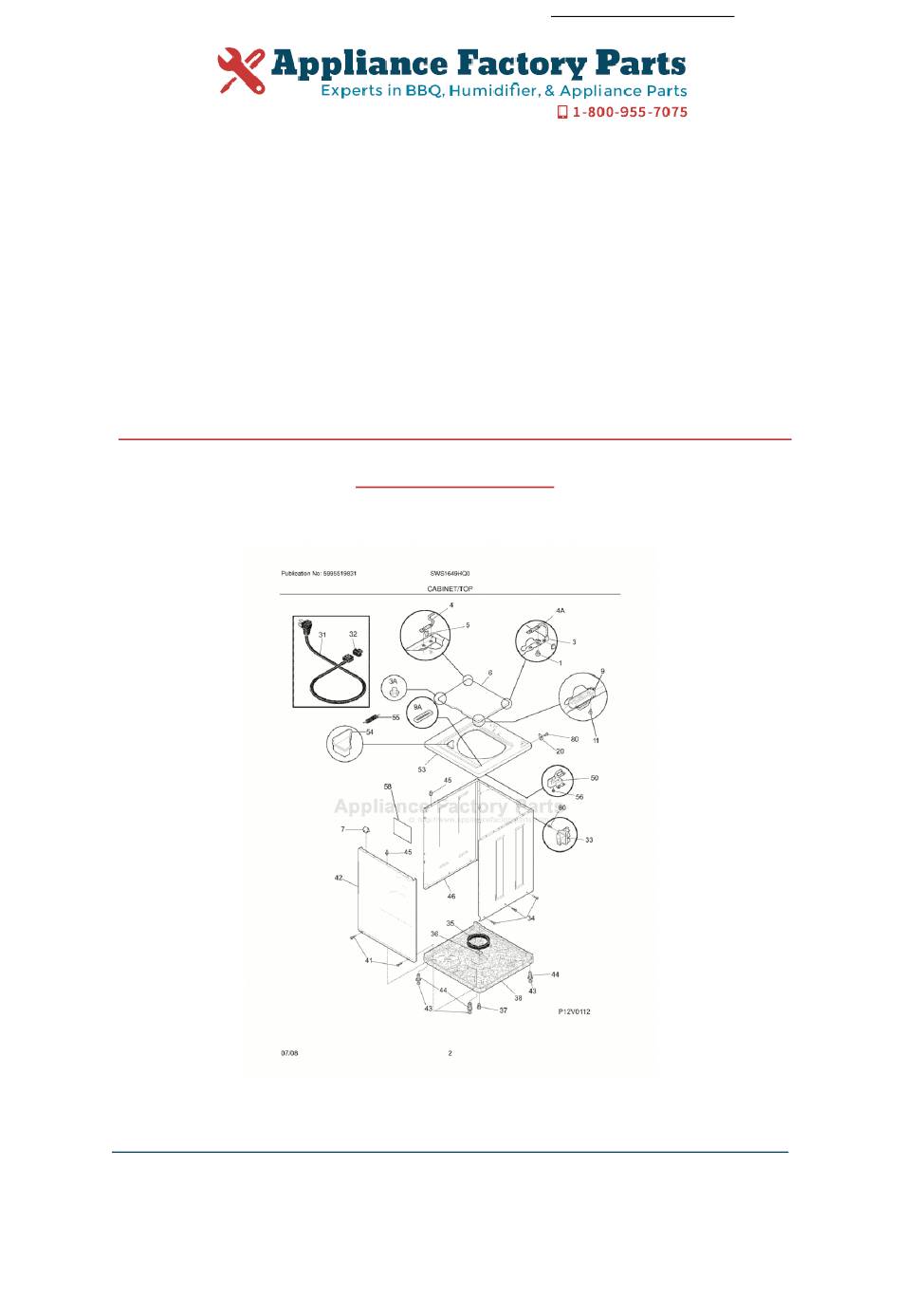

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Electrolux SWS1649HQ0 Owner's Manual Shop genuine replacement parts for Electrolux SWS1649HQ0 Find Your Electrolux Washer Parts - Select From 440 Models -------- Manual continues below --------...
-
Page 2: Table Of Contents
Installation Instructions Full Size Automatic Washer Instrucciones para la instalación Lavadora automática de tamaño grande Before beginning installation, carefully read these instructions. This will simplify the installation and ensure the washer is installed correctly and safely. Leave these instructions near the washer after installation for future reference. -
Page 3: Pre-Installation Requirements
DRAIN REQUIREMENTS PRE-INSTALLATION REQUIREMENTS Drain capable of eliminating 17 gallons (64.3 L) per minute. Tools Required for Installation: A standpipe diameter of 1-1/4 in. (3.18 cm) minimum. 3/8 in. socket with ratchet. The standpipe height above the floor should be: Channel-lock adjustable pliers. -
Page 4: Installation
NOTE: If the washer is to be transported at a later date, the tub blocking pad, shipping bolt, and plastic spacer block should be retained. P L A S T I C SHIPPING BLOCKS S PA C E R BLOCK CABLE TIE MECHANISM S H I P P I N G... -
Page 5: Requisitos Antes De La Instalación
REQUISITOS ANTES DE LA INSTALACION 4. La tubería de agua fría con conexión a tierra DEBE tener continudad metálica hacia la conexiónelécticia Herramientas necesarias para la instalación: a tierra y DEBE registrar una resistencia no mayor de 1. Llava de tubo de 3/8 de pulgada. 25 ohmios. -
Page 6: Dimensiones Para La Instalación
BLOQUE DE DIMENSIONES PARA LA INSTALACION BLOQUE EMBARQUE ESPACIADOR DE PLASTICO TAPA ABIERTA 90° PERNO DE 51" ENTRADAS EMBARQUE (129.54 DE AGUA (ATRAS) 44" 11-7/16" SALIDA 29-7/16" (111.76 (29.05 cm) ESPUMA AL DREN SALIDA (74.77 cm) PROTECTORA (ATRAS) AL DREN CORDON 3-3/4"... -
Page 7: Piezas De Repuesto
4. Determine cuál de las llaves de agua CALIENTE y NOTA: el diámetro interno de la tubería vertical debe ser de 1-1/4 pulgadas (3,18cm) conecte con cuidado el tubo inferior de entrada a la como mínimo. Debe haber un espacio de llave de agua CALIENTE, apriete a mano y luego apriete 2/3 de vuelta con unos alicates.
