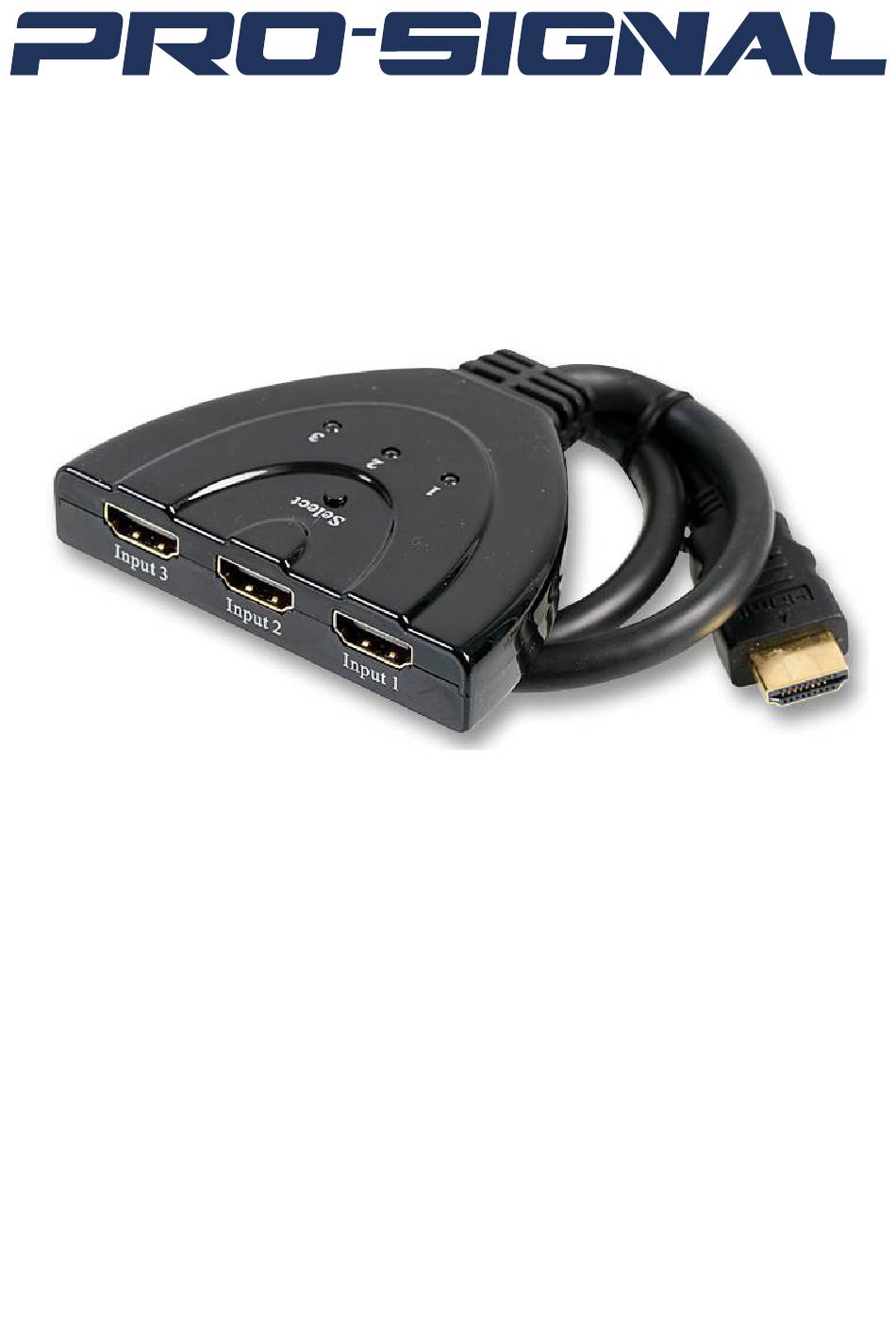

- Page 1 3-Way HDMI Pigtail Switch PSG08415 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 CONNECTIONS OPERATION PSG3429 • Once the source device is connected and powered on, the switcher will automatically select this source. • When the source device is turned off or disconnected, the switcher will select the next active source device in sequence automatically. Note: Source devices may require powering off completely not just putting into standby mode for the intelligent switch function to operate correctly depending on the source devices.
- Page 4 SPECIFICATIONS Signal Input/Output Input Video Signal 5 Volts p-p (TTL) Max single link range 1920 x 1080p Output Video HDMI Type A 19 pin Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 2.25Gbps/225MHz Resolutions (HDTV) Interlaced (50&60Hz) 480i, 576i, 1080i Progressive (50&60Hz) 480p, 576p, 720p, 1080p Environmental...
