PRO SIGNAL PSG03500 Quick Start Manual

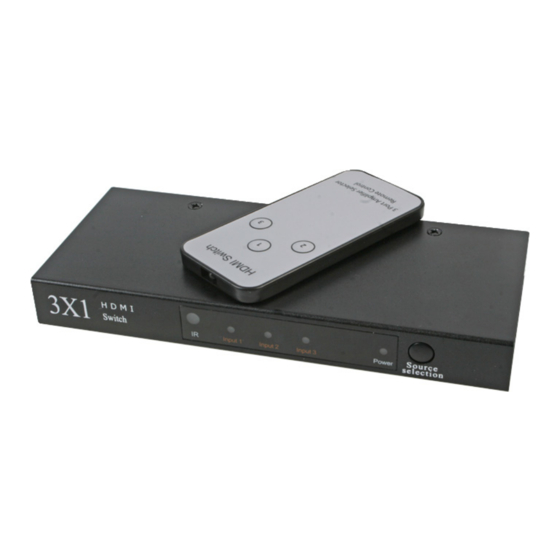

HDMI Amplifier Switcher

Description

This is a kind of high performance HDMI Amplifier Switcher. This kind HDMI Amplifier Switcher not only has the key-press-
switching function, but also has intelligent function.
This kind of HDMI Amplifier Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from
any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources
simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox360 etc. The output sends the high definition audio/video
signals to a high definition display.

Features

• Multifunctional on switching : intelligent or mechanical
• Support highest video resolution 1080p.
• Support 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
• Support 12bit per channel (36bit all channel) deep color.
• HDCP pass-through.
• Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz bandwidth up to 250MHz.

Specifications

Signal Inputs/Output
Input DDC Signal
Maximum Single Link Range
Output Video
Operating Frequency
Vertical Frequency Range
Video Amplifier Bandwidth
Resolutions (HDTV)
Interlaced (50&60Hz)
Progressive (50&60Hz)

Environmental

Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity

Power Requirement

Power Supply
Power consumption (Max)
Newark.com/exclusive-brands
Farnell.com/exclusive-brands
Element14.com/exclusive-brands
5 volts p-p (TTL)
1920X1080p
HDMI
50/60Hz
2.5Gbps/250MHz
480i, 576i, 1080i
480p, 576p, 720p, 1080p
0°C to +45°C
10% to 85% RH (no condensation)
-10°C to +80°C
5% to 90% RH (no condensation)
5V @ 1A
0.6W
