Summary of Contents for PRO SIGNAL PSG3450

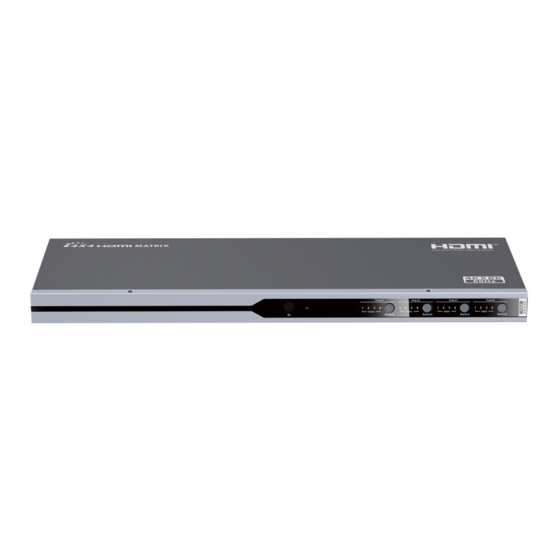

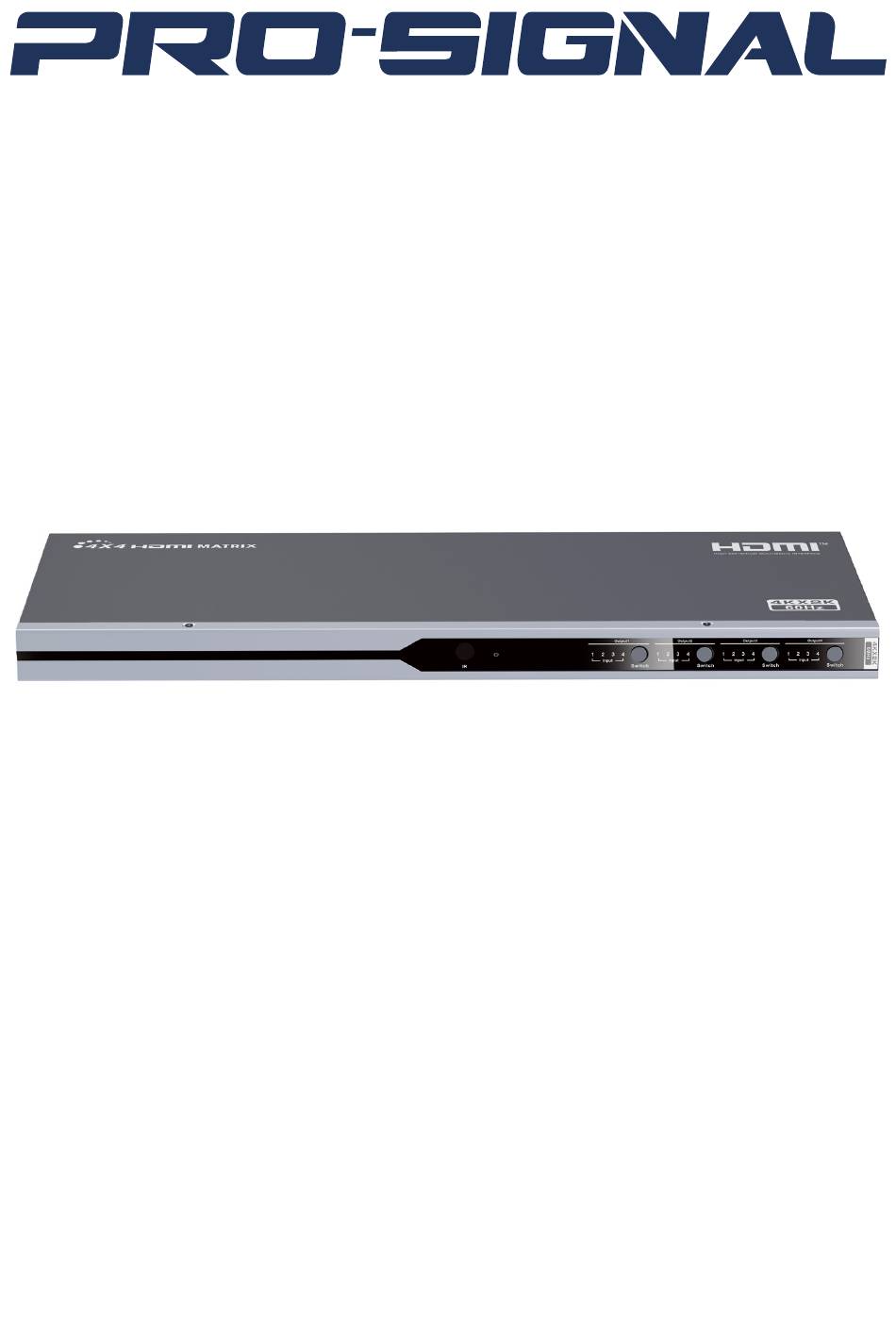

- Page 1 4x4 4Kx2K 60HZ MATRIX SWITCH PSG3450...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 RS232 connector for controlling channel selection via a PC. HDMI output - Connect to a display device (monitor/TV etc). HDMI input - Connect to source devices (DVD/PC etc). Power input - Connect to 5VDC output from PSU. Remote Control Each marked section on the remote control selects the input source for channels 1 to 4 1 - 4 buttons directly select the relevant input channel.
- Page 4 SPECIFICATIONS Voltage/Current DC 12V 2A Power consumption <20W HDMI compliance HDMI 2.0 HDCP compliance HDCP 2.2 HDMI resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz 3840x2160@25/30/60Hz Transmission rate 18Gbps Video bandwidth 600MHz Audio DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby AC3/DSD Input and output signal 0.5~1.5Vp-p (TMDS) Input &...
- Page 5 PC RS232 CONTROL • The switch supports RS232 control using a PC to select the input and output channel, the baud rate is 9600, and the connector is a 9-pin port. • Use the serial port software, please set COM firstly, and then correspond to the following figure in the various channel commands.
