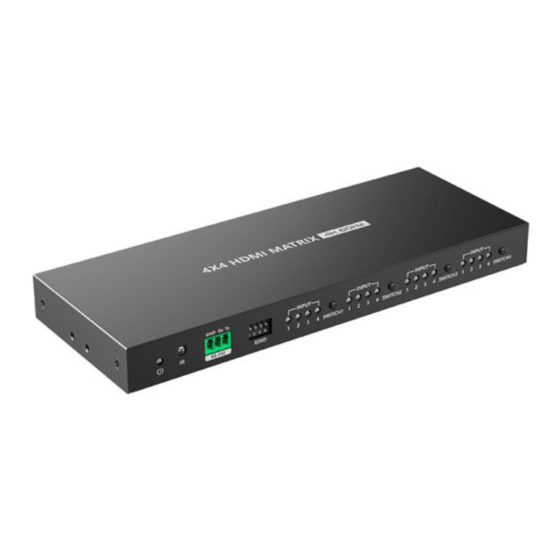

- Page 1 PSG3532 4x4 HDMI 2.0 MATRIX SWITCH 4K 60Hz The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •... -
Page 3: Installation
INSTALLATION • Please make sure all devices you wish to connect have been powered off. • Connect the source devices to the HDMI input ports with HDMI cables. • Connect the display devices to the HDMI output ports with HDMI cables. •... - Page 4 PAPXPXPXPX Prefix Content for output port HDMI 4 Content for output port HDMI 3 Content for output port HDMI 2 Content for output port HDMI 1 PAPXPXPXPX Operation PA is the command prefix, and the “X” of PX can be any number from 1 to 4. Mode 2 P1 represents HDMI 1 source content for output, P2 represents HDMI 2 source content for output, and so on to P4.
-
Page 5: Maintenance
Dip Switch Status Resolution Information 1080i@60Hz 2CH 1080i@60Hz 2CH 1080i@60Hz 7.1CH 1080p@60Hz HDR 7.1CH 1. Read only the EDID that was first connected to the output 2. Connect 4 outputs at the same time, only read the EDID of HDMI 1 output Remote Control / Front Panel Buttons •... -
Page 6: Specifications
SPECIFICATIONS HDMI version HDMI2.0 (HDR, YUV4:4:4) Compatible with HDCP2.2,HDCP1.4 HDMI interface 4 HDMI input, 4 HDMI output Transmission rate 18Gbps Bandwidth 600MHz Resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/60Hz, 4096×2160@24/25/30/60Hz Audio format LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital plus Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos RS-232 3 Pin (GND/Rx/Tx) Baud rate 9600 EDID setting...
