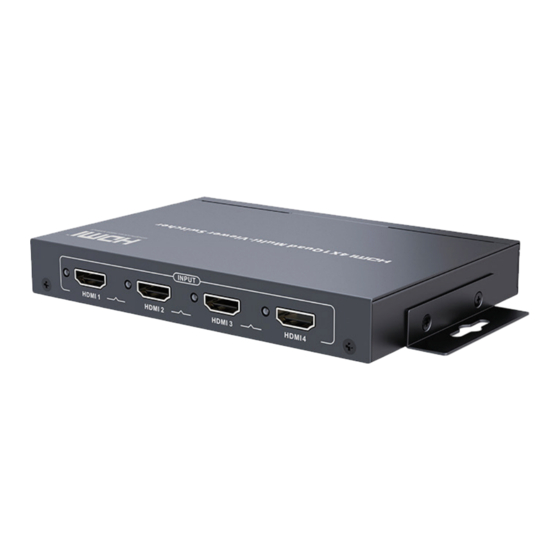

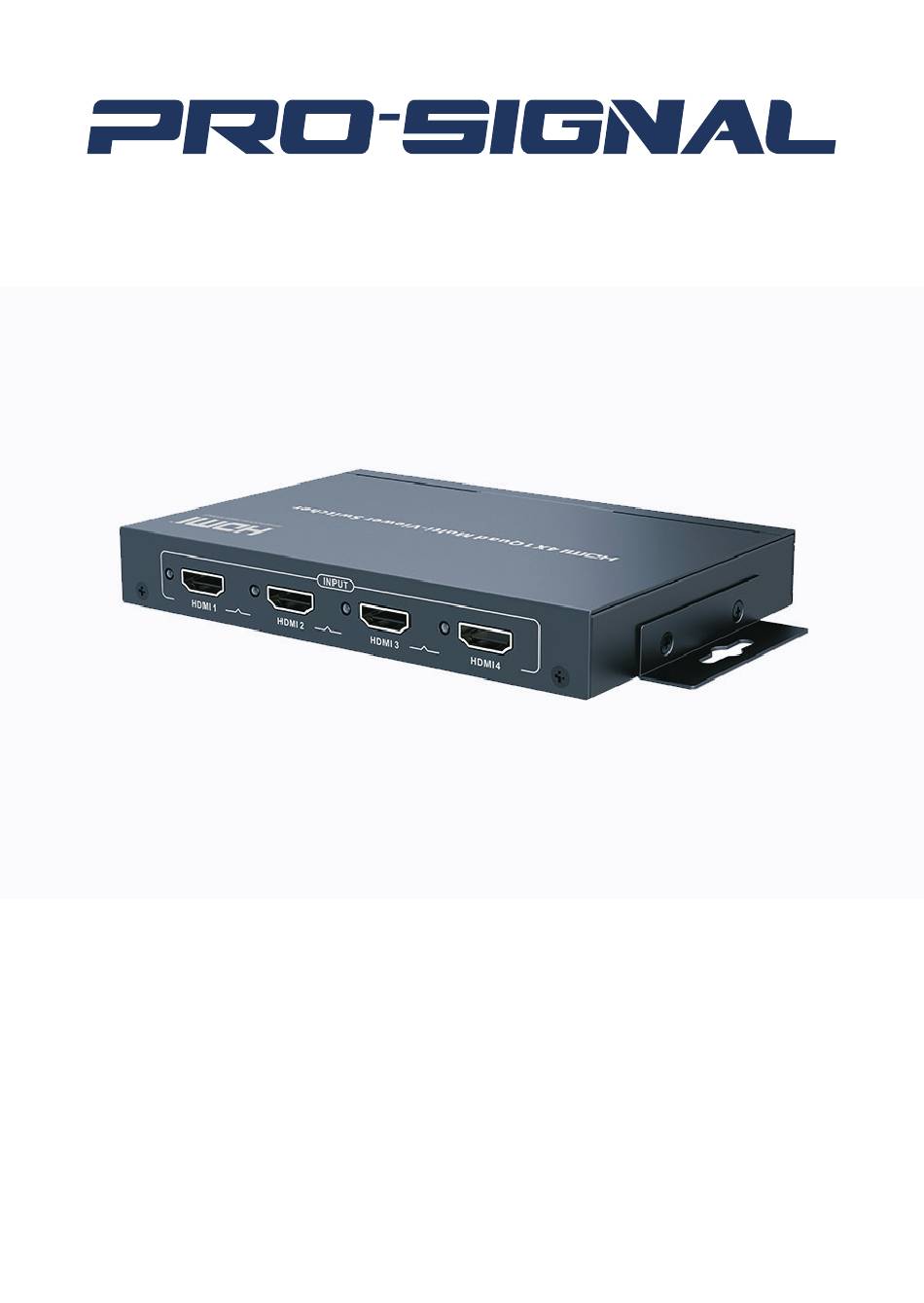

- Page 1 PSG3518 4x1 HDMI QUAD SCREEN MULTIVIEW SWITCH The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • When using electrical appliances basic safety precautions should always be followed. OVERVIEW • The HDMI Switcher can display up to 4 HDMI sources to 1 HDMI display. •... -
Page 3: Installation
INSTALLATION Monitor/TV Source • Please make sure all devices you wish to connect have been powered off. • Connect up to four source devices to the converter using appropriate HDMI cable. • Connect the HDMI output to the display or projector. •... - Page 4 DISPLAY OUTPUT MODES • Full screen mode which displays any of the four sources in full screen. Input 1 Input 2 Input 3 Input 4 HDMI Display • Dual mode which displays any of the four sources in split screen. Input 1 Input 2 Input 3...
- Page 5 • Quad mode 1 which displays any of the four sources in split screen with one source maximised and the other three smaller. Input 1 Input 2 Input 3 Input 4 HDMI Display • Quad mode 2 which displays all of the four sources simultaneously displayed equally in quarter screen display.
-
Page 6: Maintenance
MAINTENANCE • Clean the outside casing with a soft cloth lightly moistened with mild soap and water. Never use any abrasive or solvents. SPECIFICATIONS HDMI Version Compatible with HDMI1.3 HDCP Compliance Compatible with HDCP1.2 Video Resolution Up to 1080p@60Hz Input & Output TMDS signal 0.7~1.5Vp-p Input &... -
Page 7: Troubleshooting
TROUBLESHOOTING • Black screen or there is no any signal on HDMI displays? Please make sure the HDMI input source resolutions are supported by this HDMI multiviewer and the HDMI display devices. Please check and make sure the connections are securely connected. •... - Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
