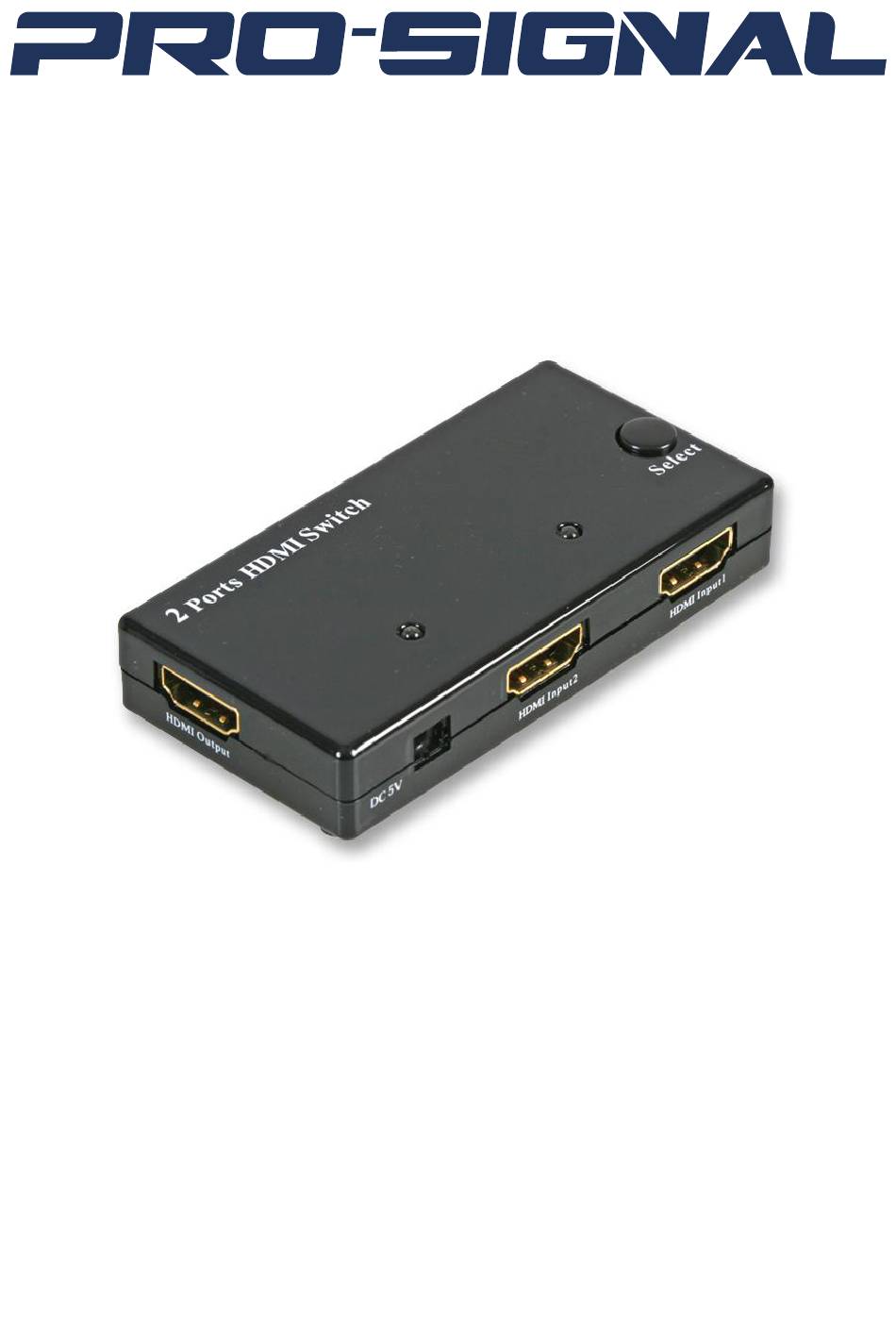

- Page 1 2 to 1 1080p Full HD HDMI Switch PSG08046 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 CONNECTIONS PSG3429 • Connect the HDMI input source into the HDMI switcher using suitable HDMI cables * Please refer to connection diagram section. • For long HDMI cable (over 5metres), it is recommended to use a 5V DC 5W power supply (not included) connected to the switch unit DC input jack.
- Page 4 SPECIFICATIONS Signal Input/Output Input Video Signal 5 Volts p-p (TTL) Max single link range 1920 x 1080p Output Video HDMI Type A 19 pin Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 2.5Gbps/250MHz Resolutions (HDTV) Interlaced (50&60Hz) 480i, 576i, 1080i Mechanical Dimensions (WxHxD) 86x16x44mm...
