Summary of Contents for Symphony SYK-002

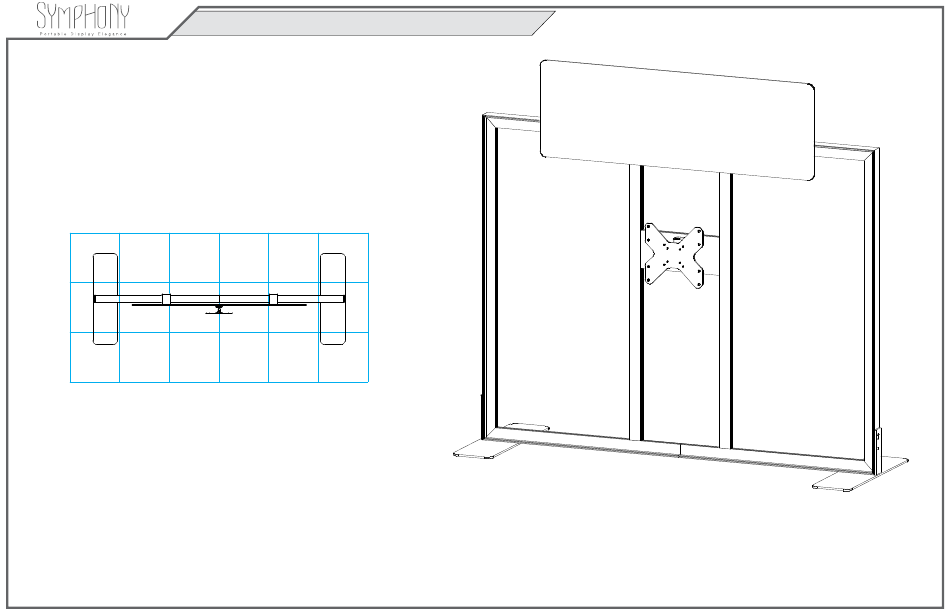

- Page 1 © 2025 Order #XXXXX SYK-002 - Table Top Display 1’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2025 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 3 © 2025 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 4 © 2025 Order #XXXXX SEG Graphic Installation The Perfect Fit SEG Graphic Installation in 3 Steps STEP 1: Attach Corners STEP 2: Attach Middle STEP 3: Attach Sides Always insert graphic into each alternate corner, then into the sides of the frame.
- Page 5 © 2025 Order #XXXXX Case Packing Top View of Each Level Graphics Graphic Setup Hardware Monitor Mount Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 1 of 1...
-
Page 6: Front View
© 2025 Order #XXXXX Backwall Frame Assembly Item Qty. Description Steps: 47”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 47”h TSP49 Vertical Extrusion 30“w TSP49 Horizontal Extrusion 1) Assemble horizontal extrusions [3-4], [5-6] together, using 30“w TSP49 Horizontal Extrusion Tool-less Spline Connectors labeled [X]. - Page 7 © 2025 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphic to front of assembled frame. Insert narrow side of STEP 1: Attach Corners silicone welt into the channel at corner 1, with fabric to the outside. Repeat for opposite corner 2, then corner 3, Always insert graphic...
-
Page 8: Side View
© 2025 Order #XXXXX Backwall Attachments Steps: Floating Header Graphic 1) Connect Floating Graphic to backwall using brackets. Attachment Floating Header Graphic Attachment detail. Velcro 2) Install Monitor Mount to horizontal [9] as shown. Hook the Graphic Bracket onto the extrusion & snap Monitor Mount Attachment detail.
