© 2022
Steps:
1) Attach pins at bottom interior of side panels. Note: Pins are designed to be slightly angled.
2) Use screw caps to secure side panels to front & back panels.
3) Slide floor into the bottom of assembled pedestal base. The floor will sit on pins of the side panels.
4) Connect
shelf supports
with Velcro inside of panels, then place shelf on top of supports.
5) Attach Counter Top to assembled pedestal base. See
Side Panel
Screw
Front Panel
Cap
NOTE: Remove pins for floor from
side panels when packing.

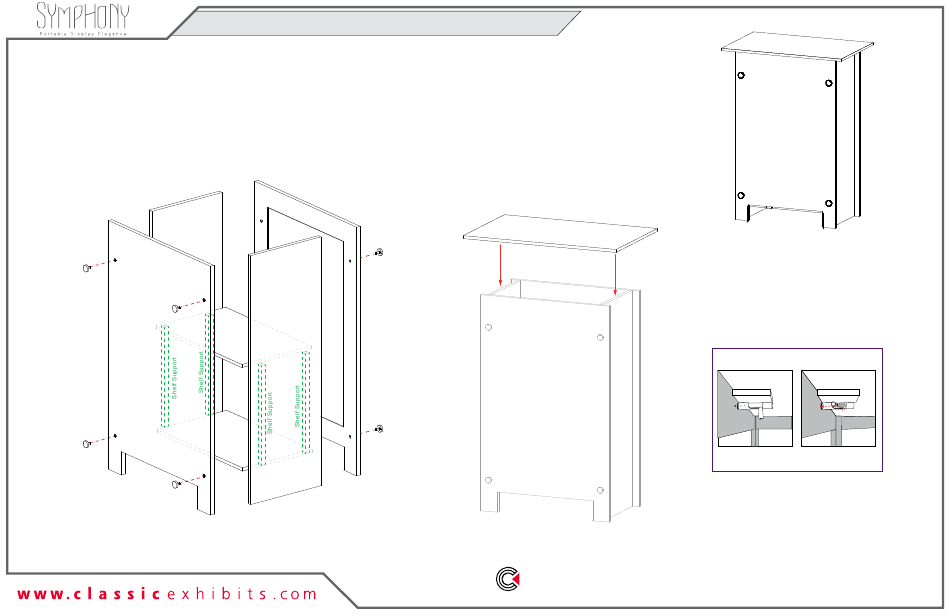

Pedestal Base Assembly
Symphony SYM-407 Portable Counter
Counter Top Attachment
detail.
Back Panel
(with Door)
Side Panel
Screw
Cap
Shelf
Floor
Counter Top
*
*
Pedestal Top Attachment
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
When assembled
*
Counter Top Attachment
1
2
Rotate pin. Spring
Align hole with pin.
will push pin into hole.
REV 4/2022
Advertisement
Table of Contents
Related Manuals for Symphony SYM-407
Summary of Contents for Symphony SYM-407
- Page 1 © 2022 REV 4/2022 Symphony SYM-407 Portable Counter Steps: 1) Attach pins at bottom interior of side panels. Note: Pins are designed to be slightly angled. 2) Use screw caps to secure side panels to front & back panels. 3) Slide floor into the bottom of assembled pedestal base. The floor will sit on pins of the side panels.
- Page 2 © 2022 General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 3 © 2022 Case Packing Top View of Each Level Shelf Shelf Counter Top Supports Supports Left & Right Front Panel Back Panel Side Panels Shelf & Floor Standoffs & Key Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 1 of 1...
