Item
Qty.
Description
--
2
17.25"h aluminum Leg (lower)
--
2
18.5"h aluminum Leg (upper)
--
1
36.5"h aluminum Leg (middle)
--
1
43"w x 21.5"d Counter Base
--
1
17.95"w x 17.92"d Counter Shelf
--
1
43"w x 21.5"d Counter Top
Assemble unit upside-down.
Lower Legs
Upper Legs
Symphony SYM-403 Portable Counter
Steps:
Note: Assemble counter upside-down.

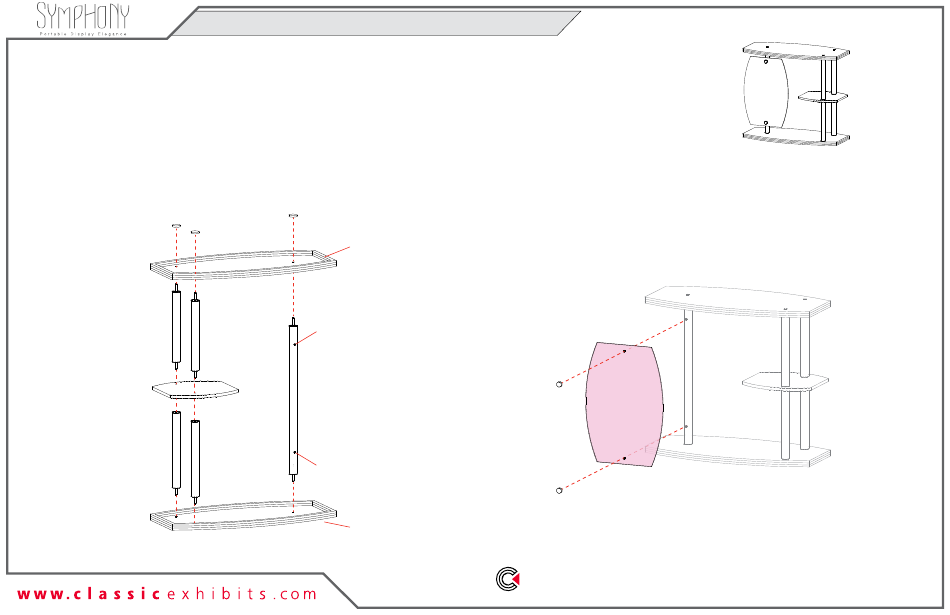

1) Attach upper legs to underside of Counter Top. Twist to tighten.
2) Connect lower Legs through Counter Shelf to upper Legs, as shown.
3) Attach middle leg to underside of Counter Top. Twist to tighten.
Note: Holes for standoff graphic should face front of assembly.
4) Place Counter Base over lower & middle Legs & secure with screw caps.
5) Turn counter unit over & attach Graphic to middle leg, using screw caps.
screw
caps
Counter Base
hole
Middle Leg
Shelf
hole
Counter Top
screw
caps
Graphic
