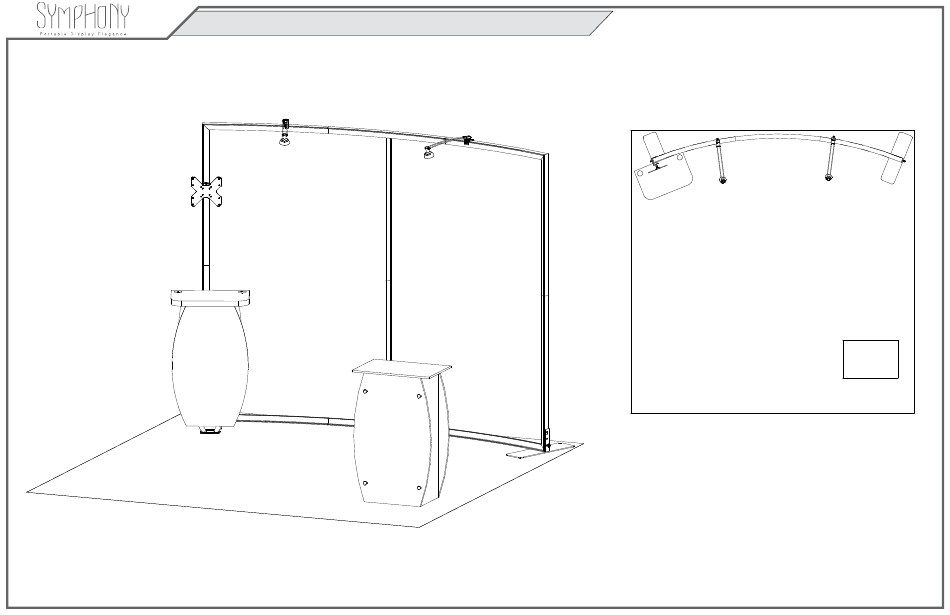

- Page 1 © 2024 SYK-1049 - Symphony 10’ x 10’ Inline 10’ 10’ Plan View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2024 Plan View = 1 sq ft...
-
Page 3: General Setup Instructions
© 2024 General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2024 Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2024 Case Packing SYK-1049 Backwall Top View of Each Level 11,12 Counter Lights 5,7,8,10 Workstation Legs Graphics Graphic Setup Hardware Monitor Mount Counter Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Case 1 of 2...
- Page 6 © 2024 Case Packing SYM-408 Counter Top View of Each Level Counter Top Left & Right Back Panel Front Panel Side Panels Shelf Standoffs & Key Shelf Supports Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 2 of 2...
-
Page 7: Front View
© 2024 Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 41”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 41”h TSP49 Vertical Extrusion together, using Tool-less Spline Connectors... - Page 8 © 2024 Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphic to front of assembled frame. Corner A Corner B When assembled Corner D Corner C Step 1 It is important to first insert Insert corner A. Turn edge of graphic into each alternate graphic so silicon welt is corner, then to the sides of...
-
Page 9: Top View
© 2024 Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail. - Page 10 © 2024 Backwall Attachments (cont’d) Steps: 1) Attach Monitor Mount to backwall vertical as shown. Monitor Mount Bracket Attachment detail. Monitor Mount Attachment Hook the Mounting Bracket Slide bracket forward, then over the vertical extrusion. down onto V4 connector. V4 connectors stay permanently attached to vertical extrusion.
- Page 11 © 2024 SYM-408 Counter Assembly Steps: 1) Use screw caps to secure side panels to front & back panels. 2) Connect shelf supports with Velcro inside of panels, then place shelf on top of supports. 3) Attach Counter Top to assembled pedestal base. See Counter Top Attachment detail.
