Symphony SYM-401 Setup Instructions

Portable counter

Advertisement

Quick Links

© 2024
*

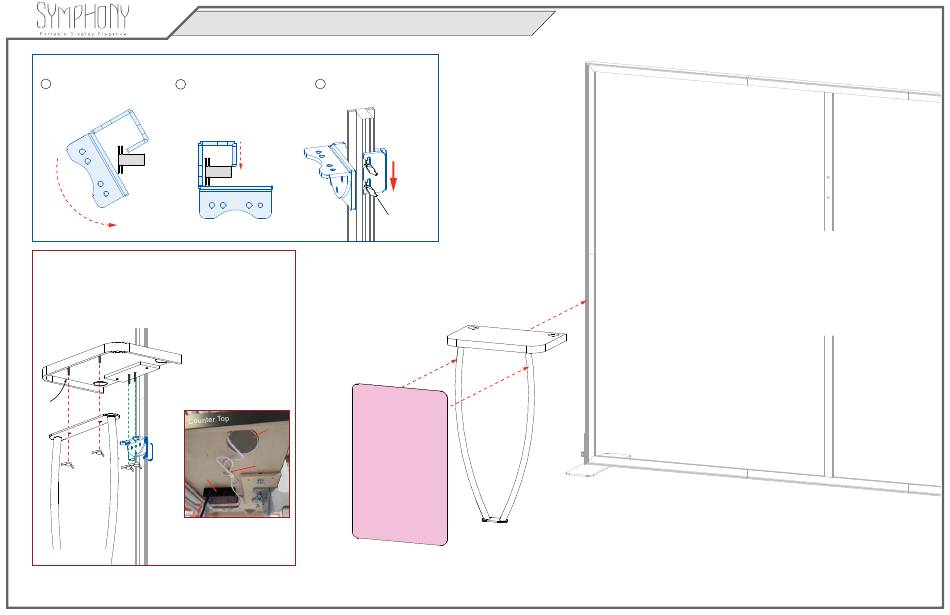

Workstation Bracket Attachment
Hook the Mounting Bracket
Slide bracket forward, then
1
2
over the vertical extrusion.
down onto V4 connector.
V4 connectors stay permanently
attached to vertical extrusion.
Mounting
Bracket
Extrusion
TOP VIEW
Workstation Assembly
1) Attach threaded studs on underside
3) Attach power cords to
of Counter Top to Counter Legs;
wireless chargers.
secure with wing nuts.
Keep cords attached to
underside of counter top.
2) Connect Counter Top to
Mounting Bracket, using
wing nuts.
Counter Top
Threaded
Studs
Mounting
Bracket
Wing
charging
block
nuts
To Power
Counter
Underside View of Counter
Legs
UNDERSIDE VIEW
Symphony SYM-401 Portable Counter
Tighten thumb screws to
3
secure connection to inside
of frame.
Slide down onto
V4 connector
Slide
Bracket
forward
Bracket
V4
Tighten knobs
SIDE VIEW
to secure.
Wireless
charging
pad
G ra ph ic
power
cords
*
Workstation
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
Steps:
1) Attach Workstation Mounting Bracket
to backwall vertical as shown.
See
Workstation Bracket Attachment
detail.
2) Assemble Workstation legs & counter top to
bracket. See
Workstation Assembly
detail.
3) Affix
Graphic
to front of workstation assembly,
using Velcro.
