CAMDEN Column CM-8436 Series Installation Instructions

Door Activation Devices
CM-8436 Series
Column™ Switch with Back Box
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
1 - CM-8436 Column™ Switch
1 - CM-8436 Back Box
4 - #14 x 1-1/2" Slot Hex Head Tapping Screws
1. GENERAL DESCRIPTION
Camden CM-8436 Series Column™ Switches are ADA compliant
switches that activate from any angle, have a Back Box for easy
mounting, and molded impact and flame-resistant End Caps. It
utilizes two fully redundant switches, which can be hard-wired or
fitted with Kinetic or Lazerpoint™ wireless transmitters.
2. SPECIFICATIONS
Contact Rating 15 amps @ 30 VDC
2 x SPDT momentary
Contacts
Contact switch (Form C), UL listed
Construction Heavy duty extruded aluminum
Finish Anodized clear, dark bronze or black
4 x #14 x 1-1/2" Tapping Screws with
Mounting
anchor plugs or 1/4"-20 Machine Screws
Actuator Width 3" (76mm)
Dimensions 37-1/2" H x 4-5/8" W x 2-7/16" D
(overall) (955mm x 118mm x 62mm)
Code Requirements:
If installed according to these instructions the CM-8436 Column™
Switch will meet the requirements of the California Building Code
(Section 1117B.6, Date: 2009), and Section 3.8.3.3.17(b) of the
Ontario Building Code.
CM-8436 complies with the National Building Code of Canada
reference to CSA Regulation 5.2.9.3 (c) ii.
4 - Nylon Anchor Plugs #10 - 14 Screws
4 - 1/4"-20 Machine Screws
2 - Wire Nuts C/W Spring

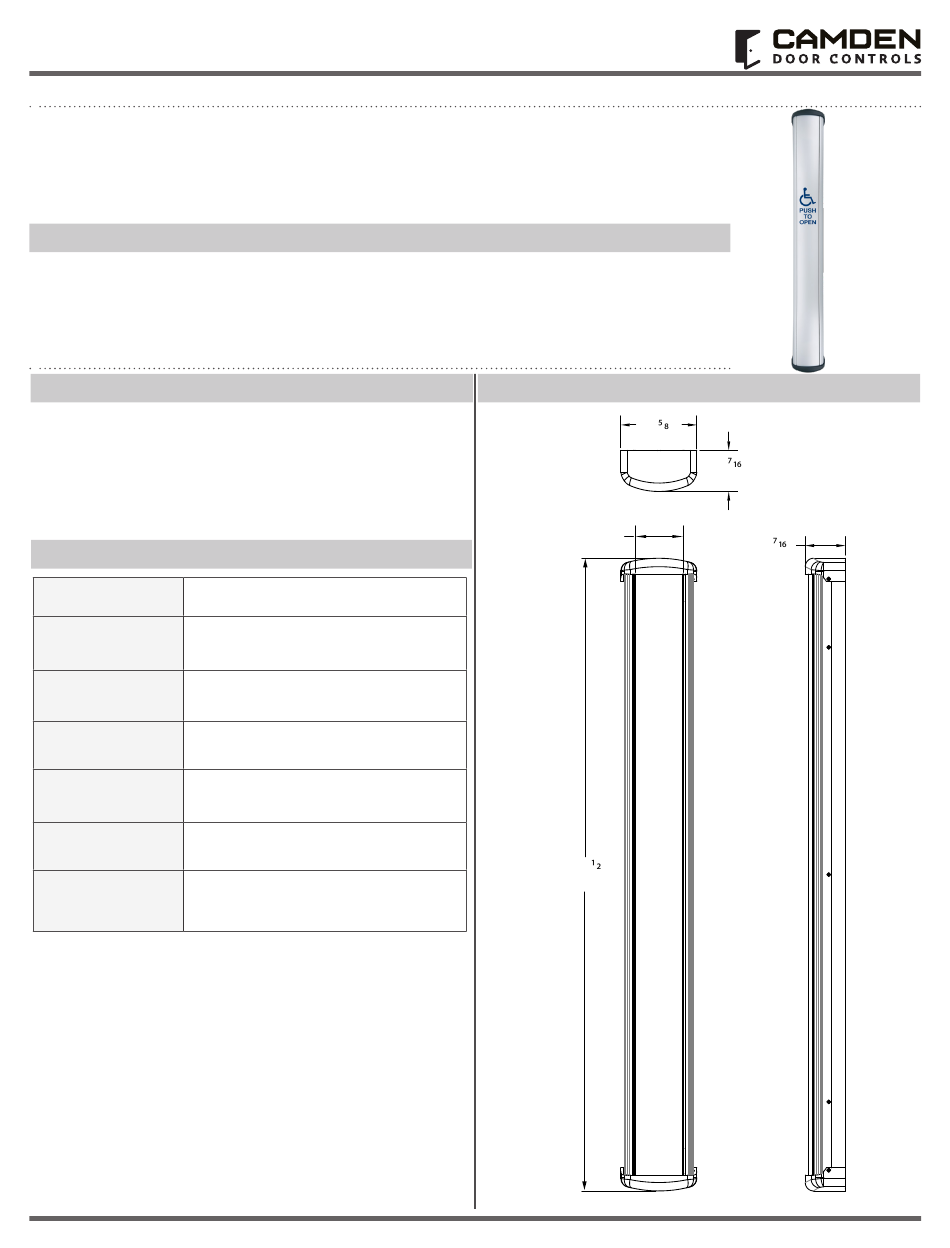

3. DIMENSIONS
37 ⁄ "
[955mm]
4 ⁄ "
[118mm]
2 ⁄ "
[62mm]
3"
2 ⁄ "
[76mm]
[62mm]
Figure 3.1 Dimensions
Page 1 of 4
