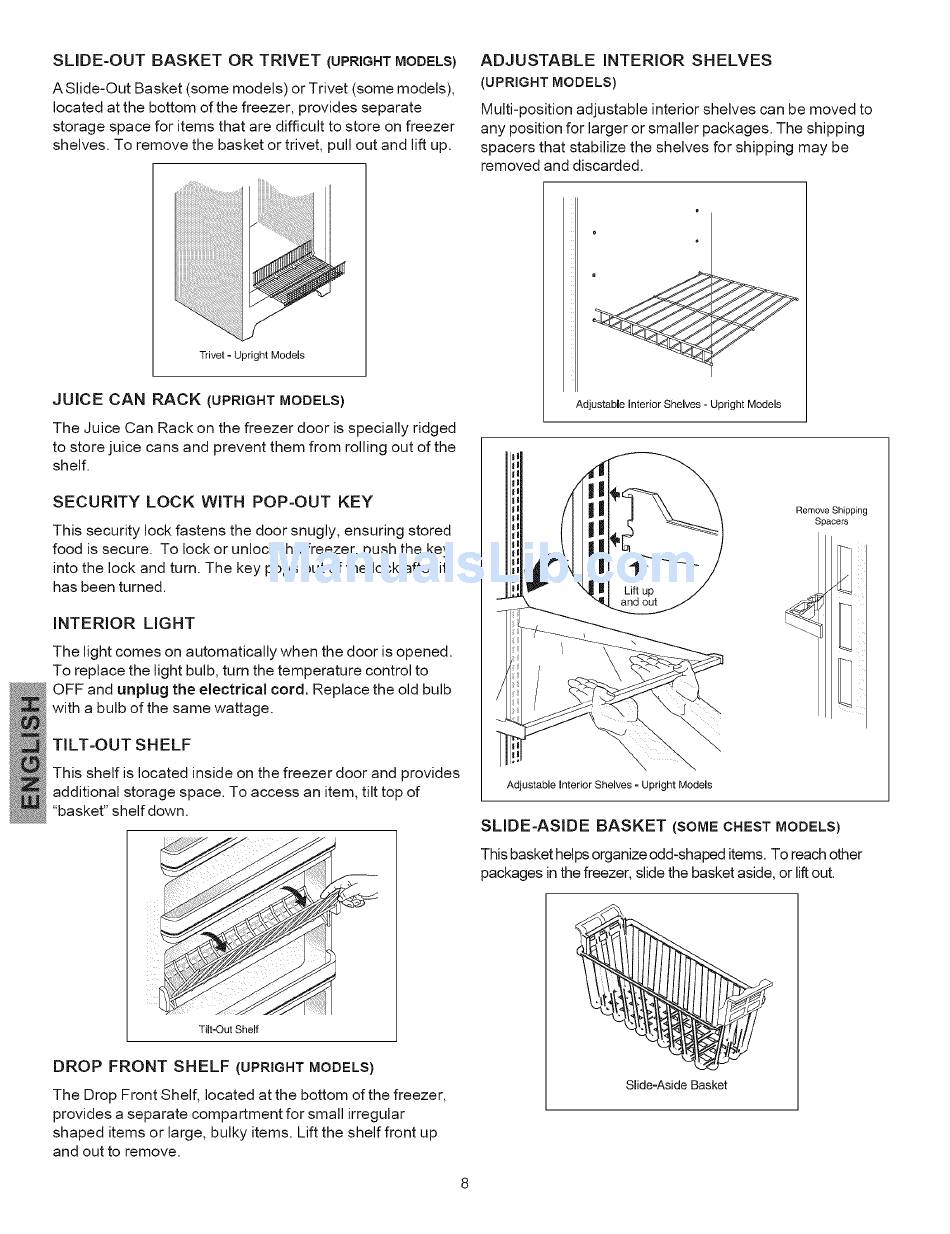

SLIDE-OUT BASKET OR TRIVET (UPRIGHTMODELS)
A Slide-Out Basket (some models) or Trivet (some models),
located at the bottom of the freezer, provides separate
storage space for items that are difficult to store on freezer
shelves. To remove the basket or trivet, pull out and lift up.
Trivet - Upright Models
JUICE CAN RACK (UPRIGHT MODELS)
The Juice Can Rack on the freezer door is specially ridged
to store juice cans and prevent them from rolling out of the
shelf.
SECURITY LOCK WITH POP-OUT KEY
This security lock fastens the door snugly, ensuring stored
food is secure. To lock or unlock the freezer, push the key
into the lock and turn. The key pops out of the lock after it
has been turned.
INTERIOR LIGHT
The light comes on automatically when the door is opened.
To replace the light bulb, turn the temperature control to
OFF and unplug the electrical cord. Replace the old bulb
with a bulb of the same wattage.
TILT-OUT SHELF
This shelf is located inside on the freezer door and provides
additional storage space. To access an item, tilt top of
"basket" shelf down.
Tilt-Out Shelf
DROP FRONT SHELF (UPRIGHT MODELS)
The Drop Front Shelf, located at the bottom of the freezer,
provides a separate compartment for small irregular
shaped items or large, bulky items. Lift the shelf front up
and out to remove.
ADJUSTABLE INTERIOR SHELVES
(UPRIGHT MODELS)
Multi-position adjustable interior shelves can be moved to
any position for larger or smaller packages. The shipping
spacers that stabilize the shelves for shipping may be
removed and discarded.
Adjustable Interior Shelves - Upright Models
|
|
Adjustable Interior Shelves - Upright Models
Remove Shipping
Spacers
SLIDE-ASIDE BASKET (SOME CHEST MODELS)
This basket helps organize odd-shaped items. To reach other
packages in the freezer, slide the basket aside, or lift out.
Slide-Aside Basket
