EVM User's Guide: TPSM83102EVM
TPSM83102EVM-125 Evaluation Module
Description

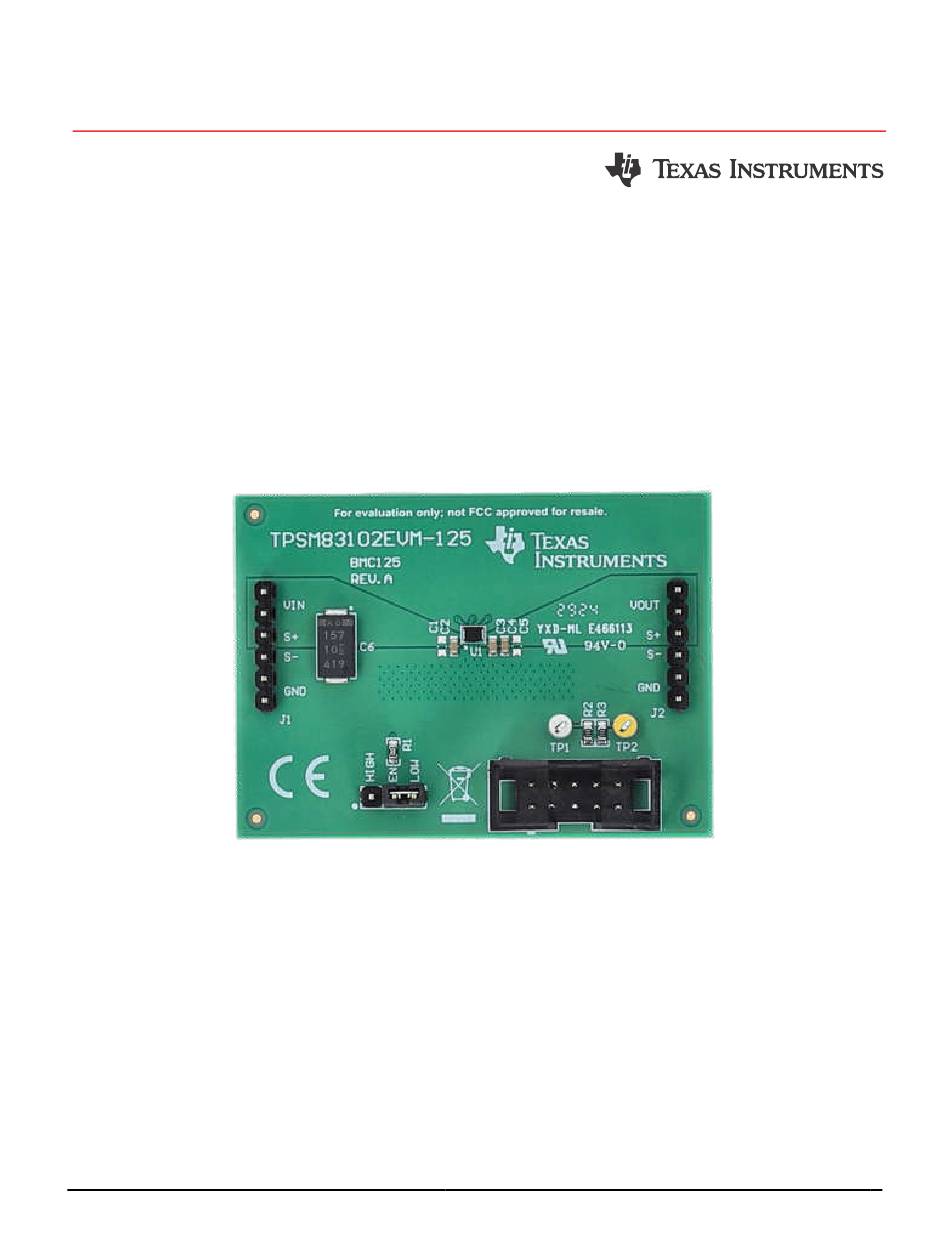

The TPSM83102EVM-125 evaluation module is
designed to help users easily evaluate and test the
operation and functionality of the TPSM83102 and
TPSM83103 buck-boost converter family. The EVM
has the output voltage set to 3.3V . The output voltage
can be programmed via I
and 5.5V. The EVM operates with an input voltage
between 1.6V and 5.5V and the output current can go
up to 1.5A when Vin≥2.7V.
SLVUD04 – AUGUST 2024
Submit Document Feedback
2
C interface between 1.0V
TPSM83102EVM-125
Copyright © 2024 Texas Instruments Incorporated
Features
•
Output current 1.5A (Vin > 2.7V to Vout = 3.3V)
•
Over 92% efficiency Vin=3.6V to Vout=3.3V
Iout=1A
•
8µA operating quiescent current
•
I2C configurable
•
Fixed frequency operation (2.0MHz)
•
Auto PFM or forced PWM mode selectable
TPSM83102EVM-125 Evaluation Module
Description
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPSM83102EVM-125
Summary of Contents for Texas Instruments TPSM83102EVM-125
- Page 1 Description EVM User's Guide: TPSM83102EVM TPSM83102EVM-125 Evaluation Module Description Features The TPSM83102EVM-125 evaluation module is • Output current 1.5A (Vin > 2.7V to Vout = 3.3V) designed to help users easily evaluate and test the • Over 92% efficiency Vin=3.6V to Vout=3.3V...
-
Page 2: Kit Contents
The only difference between TPSM83102 and TPSM83103 is the ENABLE bit internal. This user’s guide describes the operation and use of the TPSM83102EVM-125. This document includes setup instructions for the hardware, together with the schematic and the PCB layout of the EVM. Throughout this document, the abbreviations EVM, and the term evaluation module are synonymous with TPSM83102EVM-125, unless otherwise noted. - Page 3 Hardware 2 Hardware 2.1 Background The TPSM83102EVM-125 uses the TPSM83102 or TPSM83103 integrated circuit (IC) , and is set to 3.3V output voltage. The EVM operates with an input voltage between 1.6V and 5.5V. 2.2 Setup This section describes how to properly use the TPSM83102EVM-125.
- Page 4 USB2ANY adapter using the supplied 10-pin ribbon cable. The connectors on the ribbon cable are keyed to prevent incorrect installation. A quick adapter connection overview is shown in Figure 3-1. Figure 3-1. Quick Connection Overview TPSM83102EVM-125 Evaluation Module SLVUD04 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 5: User Interface Operation
The Settings screen provides control over the output voltage and operating modes of the TPSM83102 and TPSM83103. Users can also configure the interface address here. Figure 3-3. GUI Settings Screen SLVUD04 – AUGUST 2024 TPSM83102EVM-125 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 6 (if applicable). Refer to Section 3.4 for a detailed description of the TPSM83102 and TPSM83103 registers. Figure 3-4. GUI Register Map Screen TPSM83102EVM-125 Evaluation Module SLVUD04 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 7: Register Map
Enable short circuit hiccup protection 0 : DISABLE, 1 : ENABLE Not used CONVERTER_EN 0b0_TPSM831012 Enable Converter ('AND'ed with EN-pin) 0 : DISABLE, 1 : ENABLE 0b1_TPSM831013 SLVUD04 – AUGUST 2024 TPSM83102EVM-125 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 8 Defines the ramp time for the Vo soft start ramp 000: 0.256ms 001: 0.512ms 010: 1.024ms 011: 1.920ms 100: 3.584ms 101: 7.552ms 110: 9.600ms 111: 24.320ms TPSM83102EVM-125 Evaluation Module SLVUD04 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
