EVM User's Guide: TPSM8287A06BASEVM TPSM8287A12BBSEVM
TPSM8287A06 TPSM8287A12
Parallelable, I
Evaluation Module
Description

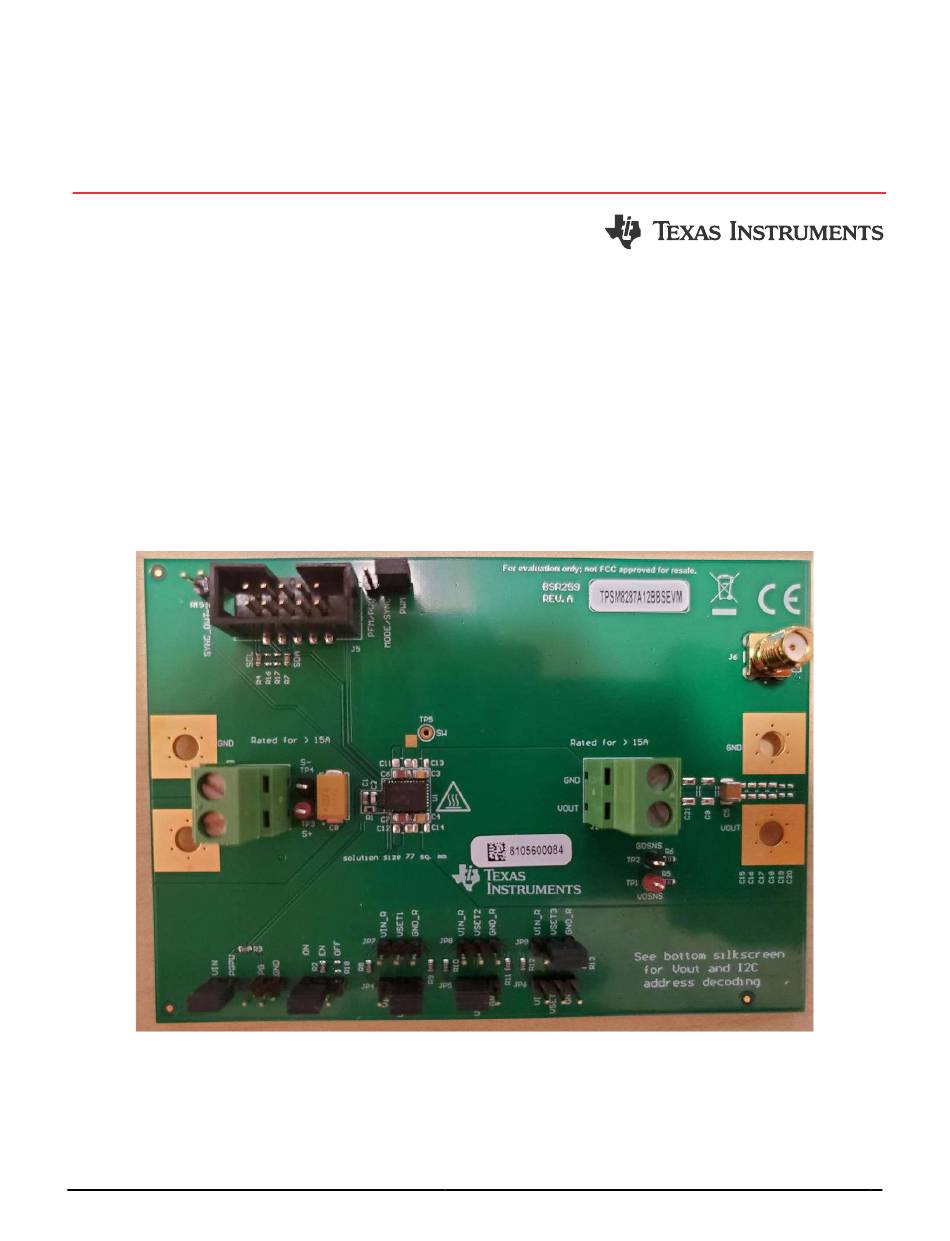

The TPSM8287A12BBSEVM evaluation module
(EVM) facilitates the evaluation of the TPSM8287A12,
a 12-A pin-to-pin compatible step-down power module
2
with an I
C interface, remote sense, and frequency
synchronization in a 4.5 mm × 6.8 mm x 1.8 mm over
molded QFN package. The TPSM8287A06BASEVM
evaluation module (EVM) facilitates the evaluation of
the TPSM8287A06, a 6-A version. The EVMs provide
an adjustable output voltage, with 0.8% accuracy,
between 0.4V and 3.35V from input voltages from 2.7
V to 6 V.
SLUUCV0A – AUGUST 2023 – REVISED OCTOBER 2023
Submit Document Feedback
2
C, Remote Sense 6-A, 12-A Power Module
Copyright © 2023 Texas Instruments Incorporated
Features
6-A and 12-A output current power module
with integrated inductor in an over molded QFN
package
Excellent thermal performance (θ
4.5-mm x 6.8-mm power module provides 77-mm
total solution-size with 1.8-mm height
Start-up output voltage adjustable through jumpers
to 1 of 59 values
Highly accurate output voltage with remote sense
and adjustable control loop compensation
2
Parallelable, I
C, Remote Sense 6-A, 12-A Power Module Evaluation Module
Description
= 19.5 °C/W)
JA
2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPSM8287A06BASEVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TPSM8287A06BASEVM

  • Page 1 Description EVM User's Guide: TPSM8287A06BASEVM TPSM8287A12BBSEVM TPSM8287A06 TPSM8287A12 Parallelable, I C, Remote Sense 6-A, 12-A Power Module Evaluation Module Description Features The TPSM8287A12BBSEVM evaluation module • 6-A and 12-A output current power module (EVM) facilitates the evaluation of the TPSM8287A12,...
  • Page 2: Kit Contents

    The devices can be operated without the I C interface to provide a high current, fixed-output-voltage power supply. Parallelable, I C, Remote Sense 6-A, 12-A Power Module Evaluation Module SLUUCV0A – AUGUST 2023 – REVISED OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 3: Header Information

    Before applying VIN, verify that all 3 jumpers are installed: to JP4 or JP7, JP5 or JP8, and JP6 or JP9. Do not leave the VSETx pins floating. SLUUCV0A – AUGUST 2023 – REVISED OCTOBER 2023 Parallelable, I C, Remote Sense 6-A, 12-A Power Module Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 4: Test Points

    GUI or the link symbol at the very bottom left of the GUI. Parallelable, I C, Remote Sense 6-A, 12-A Power Module Evaluation Module SLUUCV0A – AUGUST 2023 – REVISED OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 5 Achieving a Clean Start-up by Using a DC/DC Converter with a Precise Enable-pin Threshold technical brief details. Keep the value of R2 above 15 kΩ. SLUUCV0A – AUGUST 2023 – REVISED OCTOBER 2023 Parallelable, I C, Remote Sense 6-A, 12-A Power Module Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 6 Figure 4-1. Thermal Performance (TPSM8287A12BBSEVM, V = 5 V, V = 0.9 V, I = 12A) Figure 4-2 shows the thermal performance of the TPSM8287A06BASEVM. Figure 4-2. Thermal Performance (TPSM8287A06BASEVM, V = 5 V, V = 0.9 V, I = 6A)
  • Page 7: Frequency (Hz)

    100000 1000000 Frequency (Hz) Figure 4-3. Loop Response Measurement (V = 5 V, V = 0.9 V, I = 12A) Figure 4-4 shows the loop response measurement of the TPSM8287A06BASEVM. -120 Gain (dB) -150 Phase (°) -180 1000 10000 100000...
  • Page 8 Hardware Design Files www.ti.com 5 Hardware Design Files 5.1 Schematics Figure 5-1 Figure 5-2 show the EVM schematic. The TPSM8287A06BASEVM uses the TPSM8287A06BASRDVR IC. The TPSM8287A12BBSEVM uses the TPSM8287A12BBSRDVR IC. 49.9 VI N VI N VOUT VOUT 22µF 22µF 22µF 22µF...
  • Page 9 0x43 1.9V GND_R 0x43 1.95V VIN_R 0x43 1.00M 1.00M Figure 5-2. TPSM8287A12BBSEVM Schematic SLUUCV0A – AUGUST 2023 – REVISED OCTOBER 2023 Parallelable, I2C, Remote Sense 6-A, 12-A Power Module Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 10: Pcb Layouts

    Figure 5-6. Internal Layer 2 Figure 5-7. Internal Layer 3 Figure 5-8. Internal Layer 4 Parallelable, I C, Remote Sense 6-A, 12-A Power Module Evaluation Module SLUUCV0A – AUGUST 2023 – REVISED OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 11 Hardware Design Files Figure 5-9. Bottom Layer Figure 5-10. Bottom Assembly (Mirrored) SLUUCV0A – AUGUST 2023 – REVISED OCTOBER 2023 Parallelable, I C, Remote Sense 6-A, 12-A Power Module Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 12: Bill Of Materials (Bom)

    • Added Figure 5-1 ...............................8 • Added TPSM8287A06BASEVM to Table 5-1 ....................Parallelable, I C, Remote Sense 6-A, 12-A Power Module Evaluation Module SLUUCV0A – AUGUST 2023 – REVISED OCTOBER 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
