Music Touch Wall
SP7228
User Manual
14282
September 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP7228 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fun & Function SP7228

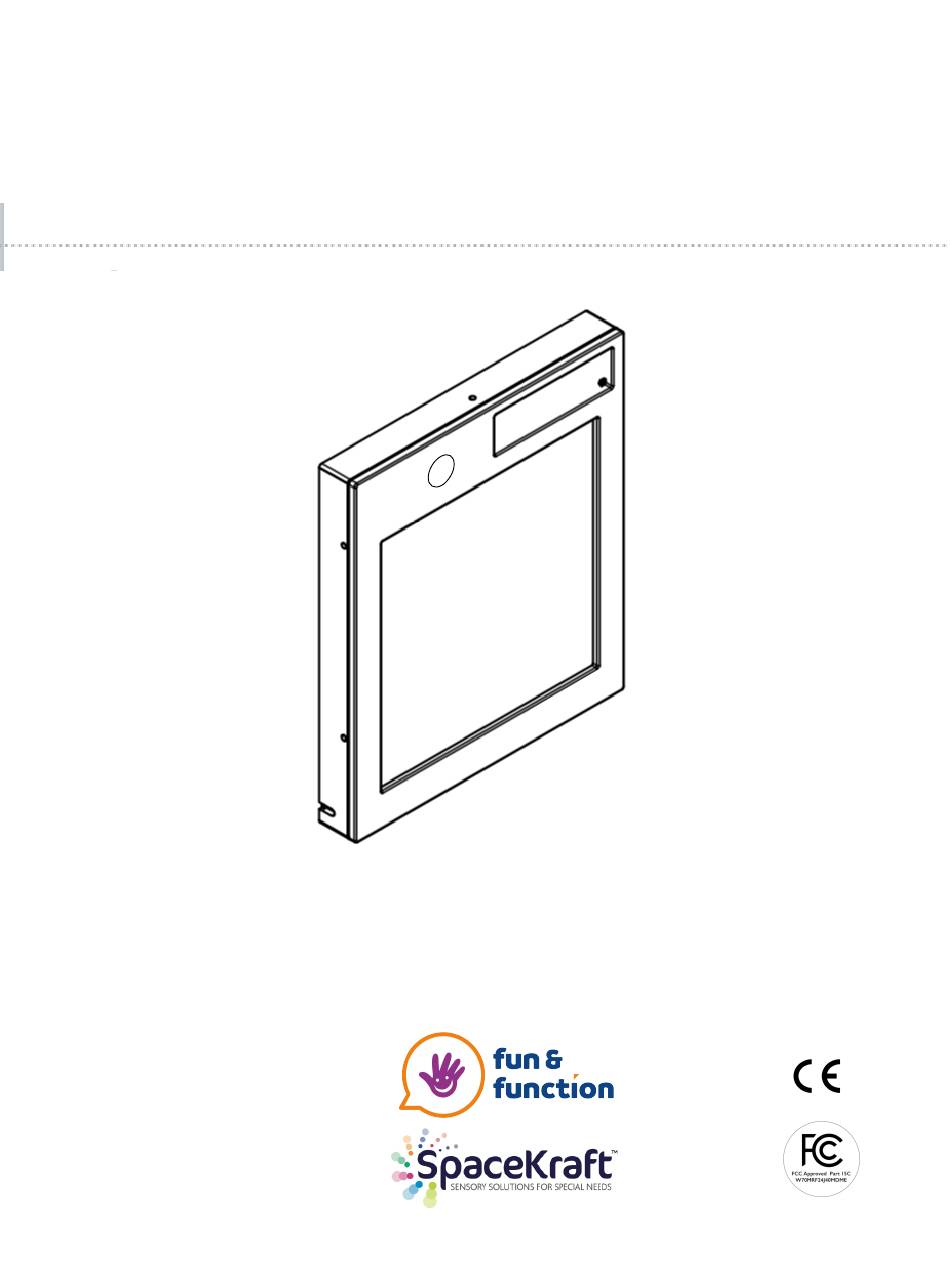

  • Page 1 Music Touch Wall SP7228 User Manual 14282 September 2024...
  • Page 2: Table Of Contents

    Contents Warnings Description Includes Installation Connecting the Power Panel Operation Programs - How to Operate 7-11 Troubleshooting Cleaning and Maintenance Guarantee Technical Contact us...
  • Page 3: Warnings

    Warnings All our equipment is designed for users with special needs. We suggest supervision at all times when using this equipment. For indoor use only. The panel uses a mains power supply. Do not use any other power cord other than the one supplied. Before plugging in the power cord, ensure it is the cord supplied with your product.
  • Page 4: Installation

    Installation...
  • Page 5 Attach wall bracket to wall with appropriate hardware for the wall type. Important: Due to the weight of the interactive panel, it is essential the wall bracket is attached to the wall with appropriate hardware. Installation should be completed by a professional installer.
  • Page 6: Connecting The Power

    Connecting Power • Connect the power adapter to the socket on the left side of the panel Power Adapter • Connect the power cord to the power adapter and plug into the outlet Power Cord Panel Operation The front panel uses a touch sensitive LCD display and has no moving parts. Your display may look different due to our constant upgrading of firmware.
  • Page 7: Programs - How To Operate

    Program - Press this button to access the program menu. Press this to gain access to all the programs Speed - Press this button to activate the speed of any automated programs. Fade - Press this button to alter the fade time in-between colors Color - Press this button to alter the display panel color Dimmer - Press this button to alter the brightness.
  • Page 8 Speed - Press this button to adjust the speed. Speed Menu Speed 1 Speed 2 Speed 3 Speed 4 Speed 5 Speed 6 Speed 7 Speed 8 Speed 9 Speed 10 Press one of the buttons to change speed - 1 being slow Adjusting the Touch Wall Features Fade - Press this button to alter the fade time in-between colors Fade 1...
  • Page 9 Brightness - Press this button to adjust the brightness. 100% Press one of the buttons to change brightness - 10% being low Volume - Press this button to adjust the speaker volume Volume Press one of the buttons to change volume - 10% being low...
  • Page 10 Splash screen Press the program button to move into the program menu and choose a program Programs All the programs require users to touch the screen Touch the screen and draw trails of Color. Use the speed, fade, Color, dimmer and volume controls to change how the program reacts. Touch the screen and draw a series of crosses.
  • Page 11 Touch the screen and count using numbers. Use the speed, fade, Color, dimmer and volume controls to change how the program reacts. Touch the screen and catch the end of the snake and watch the screen explode with sound and light. Use the speed, fade, Color, dimmer and volume controls to change how the program reacts.
  • Page 12: Troubleshooting

    Troubleshooting Q: My display is completely blank and the panel is not working. A: Make sure the power supply is turned on and the power cord is plugged into an electrical outlet. If the power supply is plugged into the outlet and it is still not working, check the fuse in the breaker box. If the panel is still not working, contact Fun and Function.
  • Page 13: Fcc

    Information about products that generate electrical noise USA and Canada This device complies with FCC and industry Canada RF radiate exposure limits set forth for general population. It must not not be co-located or operating in conjunction with any other antennas or transmitters. This device complies with Part 15 of the FCC rules.
  • Page 14: Guarantee

    Guarantee CONDITIONS OF GUARANTEE This guarantee is in addition to and does not in any way affect any statutory or other rights of consumer purchasers .If within the applicable guarantee period (as shown in 8 below) the appliance proves to be defective by reason of faulty design, workmanship or materials, we undertake subject to the following conditions to have the defective appliance (or any part or parts thereof) repaired or at our discretion replaced free of 1.
  • Page 15: Technical

    Technical The Musical Touchwall is a low voltage device using a power supply that is double insulated. A class 2 device and does not require portable appliance testing. We do however suggest an annual visual inspection looking for any damaged parts. Electrical data Table 1 Supply Voltage...
