Fun & Function SP7172 Installation Manual

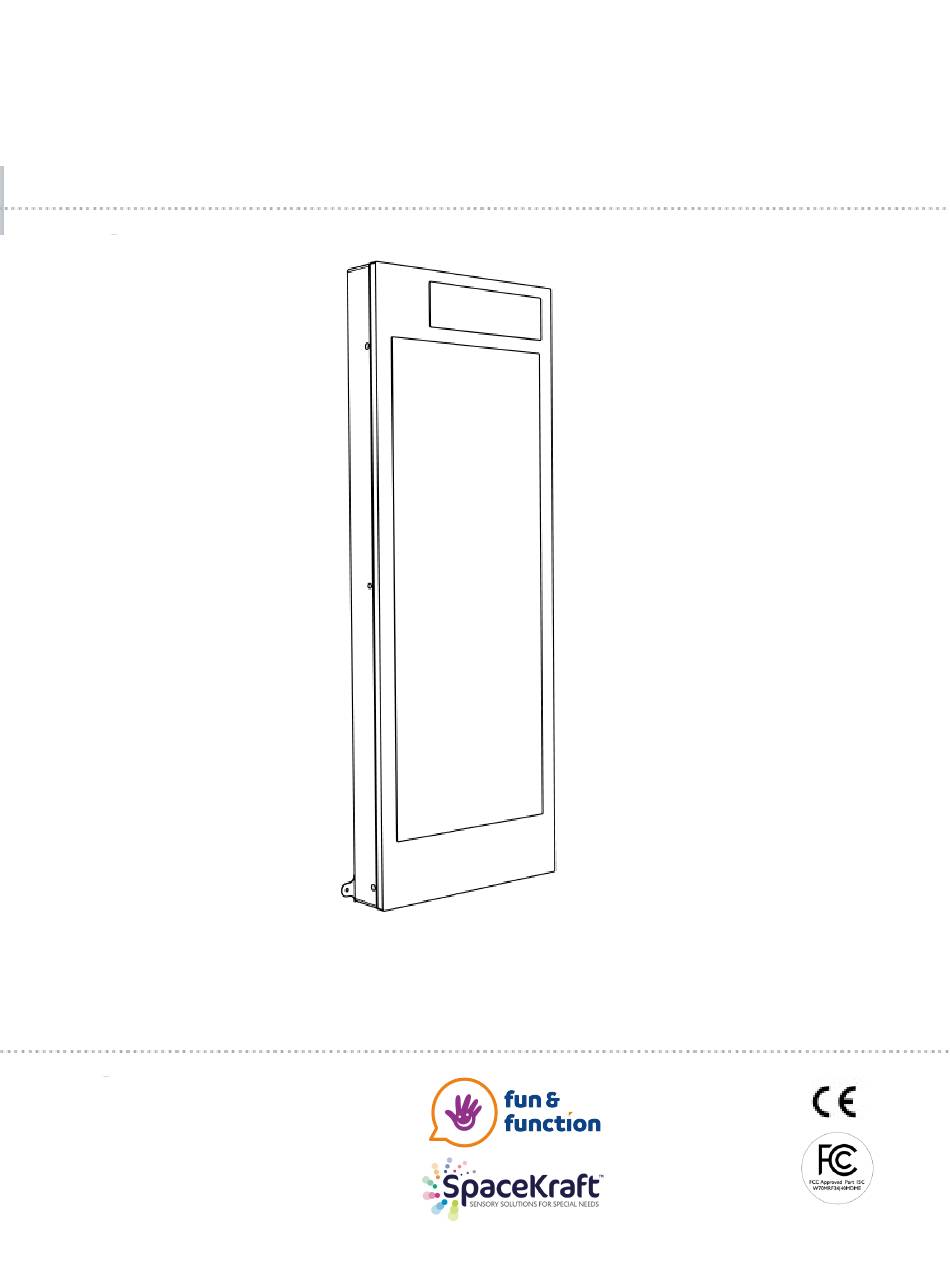

Sound activated light up wall panel

Advertisement

Quick Links

Sound Activated Light Up Wall Panel
SP7172
Installation Manual
40250
July 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP7172 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fun & Function SP7172

  • Page 1 Sound Activated Light Up Wall Panel SP7172 • Installation Manual 40250 July 2022...
  • Page 2: Table Of Contents

    Contents Warnings Description Includes Installation Operating Panel 7-10 Troubleshooting Cleaning Maintenance Information Guarantee Technical Contact...
  • Page 3: Warnings

    Warnings This product is designed for users with special needs. Adult supervision is required during use at all times. For indoor use only. The equipment uses a mains power supply. This product was not designed to be free standing. It must be attached to a wall. Turn off the panel when cleaning.
  • Page 4: Installation

    Installation The Sound Activated Light Up Wall Panel is designed to be installed on the wall with the supplied bracket. Screws should be used that are recommended for the type of wall the panel will be installed (screws are not included). The Sound Activated Light Up Wall Panel weighs 44 lbs.
  • Page 5 Step 2 Drill 2 x holes and screw bracket to wall using appropriate hardware. Holes in the wall bracket Step 3 Place the Sound Activated Light Up Wall Panel onto the wall bracket. Hook the bracket located on the back of the panel onto the wall bracket. Note: Lift the panel gently and set slowly into place until the brackets are securely connected.
  • Page 6 Step 4 • Mark through the holes on the bottom brackets using a pencil. Drill holes into the wall and use appropriate hardware to screw the panel onto the wall. These brackets stop the panel from being lifted off the wall bracket. Connecting the Power •...
  • Page 7: Operating Panel

    Operating Panel Front Panel The front panel uses a touch sensitive LCD display and has no moving parts. Your display may look different due to our constant upgrading of firmware. The display is self-explanatory. Turn on the panel using the Power/Standby button and play! Program menu Start up splash display 1 Auto Build...
  • Page 8 Programs and how to change them Program Menu Press Auto Build Bar up Bar right Line up Line right Trig up Trig right Random Auto Line Auto Random Press one of the buttons to choose a program Adjusting the speed - Some programs may work better if the speed is adjusted. Speed - Press this button to adjust the speed.
  • Page 9 Colors - Some programs will allow a choice of color options. Color Color Color Color Color Color Green Yellow Orange Lime Color Color Color Color Color Pink Purple Indigo Blue Color Color Color Cyan Aqua Rainbow Press one of the buttons to change display color Brightness - Press this button to adjust the brightness.
  • Page 10 Using the Sound Activated Light Up Wall Panel Choosing a program Press the program button to move into the program menu and choose a program Programs All the programs require users to touch the screen This program is automatic and requires no noise to activate. Use the speed, fade, color, dimmer to change how the program reacts.
  • Page 11: Troubleshooting

    Troubleshooting Q - My Sound Activated Light Up Wall Panel display is completely blank and nothing lights up. A - Check the power supply is turned on and the power cord is plugged in. If this still does not light up, check the fuse in the plug. Q - The display is not reacting to my sounds.
  • Page 12: Information

    Information about products that generate electrical noise USA and Canada This device complies with FCC and industry Canada RF radiate exposure limits set forth for general population. It must not be colocated or operating in conjunction with any other antennas or transmitters. This device complies with Part 15 of the FCC rules.
  • Page 13: Guarantee

    Guarantee CONDITIONS OF GUARANTEE This guarantee is in addition to and does not in any way affect any statutory or other rights of consumer purchasers .If within the applicable guarantee period (as shown in 8 below) the appliance proves to be defective by reason of faulty design, workmanship or materials, we undertake subject to the following conditions to have the defective appliance (or any part or parts thereof) repaired or at our discretion replaced free of charge.
  • Page 14: Technical

    Technical The Sound Activated Light Up Wall Panel is a low voltage device using a power supply that is double insulated. A class 2 device and does not require portable appliance testing. We do however suggest an annual visual inspection looking for any damaged parts. Electrical data Table 1 Supply Voltage...
