Summary of Contents for Fun & Function SpaceKraft SensaSoft SP7272

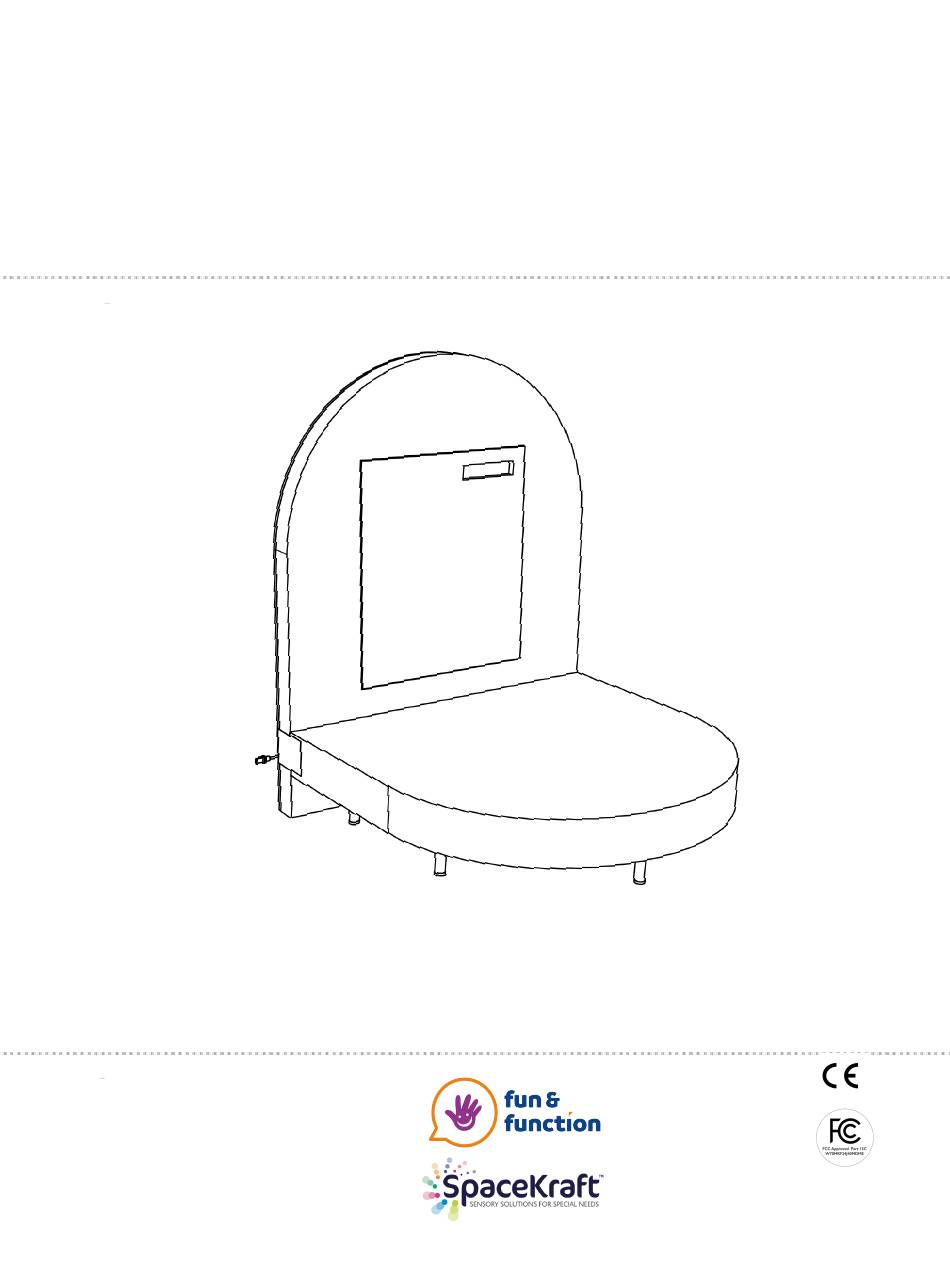

- Page 1 LED Infinity Light Panel with SensaSoft™ Panel and Platform SP7272 (panel), SP7196 (panel and platform) Installation Manual 82703_82706 December 2024...
-
Page 2: Table Of Contents
Contents Warnings Description Includes Installation Connecting Power to Panel Connecting Power to Switches Connecting Power to Other SensaSoft Products Panel Operation 7-10 Troubleshooting, Cleaning, Maintenance Guarantee Technical, Contact... -
Page 3: Warnings
Warnings All our equipment is designed for users with special needs. We suggest supervision at all times when using this equipment. For indoor use only. The panel uses a power supply. Do not use any other power cord other than the one supplied. -
Page 4: Installation
Installation The wall panel must be installed against a permanent wall of solid construction. An electrical outlet is required to make your panel work. The panel should be located near an electrical outlet. Brackets are supplied without screws or bolts. Proper screws or bolts will depend on the type of wall the panel will be attached to. - Page 5 We recommend two people lift the panel onto the wall brackets. Step 3 Identify the three brackets on the rear of the wall panel and lift on to the wall brackets. The panel should stand on the floor if fitted correctly. The brackets stop the panel from tipping. Lift onto the wall brackets 3 x Rear...
-
Page 6: Connecting Power To Panel
Step 5 Push the platform to the wall panel and attach the two Velcro strips to the side of the wall panel. Wall panel Platform Velcro Strips Connecting Power Your wall panel is fitted with a Sensory panel. This requires an electrical outlet. -
Page 7: Connecting Power To Switches
Connecting Switches Plug the switches into the appropriate colored switch jack sockets. Connecting other SensaSoft Products Every SensaSoft panel has an auxiliary cord to connect power to other SensaSoft panels. The entire range can run from one power outlet. To connect more panels, use the cord to the left of the wall panel. -
Page 8: Panel Operation
Panel Operation The front panel uses a touch sensitive LCD display and has no moving parts. The panel display may look different due to our constant upgrading of firmware. The display is mostly self explanatory. Turn the panel on using the power/Standby button and play ! When power is supplied to the Infinity panel the panel is displayed and quickly goes to the program menu. - Page 9 Adjusting the speed - Some programs may be switch activated therefore the speed function will not work Speed - Press this button to adjust the speed. This will take you into the Speed menu. Speed 1 Speed 2 Speed 3 Speed 4 Speed 5 Speed 7...
- Page 10 Infinity Tunnel Programs Next Color Rainbow 4 Color All Color Chase Color Ready Turn Round Steady Taking about Some programs require the supplied switches plugging into the front of the tunnel Rainbow - The lights create an automatic Color change like a rainbow. This requires no switch use.
-
Page 11: Troubleshooting, Cleaning, Maintenance
Troubleshooting Q: My display is completely blank and the panel is not working. A: Make sure the power supply is turned on and the power cord is plugged into an electrical outlet. If the power supply is plugged into the outlet and it is still not working, check the fuse in the breaker box. -
Page 12: Fcc
Information about products that generate electrical noise USA and Canada This device complies with FCC and industry Canada RF radiate exposure limits set forth for general population. It must not not be co-located or operating in conjunction with any other antennas or transmitters. This device complies with Part 15 of the FCC rules. -
Page 13: Guarantee
Guarantee CONDITIONS OF GUARANTEE This guarantee is in addition to and does not in any way affect any statutory or other rights of consumer purchasers. If within the applicable guarantee period (as shown in 8 below) the appliance proves to be defective by reason of faulty design, workmanship or materials, we undertake subject to the following conditions to have the defective appliance (or any part or parts thereof) repaired, or at our discretion, replaced free of charge. -
Page 14: Technical, Contact
Technical The panel is a low voltage device using a power supply that is double insulated. A class 2 device does not require portable appliance testing. We do however suggest an annual visual inspection looking for any damaged parts. The panel is fitted with a 3 Amp fuse. Unplug the panel from the electrical outlet before attempting to replace a fuse.
