Bright Light Sound Reactive Panel
SP7378
Installation Manual
40115
December 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP7378 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fun & Function SP7378

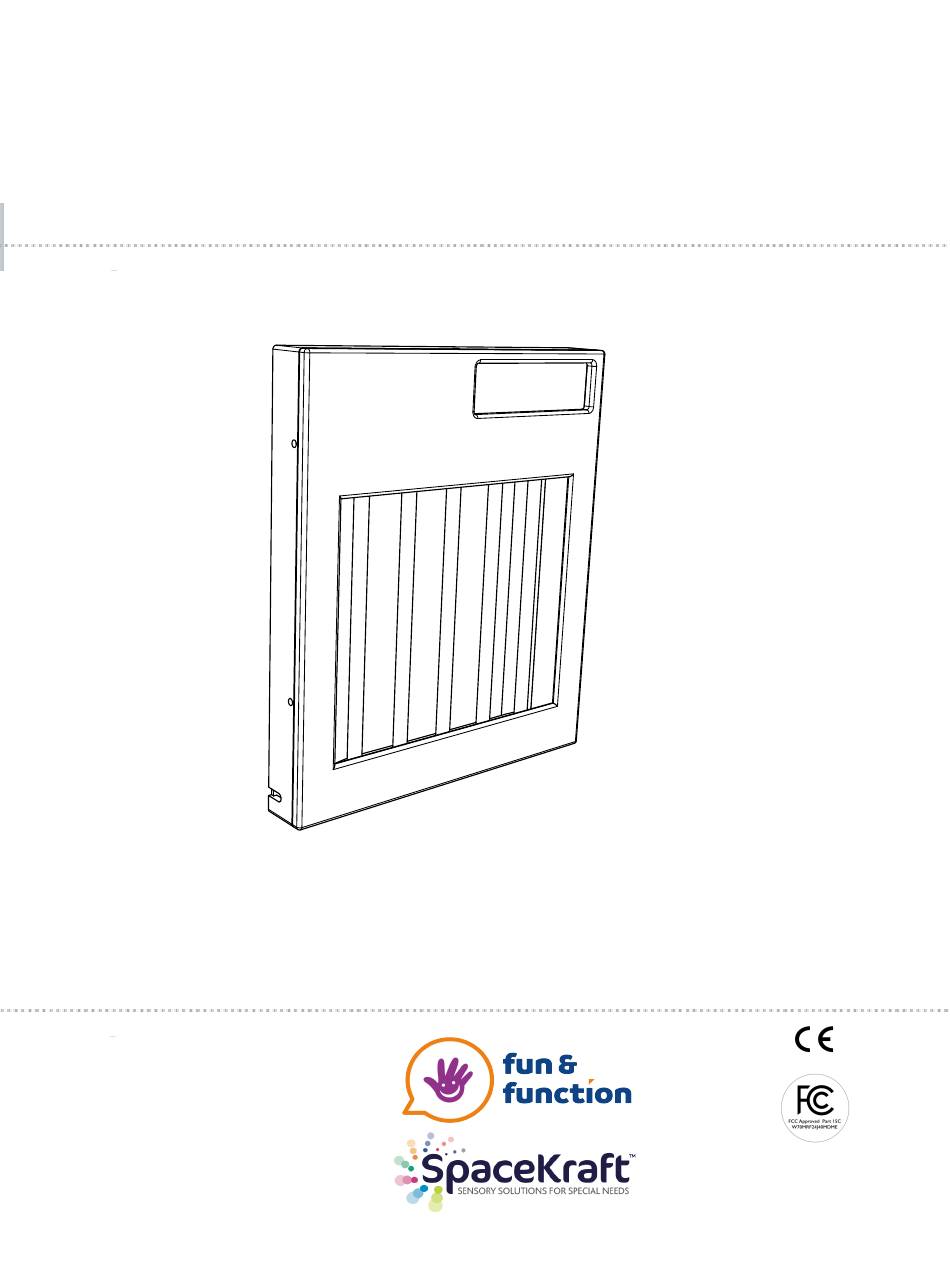

  • Page 1: Fcc 1

    Bright Light Sound Reactive Panel SP7378 Installation Manual 40115 December 2024...
  • Page 2: Table Of Contents

    Contents Warnings Description Includes Installation Connecting the Power Panel Operation Programs - How to Operate Troubleshooting Cleaning and Maintenance Guarantee Technical, Contact Us...
  • Page 3: Warnings

    Warnings This product is designed for users with special needs. Adult supervision is required during use at all times. For indoor use only. The equipment uses a power supply. Do not use any other power cord other than the one supplied. Before plugging in the power cord, ensure it is the cord supplied with your product. Using any other power cord other than the one supplied could cause damage to the product or blow a fuse.
  • Page 4: Installation

    Installation The Bright Light Sound Reactive Panel is designed to be installed on the wall with the supplied bracket. Screws should be used that are recommended for the type of wall the panel will be installed (screws are not included). The Bright Light panel weighs 44 lbs. (20 KG). Professional installation is recommended. The panel should be installed close to an electrical outlet to the left of the panel.
  • Page 5 Attach wall bracket to wall with appropriate hardware for the wall type. Important: Due to the weight of the interactive panel, it is essential the wall bracket is attached to the wall with appropriate hardware. Installation should be completed by a professional installer. Lift the panel onto the wall bracket.
  • Page 6: Connecting The Power

    Connecting Power Control Panel • Connect the power adapter to the socket on the left side of the panel Power Adapter (5v) Screen • Connect the power cord to the power adapter and plug into the outlet Power Cord Panel Operation The front panel uses a touch sensitive LCD display and has no moving parts.
  • Page 7: Programs - How To Operate

    Program - Press this button to access the program menu. Press this to gain access to all the programs Bargraph Speed - Press this button to activate the speed of any automated programs. Fade - Press this button to alter the fade time in-between colors. Color - Press this button to change the color of the display.
  • Page 8 There are a range of 5 programs to choose from. All use the built-in Microphone. Bar-graph Up -The display moves from bottom to top. Single Dot -The display moves a single dot of light. Vertical - Vertical lines left to right. All - All LEDs light up , color changes with sound.
  • Page 9: Adjusting Brightness

    Color - Press this button for color options. This will take you into the Color menu. Press one of the buttons to change the program Color Color Color Color Color Color Yellow Green Lime Orange Color Color Color Color Color Pink Purple Indigo...
  • Page 10: Troubleshooting

    Troubleshooting Q - My display is completely blank and the panel is not working. A - Make sure the power supply is turned on and the power supply is plugged into an electrical outlet. If the power supply is plugged into the outlet and it is still not working check the fuse in the breaker box. If this still does not work, contact Fun and Function.
  • Page 11 Information about products that generate electrical noise USA and Canada This device complies with FCC and industry Canada RF radiate exposure limits set forth for general population. It must not not be co-located or operating in conjunction with any other antennas or transmitters.
  • Page 12: Guarantee 1

    Guarantee CONDITIONS OF GUARANTEE This guarantee is in addition to and does not in any way affect any statutory or other rights of consumer purchasers .If within the applicable guarantee period (as shown in 8 below) the appliance proves to be defective by reason of faulty design, workmanship or materials, we undertake subject to the following conditions to have the defective appliance (or any part or parts thereof) repaired or at our discretion replaced free of charge.
  • Page 13 Technical The Bright Light Sound Reactive Panel is a low voltage device using a power supply that is double insulated. A class 2 device does not require portable appliance testing. Please schedule regular visual inspection looking for any damaged parts. Electrical data UKCA Complies to:...
