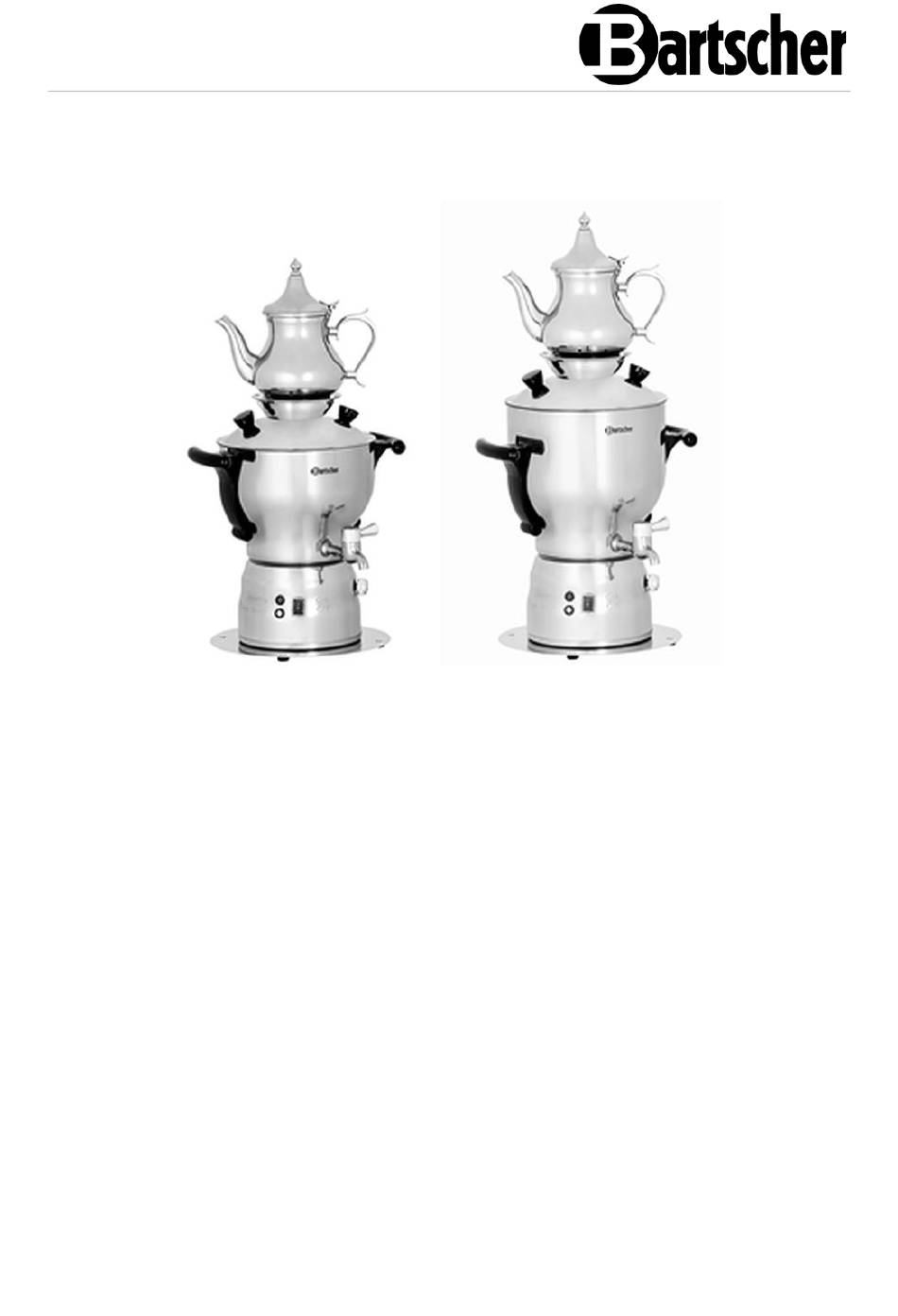

- Page 1 3L-1 / 5L 191007 - 191010...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-03-12...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle un d N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Hot Surfaces • Surfaces of the appliance become hot during operation. Burning hazard! High temperature remains for some time after switching the appliance off. • Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. •...
- Page 8 Safety Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge. • Children should be supervised to ensure that they are not playing with or switching the appliance on.
-
Page 9: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing tea and other hot and instant beverages. This appliance is intended for use in households and similar places, e.g.: –... -
Page 10: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Name: Samovar 3L-1 191007 Art. No.: Material: stainless steel, plastic Volume, in l: Temperature range, min.–max., in °C: 30 - 100 Max. glass/cup height. in mm: Power load: 2 kW | 220-240 V | 50/60 Hz... -
Page 13: Functions Of The Appliance
Technical Data Version / characteristics • Colour: silver • Control: electronic, knob • Temperature control: – stepless – thermostatic • Temperature maintaining function • Heating element: – 2 heating coils: 1.5 kW and 0.5 kW – boiling at 100°C with 1.5 kW heating coil –... -
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Teapot 2. Tea strainer 3. Spot on the lid where to put the 4. Lid handle (2x) teapot 5. Lid 6. Handle of the water tank (2x) 7. Temperature controller 8. -
Page 15: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 16: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 17 Installation and operation HINT! To reduce the heating-up phase, you may use warm water for filling. When using cold water, the heating-up phase takes longer. 2. Place the lid on the water tank. 3. Fill the teapot with fresh potable water. 4.
- Page 18 Installation and operation Water Boiling 1. To boil water switch the temperature controller to The heating indicator light (red) will come on, signalling that the appliance is heating up. After a few minutes the water boils. This is demonstrated by the emerging steam.
- Page 19 Installation and operation Tea preparation 1. Put the enclosed tea strainer into the teapot. 2. Put some tea leaves into the tea strainer (approx. 1 teaspoon per cup) or put the tea bag directly into the teapot (approx. 1 tea bag per approx. 1–2 cups).
- Page 20 Installation and operation 6. Take the teapot off the water tank. 7. Put the teapot under the dispensing tap. 8. Now brew tea using boiling, hot or warm water (depending on the type of tea used) from the dispensing tap. To do so, turn the dispensing tap handle forward.
- Page 21 Installation and operation Hot instant beverages In order to prepare hot instant beverages, e.g. instant coffee, pour the required amount into a cup and pour hot water from the samovar (sections 'Boiling water', 'Tea preparation'). Topping up water HOT STEAM! Risk of scalding! When pouring water into the hot water tank, steam may be released and scald your hands, arm and face! Carefully remove the lid from the water tank.
-
Page 22: Cleaning And Descaling
Cleaning and Descaling Overheating (dry-run) protection The appliance is equipped with an overheating (dry-run) protection. The thermostat automatically cuts off the device when there is no or too little water in the water tank. If the overheating protection (dry-run)is triggered, disconnect the appliance from the socket and allow it to cool down for a few minutes before refilling the water tank with fresh potable water. -
Page 23: Cleaning
Cleaning and Descaling Cleaning DANGER! Water may enter the appliance and cause injury by electric shock. Never clean the samovar base under running water. CAUTION! Health hazard due to the development of germs! Disinfect the water tank of the samovar at regular time intervals. 1. -
Page 24: Descaling
2. Perform the following steps: – Fill the water tank with approx. 500 ml of fresh potable water. – Add vinegar or 1 package (15 g) of Bartscher B15-30 descaler (art. no. 190065) to the water. Observe the indications on the packaging, –... -
Page 25: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. -
Page 26: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
