Summary of Contents for Bartscher 191001

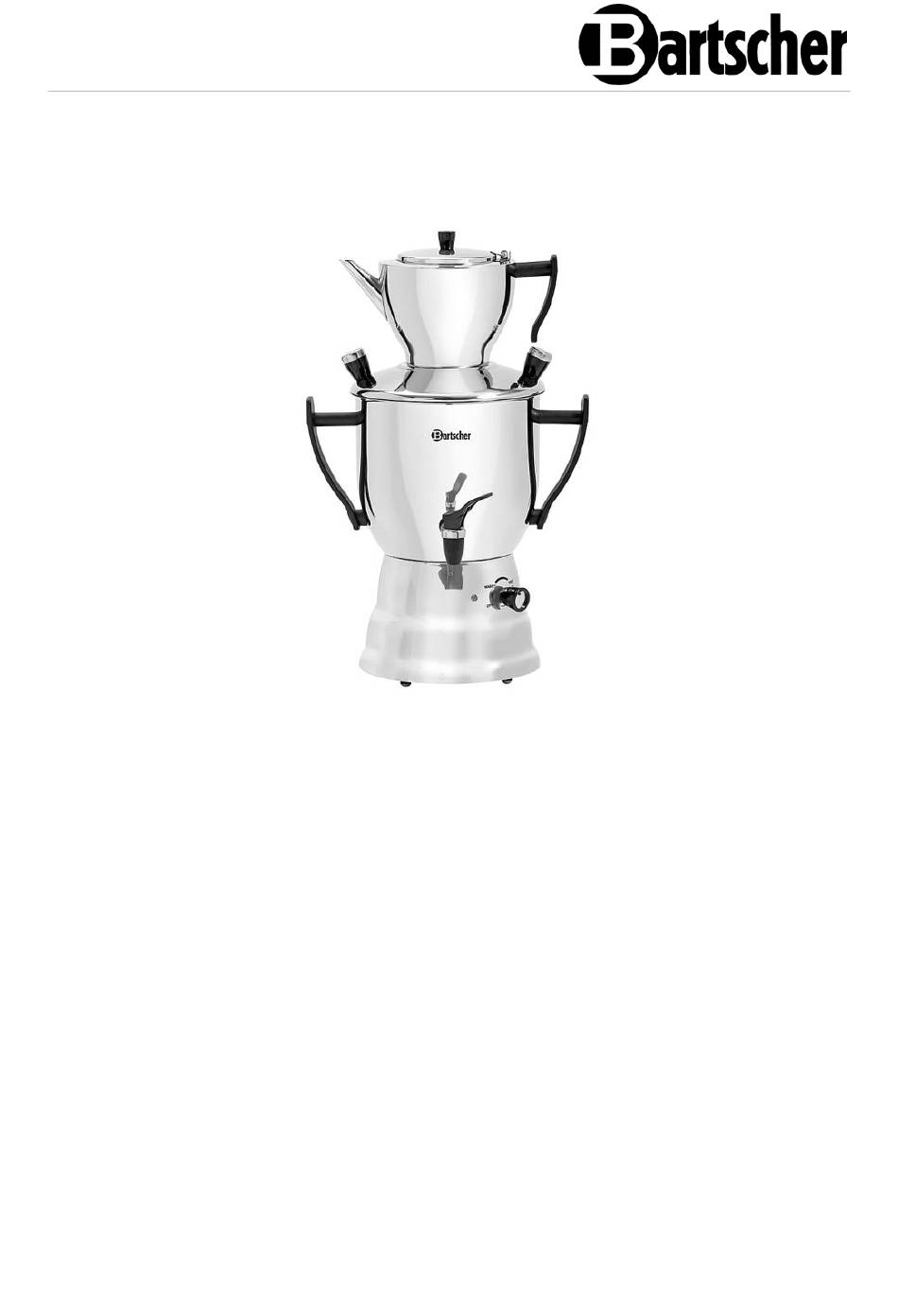

  • Page 1 191001...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 5.0 Date of preparation: 2023-06-12...

  • Page 3: Table Of Contents

    List of Components of the Appliance ............. 11 Installation and operation ................12 Installation ....................12 Operation ....................13 Cleaning and Descaling ................21 Safety Instructions for Cleaning ............. 21 Cleaning ....................21 Descaling ....................22 Possible Malfunctions .................. 23 Disposal ....................... 24 191001 1 / 24...

  • Page 4: Safety

    You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 24 191001...

  • Page 5: Safety Instructions

    Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 191001 3 / 24...
  • Page 6 Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. • You may transport and clean the appliance after it cools down entirely. • It is prohibited to sprinkle hot surfaces with cold water or flammable liquids. 4 / 24 191001...
  • Page 7 • The appliance may only be used clean. • Use only original spare parts. Never attempt to repair the appliance on your own. • Do not attempt to modify nor alter the appliance. 191001 5 / 24...

  • Page 8: Intended Use

    – Heating up soups, sauces or similar thick dishes. – Heating or boiling of liquids containing sugar, sweeteners, acids, lyes, or alcohols. – Storing and heating up flammable, harmful, and quickly evaporating liquids or materials, etc. 6 / 24 191001...

  • Page 9: General Information

    Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 191001 7 / 24...

  • Page 10: Transport, Packaging And Storage

    – in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 8 / 24 191001...

  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Name: Samovar 3L 191001 Art. No.: Material: stainless steel Volume, in l: Temperature range in °C: Connected load: 1,5 kW | 220-240 V | 50/60 Hz Dimensions (W x D x H), in mm:...

  • Page 12: Functions Of The Appliance

    Functions of the Appliance The samovar is used for boiling water for tea, tea essence and other hot and instant beverages. 10 / 24 191001...

  • Page 13: List Of Components Of The Appliance

    12. Power cord with mains plug 13. Dispensing tap 14. Dispensing tap lever 15. Marking of the max fill level in the 16. Water tank lid water tank 17. Handle of the water tank lid (2 pcs.) 191001 11 / 24...

  • Page 14: Installation And Operation

    Furniture surfaces may contain materials, which may damage or melt the appliance's feet. If needed, place the appliance on a suitable pad. • Make sure to keep proper clearance at all sides (at least 10 cm at both sides and 30 cm from the top). 12 / 24 191001...

  • Page 15: Operation

    – fill the water tank with fresh potable water, up to the max mark', – boil water. Follow indications in section 'Starting the Appliance', – pour out the water, – repeat the process 2–3 times. 191001 13 / 24...
  • Page 16 2. For the interval boiling, turn the temperature regulator back until the operation indicator light on the base of the appliance goes out. The device maintains the water temperature at approx. 95 °C – 100 °C. 3. Set the temperature control to position to turn off the device. 14 / 24 191001...
  • Page 17 After a few minutes the water boils. This can be seen in the emerging steam. ATTENTION! Leaving the temperature regulator in this position will cause the water to boil continuously and will evaporate completely over time. 191001 15 / 24...
  • Page 18 3. Fill the water tank with the required amount of fresh drinking water, not exceeding the max mark. Dispensing Tap Operation Impulse work 1. Push down the dispensing tap lever. The dispensing tap opens. 2. To close the dispensing tap again, release the lever Fig. 3 16 / 24 191001...
  • Page 19 7. The teapot may hold maximum of 1 litres of water. 8. The more the tea leaves or tea bags, and the less the water is poured into the teapot, the stronger will be the tea essence (tea connoisseurs like to infuse 191001 17 / 24...
  • Page 20 (but do not turn all the way). The operation light turns on and off cyclically. Only use the maximum setting until the water boils for the first time. 18 / 24 191001...
  • Page 21 5. Now pour the tea with hot water from the water tank. 6. Place the teapot on the water tank as described earlier to keep the tea hot. 7. Follow the directions for preparing black tea. 191001 19 / 24...
  • Page 22 Hot Instant Beverages In order to prepare hot instant beverages, e.g. instant coffee, pour the required amount into a cup and pour hot water from samovar (section 'Boiling water', 'Dispensing Tap Operation'). 20 / 24 191001...

  • Page 23: Cleaning And Descaling

    5. Clean the cover, teapot with tea strainer and the lid thoroughly with warm water and mild cleaning agent. Rinse in fresh water. 6. To end with, dry all washed elements and surfaces thoroughly. HINT! 191001 21 / 24...

  • Page 24: Descaling

    2. Perform the following steps: – Fill the water tank with approx. 500 ml of fresh potable water. – Add vinegar or 1 package (15 g) of Bartscher B15-30 descaler (art. no. 190065) to the water. Observe the indications on the packaging, –...

  • Page 25: Possible Malfunctions

    The overheating Leave the appliance to cool switches off during protection (dry operation down, and them fill it with operation protection) was triggered: fresh potable water too little water or no water in the water tank 191001 23 / 24...

  • Page 26: Disposal

    You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance. Electrical appliances should be returned to designated collection points. 24 / 24 191001...
