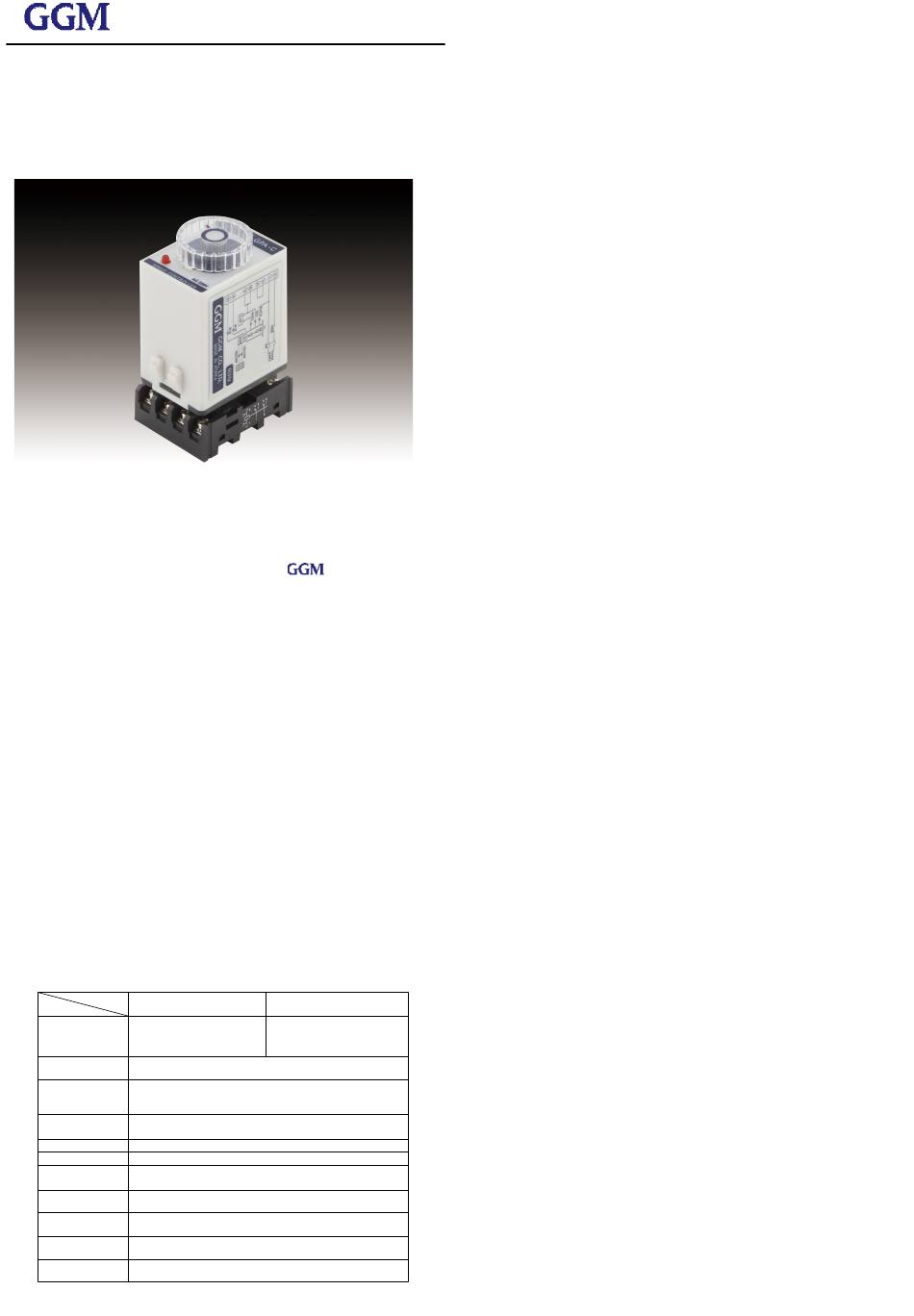

GGM GPA Series Manual

GUGJE GEARED MOTOR
Manual
GPA
SERIES
SPEED CONTROL UNIT
■ Main Office/1sr Factory : 327-3 Sonne-Dong, Sosa-Gu, Buchun-City, Kyonggi-Do, Korea
Teephone l:+82-32-664-7790 Fax:+82-32-611-7791
■ 2nd Factory : 272-11 Dodang-Dong, Wonmi-Gi, Buchun-City, Kyonggi-Do, Korea
Tel:(032)684-7791 Fax:(032)683-5059
Thank you for purchasing the GGM product.
Before use this product, read well manual certainly and understand
all about knowledge, safety information and cautions of product,
and use right way. After read, please be sure to keep fixed place to
refer anytime.
Confirmation at product arrival
1.
- Confirm whether product is same with order.
- If another product is installed, there is danger of injury or fire hazard.
- Products are protected in Shock Protection of paper packaging, and contains the following
items are present.
Please confirm whether there are all of the things correctly as followings;
1) CONTROLLER --------------------------- 1 unit
2) SOCKET (8PIN) --------------------------1 unit
3) Manual(this booklet) ------------------------1 copy
2. Specifications and Dimensions
* 1. Application MOTOR is SPEED CONTROL MOTOR (SP TYPE) and SPEED CONTROL &
BRAKE MOTOR (D TYPE).
* 2. ELECTRICAL BRAKE does not have preservation power.
* 3. In case of need SLOW RUN, SLOW STOP functions, please buy our products of 'GSA'
SERIES CONTROLLER.
Model
GPA-U
Characteristics
single phase AC110V
Rated voltage and 50/60Hz
Power Frequency singlr phase AC115V
50/60Hz
Operating Voltage
Range
Application
MOTOR output *1
Speed control
range
Speed regulation
Speed setter Built-in (can be installed outside regular setter: special order)
Electric motor brake for a period of time
Braking *2
Electrical BRAKE
time
SLOW RUN *3
SLOW STOP
Ambient
temperature
Storage
temperature
www.ggm.co.kr
GGM Co., Ltd.
- 1 -
GPA-C
single phase AC220V 50/60Hz
single phase AC230V 50/60Hz
single phase AC240V 50/60Hz
±10%(Rated Voltage Contrast)
INDUCTION : 6~180W
REVERSIBLE : 6~ 90W
SPEED & BRAKE : 6~180W
60Hz : 90~1700 rpm
50Hz : 90~1400 rpm
5%(Standard value)
Braking through Current
0.5 seconds Standard values
No function
-10℃ ~ 50℃
-20℃ ~ 60℃
- 2 -
