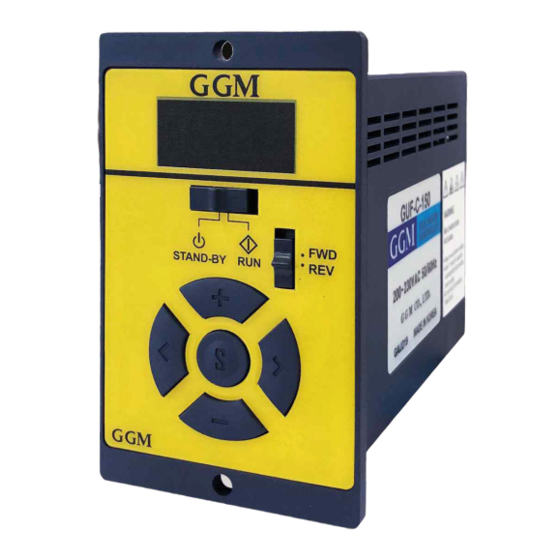

GGM GUF Series Operation Manual

Bldc speed control unit
Hide thumbs

Advertisement

Table of Contents

GLOBAL GEARED MOTOR
OPERATION MANUAL
GUF
SERIES
BLDC SPEED CONTROL UNIT
■ Headquarters / 1st Factory : 22, Gyeongin-ro 3beon-gil, Bucheon-si, Gyeonggi-do, Republic of Korea
Tel:+82-32-664-7790 Fax:+82-32-611-7791
■ Attached research institute / No. 2 factory : 180, Oksan-ro, Bucheon-si, Gyeonggi-do, Republic of Korea
Tel:+82-32-684-7791
Fax:+82-32-683-5059
www.ggm.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GUF Series and is the answer not in the manual?

Questions and answers

Related Manuals for GGM GUF Series

Summary of Contents for GGM GUF Series

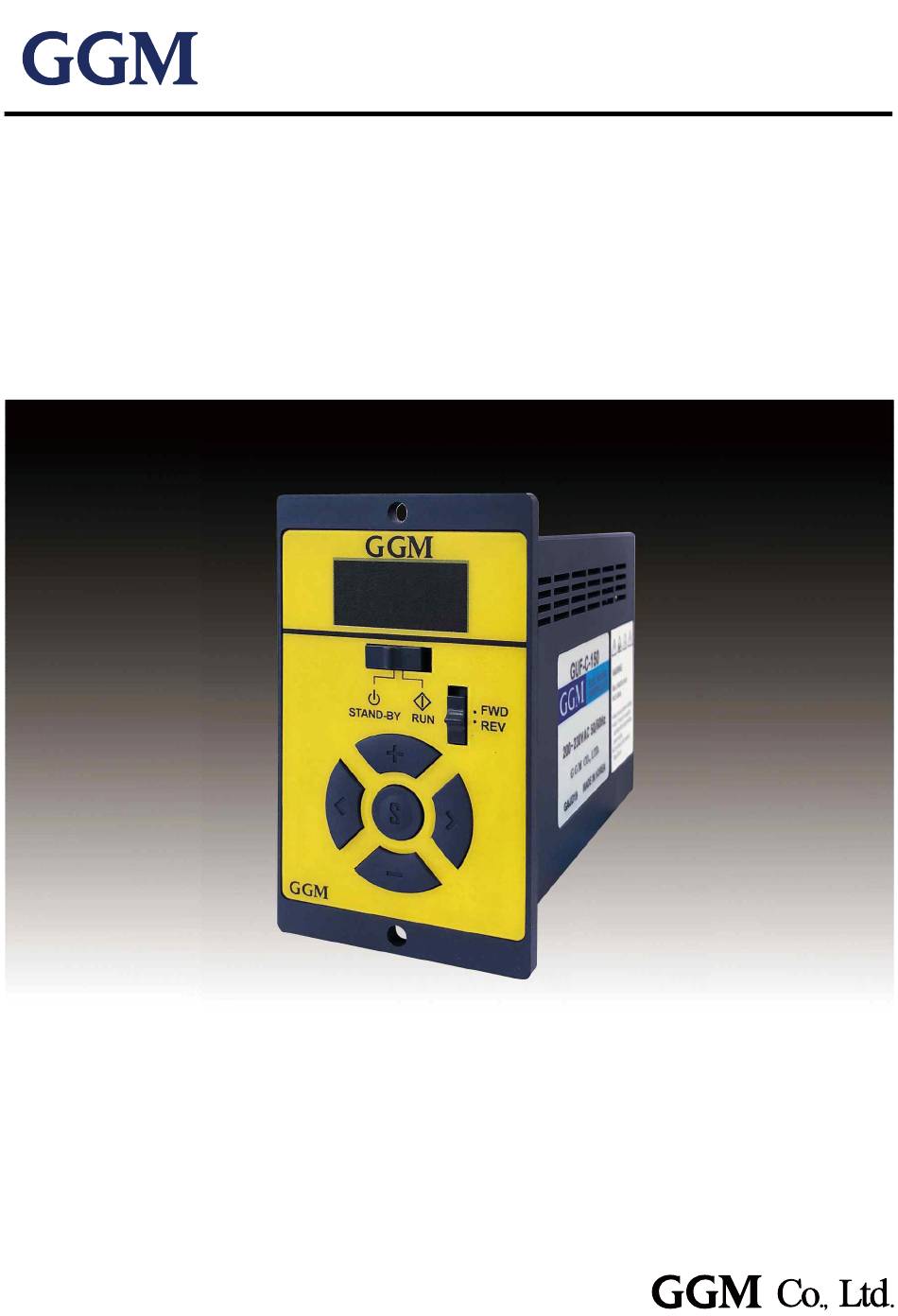

  • Page 1 GLOBAL GEARED MOTOR OPERATION MANUAL SERIES BLDC SPEED CONTROL UNIT ■ Headquarters / 1st Factory : 22, Gyeongin-ro 3beon-gil, Bucheon-si, Gyeonggi-do, Republic of Korea Tel:+82-32-664-7790 Fax:+82-32-611-7791 ■ Attached research institute / No. 2 factory : 180, Oksan-ro, Bucheon-si, Gyeonggi-do, Republic of Korea...

  • Page 2: Safety Precautions

    Thank you for purchasing a GGM product. To ensure that you areusing this product correctly, make sure to first read this operation manual thoroughly and familiarize yourself with allknowledge, safety information and precautions related tothe product. After you have read this operation manual, keep it at hand for reference whenneeded.

  • Page 3: Specifications

    2. Confirmation when the product is handed over - Confirm that the delivered product is the product you ordered. - If a different product is installed, it will create the risk of injury or fire. - Contact a nearby retail store if you were delivered an insufficient number of products or if a damaged product wasdelivered.

  • Page 4: Dimensions Of The Product

    4. CONTROLLER CODING SYSTEM C : POWER Unit F-Series 30 : 30W Single Phase 200~240V Co.,LTD. Type 60 : 60W Three phase 200~240V 150 : 150W 200 : 200W 400 : 400W 5. Dimensions of the product ■ 30,60,150W drives CN3 SENSOR CN2 MOTOR CN4 I/O...

  • Page 5: Product Characteristics

    6. Product characteristics 5. Operation by external I/O ( PLC, etc. ) 1. Stable speed control ( Speed ripple: 0.5% ) Start/Stop, change of rotational direction, The product adjusts the current applied to the multi-level speed operation by external I/O, motor through vector control by constantly etc.

  • Page 6: Name And Function Of Each Part

    8. Name and function of each part Display unit Protection ground terminal [Displays the rotation speed [Connects the protection ground and parameters] wire.] Motor power connector CN2 Operation switch [Connects the motor power [When you toggle the operation connector.] switch to RUN, the motor rotates when you toggle Motor sensor connector CN3 the operation switch to STAND-BY,...
  • Page 7 9-3 Operating After turning on the power, operate the product as follows. ④ To stop running ① To start runing the motor the motor ② To adjust the motor ③ To determine the rotation speed setting of the motor rotation speed ①...
  • Page 8 9-4 Operating by I/O signals The motor can be operated and stopped from the external signals. AC power input Motor Drive I/O Signal ① Setting the “External operation signal input” parameter Set the parameter (PAr-> io.En-> on / oFF) to "on" (page 14) "on"-External I / O enabled, "oFF"-External I / O disabled / The factory setting is "oFF".
  • Page 9 ④ Timing chart example Deceleration Deceleration Motor Movement Stop Stop Instantaneous Deceleration Stop Stop Operating Switch 50ms or more FWD input REV input 10ms or more ※ Operation input • The motor rotates when either FWD input or REV input is set to “ON”. •...
  • Page 10 ⑥ Driving at two or more speeds You can operate at two or more speeds by switching to external input. Up to 8 speeds are possible. • Operating method Operate the motor by selecting any of the operation data No.0 to No.7 based in a combination of ON/OFF status of the P0, P1 and P2 inputs.
  • Page 11 10. Setting and 7-segments display 10-1 Monitor mode...
  • Page 12 10-2 Input/Output setting mode...
  • Page 13 10-3 Parameter setting mode(1page)
  • Page 14 10-3 Parameter setting mode(2page)
  • Page 15 10-3 Parameter setting mode(3page)
  • Page 16 10-3 Parameter setting mode(4page)

  • Page 17: Parameter List

    10-4 saving mode 11. Parameter list Factory Display Item Description Setting range setting Acceleration time Pr.tA Sets the acceleration time. 0.0 ~ 15 s 0.5 S Deceleration time Pr.td Sets the deceleration time 0.0 ~ 15 s 0.5 S Torque limit Tq.LM Sets the torque limit 10~300...
  • Page 18 Factory Item Display Setting range Description setting Sets whether to enable or disable the on – Enable Prevention of operation oP.AL “prevention of the operation at oFF – Disable at power–on alarm power on alarm” The operation method can be selected between the front panel and external input signals.

  • Page 19: Description Of I/O Signals

    12. Description of I/O signals Assignable alternative input functions Display Function Description [FWd] The motor rotates when either FWD input or REV input is set to “ON”. The motor instantaneous stop when FWD input and REV input is set to “ON” at the same time. [rEv] [P0] Operation data 0...

  • Page 20: Alarm List

    ※ Contact your vendor or our second factory if you haveany questions about product or requirepost-sales service. Leader of geared motor GGM CO.,LTD. http://www.ggm.co.kr Headquarters / 1st Factory Attached research institute / No. 2 factory 22, Gyeongin-ro 3beon-gil, Bucheon-si,...
