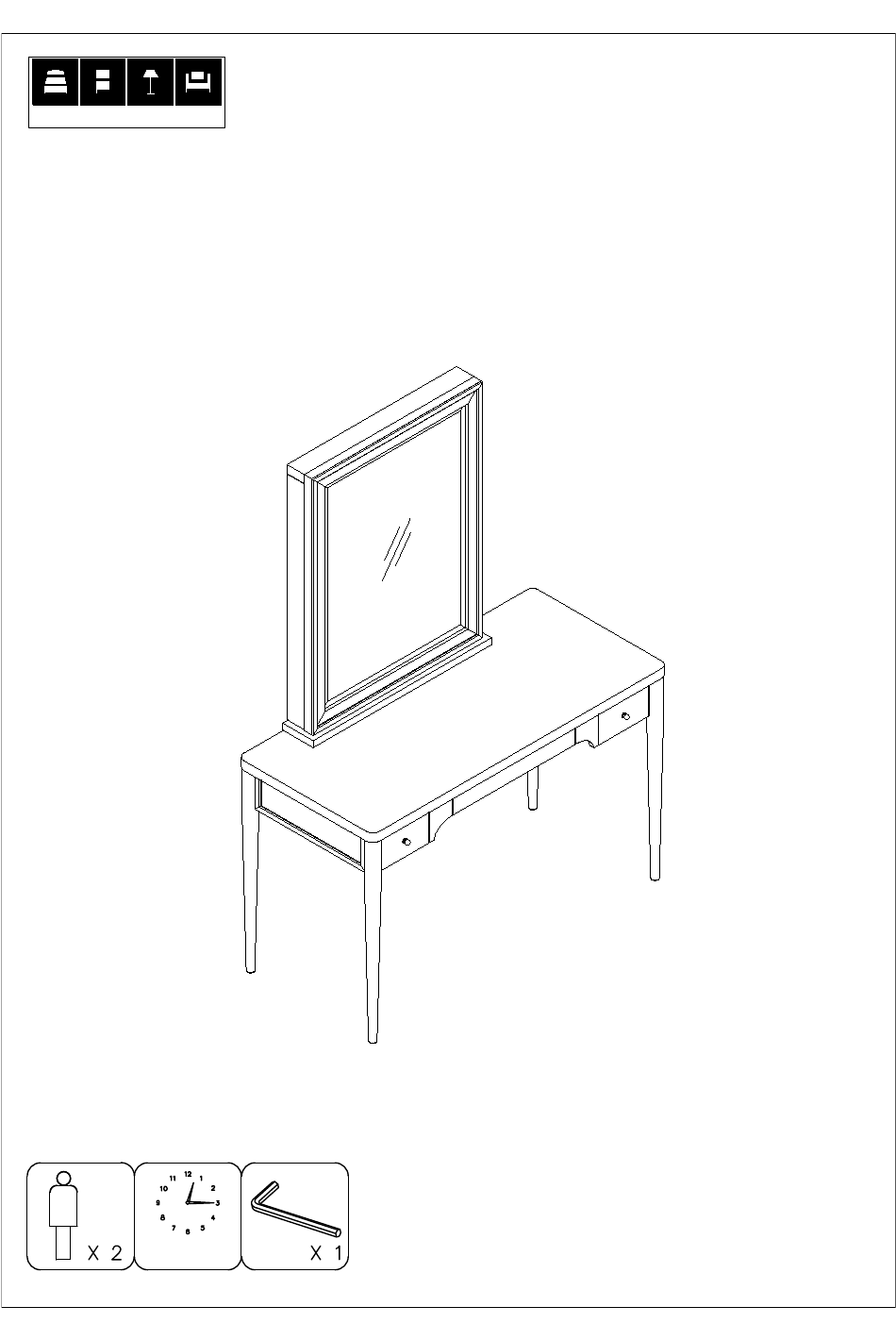

- Page 1 ASSEMBLY INSTRUCTIONS L I V I N G S P C ES AUSTEN - WRITING DESK ITEM NO : H2101-270A SKU:359172 AUSTEN - BLACK VANITY MIRROR ITEM NO : Y2101-122 SKU: 363315 15 min...
- Page 2 ITEM NO : H2101-270A SKU:359172 IMAGE DESCRIPTION QTY PART SKU# 359172-A-B(BLACK) Table ITEM NO : Y2101-122 SKU:363315 363315-B-B(BLACK) Mirror frame Connecting 363315-C-B(BLACK) strip Hardware List of vanity mirror IMAGE PART SKU# DESCRIPTION Bolts 363315-1(2) M4*Ø1/4*75mm Bolts 363315-2(4) M4*Ø1/4*50mm Bolts 363315-3(8) M4*Ø1/4*20mm metal plate 363315-4(1)
- Page 3 DETAIL VIEW STEP 1: Assemble the mirror frame and connecting strip. *Use hardware (2) with the Allen key (6) assemble the frame (B) and the connecting strip (C) . 2= 4pcs...
- Page 4 Remove the hole plug. STEP 2: * Turn the table over and remove the hole plug according to the instructions. STEP 3: Pull out the drawer .
- Page 5 STEP 4: Assemble the table and mirror frame. Place the Mirror frame (B) on the top panel (A). Align the two hole of the connecting strip (C) with the two holes on the back of writing desk (A). Fix the holes use with Bolts (1). 1= 2pcs STEP 5: Use metal plate to fix the connecting strip and the table.
- Page 6 STEP 6: Use L metal plate to fix the mirror frame on both side. * Use L metal plate (5) and hardware (3) according to the instructions to fix the mirror frame (B) and table (A) together. 3= 4pcs Three-levels touch switch Storage Mirror Frame That's it ! You've finished assembling your item.
