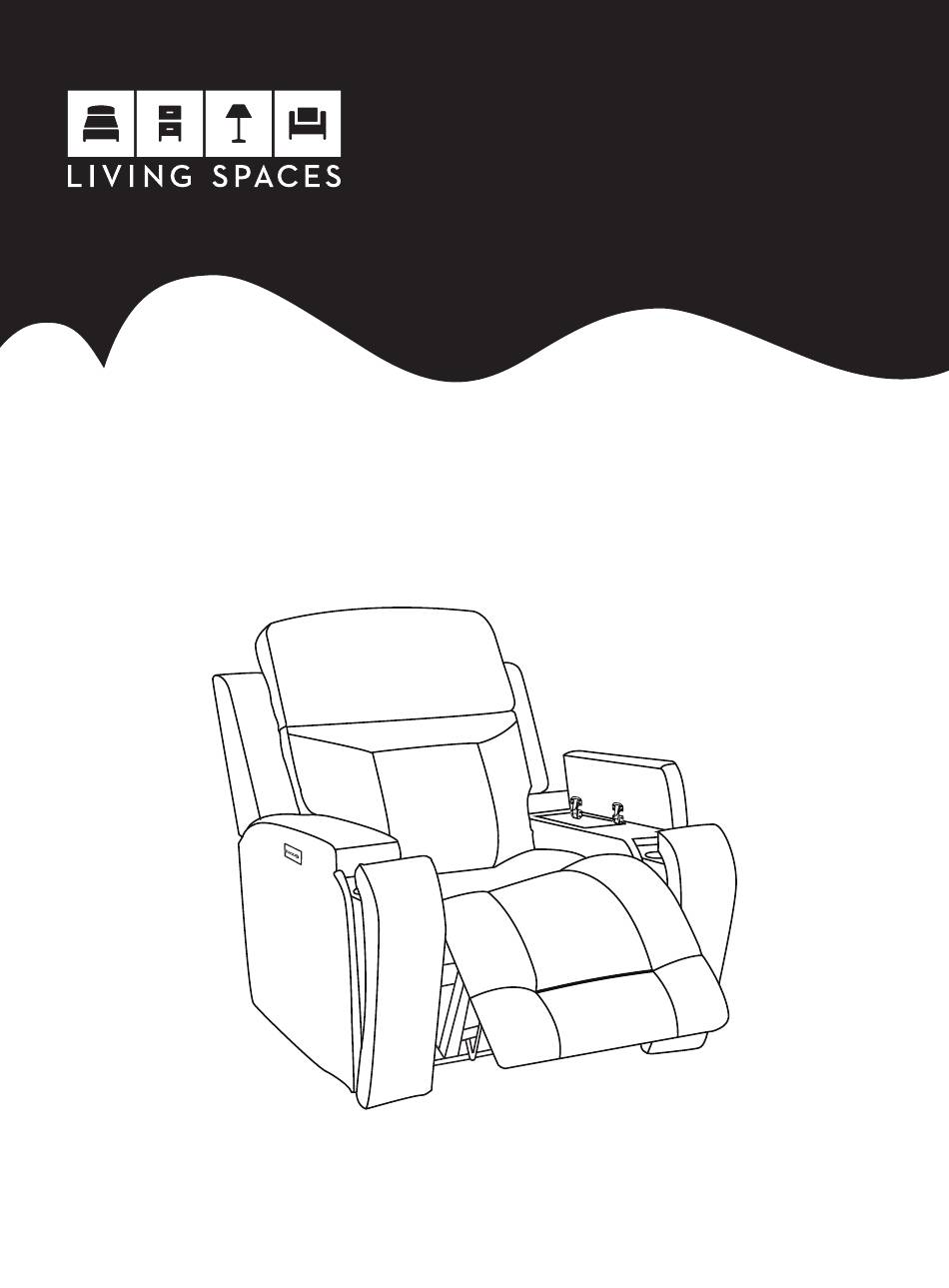

- Page 1 OWNER’S MANUAL Installation & Operation SKU: 352260 & 352261 Rev 1 09/2024...
-
Page 3: Table Of Contents
Table of Contents Parts List ................01 Installa�on Guide ..............02 Func�on introduc�ons ............04 Opera�ng Instruc�ons ............05 Disassembly Instruc�ons ............09 Audio System ................ 10 Customer Service Toll Free: 1-844-696-6886 Email: motoservice@hhcusacorp.com Troubleshoot ing ………………………………………………………………… 10... -
Page 4: Parts List
Parts List All electronics and components that need to be installed are located in bags under the foundation or attached to the frame. Before discarding the packing materials, ensure that all the parts are accounted for. PARTS LIST CODE DESCRIPTION Back Cushion Seat Cushion Wing... -
Page 5: Installa�On Guide
Installat ion Guide Slide inside back receivers onto the steel mechanism posts in the base of the recliner. Press both sides of the back firmly into place until the back automatically locks into track. Zip up the seat cushion and back cushion. Back Receivers Steel Mechanism... - Page 6 Installat ion Guide Flip the back flap up and connect all the cables accordingly. Fasten the back flap to the bottom of the furniture. Headrest(yellow) Air Massage Lumbar(grey) (Purple) Vibrator(white) Power Supply Heat(white) Connect the power transformer to the socket at the bottom of the back of the recliner. Connect the Power Cord into the Power Transformer.
-
Page 7: Func�On Introduc�Ons
Func�on introduc�ons Caution: Read the important instructions below before operating your power mechanized equipment Do not allow children to play on or operate this power mechanized equipment Armrest Control Multi Media Control Panel Side Control Cup Holder Cup Holder Do Not plug the power cord into a power outlet until your furniture is fully assembled and in place. Notes: 1) To help prevent shock and or damage to your product only plug the power cord into a grounded outlet. -
Page 8: Opera�Ng Instruc�Ons
Opera�ng Instruc�ons SIDE CONTROL LUMBAR CLOSE& HOME HEADREST FOOTREST LIGHT SWITCH Front of Arm Type-C CLOSE OPEN OPEN CLOSE OPEN To recline: Sit on the furniture, and press the front of the button closest to the footrest to smoothly raise the footrest and recline to any position. - Page 9 Opera�ng Instruc�ons Multi Media Control Panel Light Volume Treble Bass Vibration Adjust the Volume Wireless Connection Adjust the Treble Headset Adjust the Bass Adjust the Intensity of Vibration Turning On/Off the Speaker Press and hold the volume adjustment knob to turn on the speaker. Press and hold again to turn off the speaker. Wireless Connection Pairing Mode Press and hold the wireless button (blue light flashes) to initiate pairing.
- Page 10 Opera�ng Instruc�ons Multi Media Control Panel Notes 1. Wireless connection search will automatically end after three minutes without connecting to any devices, and the flashing light will turn off. If you press the button during the flashing period, the search will end. 2.
-
Page 11: Power Button
Opera�ng Instruc�ons Armrest Control Your recliner is equipped with easily accessible armrest controls for air bladder massage and heat. AIR MASSAGE HEAT BUTTON POWER BUTTON BUTTON POWER BUTTON Press the power button to turn the armrest control features on and off. HEAT BUTTON Press the heat button to activate the heat function. -
Page 12: Disassembly Instruc�Ons
Disassembly Instruc�ons Unzip the seat cushion and back cushion, to remove the back from the base. Pull out the black tab by hand or use a screwdriver pressing outward on black tab, then lift the back from the recliner of the chair to release. Screwdriver required (not included) UNZIP... -
Page 13: Audio System
Audio System PAIRING INSTRUCTION Before you start. Switch on the pairing function on your mobile device. Make sure your power foundation is correctly connected and is power-on. 1. Pair with Audio System: Search for the audio device named “Moto Audio” on your device and establish a connection. 2. - Page 16 Thank you for purchasing a Power Founda�on. Contact Customer Service Toll Free at 1-844-696-6886 Email: motoservice@hhcusacorp.com...
