What is Flash Memory?
Firmware Download
Requirements
Required Communications
Cable
1336
Firmware Download Module
PLUS
II
Catalog Number 1336F-FDM
This document provides information on upgrading the 1336
firmware, including a description of the Flash memory used in the drive and
the procedures required for downloading the latest firmware revision. For
detailed drive information, refer to 1336
1336 PLUS-5.3.
Important: To install updated firmware, the current drive firmware revision
level must be 2.004 or higher. If your drive has a firmware
version below 2.004, the Main Control Board must be replaced.
The drive firmware (including parameter layout and operating algorithms)
resides in a form of programmable read-only memory called "Flash
Memory." Flash memory allows the user to easily upgrade the drive
firmware locally using a standard computer and the supplied Firmware
Download Module. The latest firmware files are available from your local
Allen-Bradley Sales Office.
The necessary file can be downloaded to the module with a computer
having the following:
• Disk drive (hard and/or floppy).
• Standard communications program capable of XMODEM protocol.
• Standard serial "COM" port and connecting cable (see below).
In addition, the following is recommended:
• IBM
compatible computer with Microsoft
System.

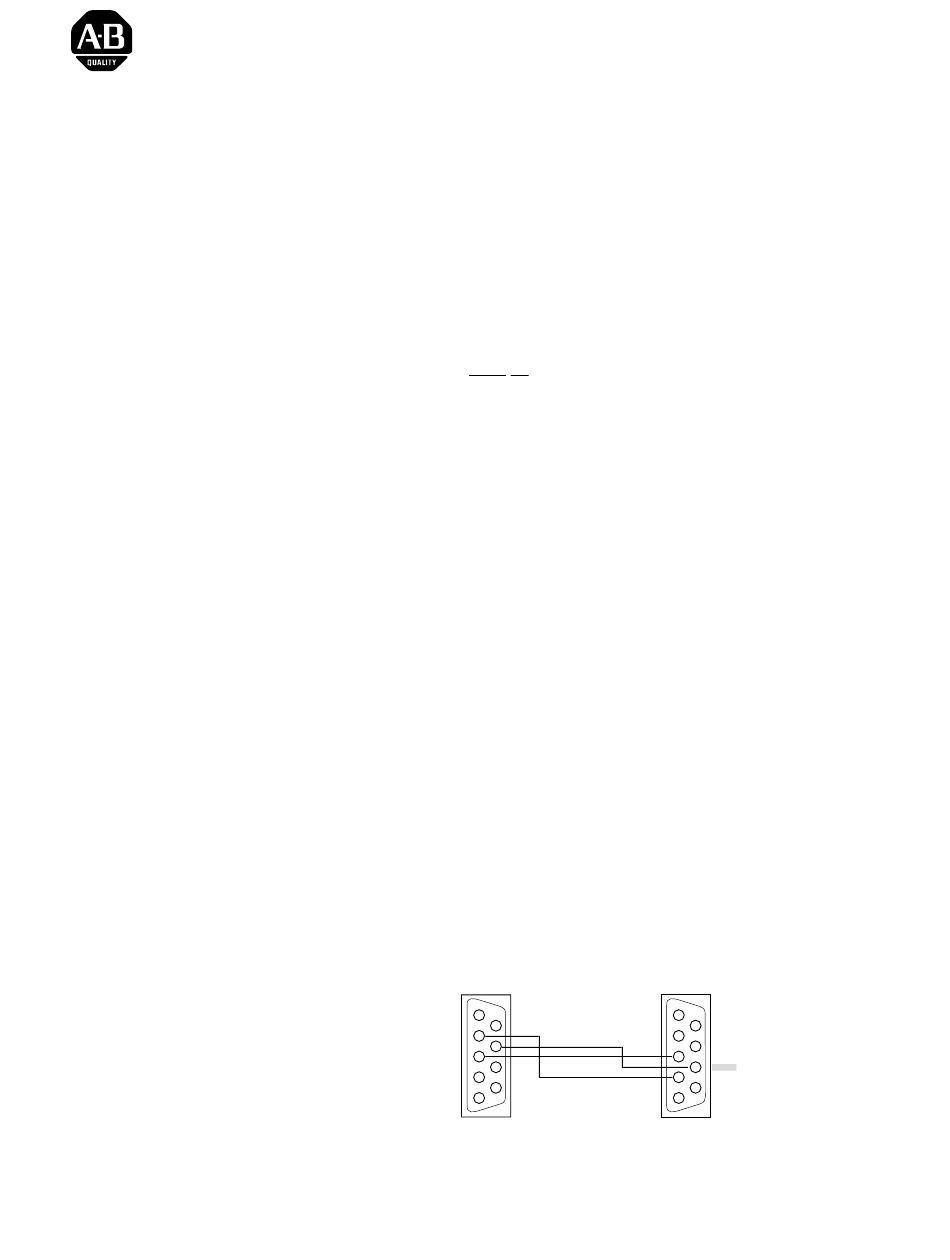

A standard serial communications cable wired as shown, is required. This
cable interconnects the computer and Firmware Download Module.
Flash Download Module
9 Pin Female
D-Shell Connector
1
6
2
7
3
8
4
9
5
Instructions
PLUS
User Manual, publication
PLUS
II
Windows
Operating
PC COM Port
9 Pin Male
D-Shell Connector
5
9
4
8
3
TX
COM
7
RX
2
6
1
II
Advertisement
Table of Contents
Related Manuals for Rockwell Automation Allen-Bradley 1336F-FDM
Summary of Contents for Rockwell Automation Allen-Bradley 1336F-FDM
- Page 1 Instructions 1336 Firmware Download Module PLUS Catalog Number 1336F-FDM This document provides information on upgrading the 1336 PLUS firmware, including a description of the Flash memory used in the drive and the procedures required for downloading the latest firmware revision. For detailed drive information, refer to 1336 User Manual, publication PLUS...
-
Page 2: Main Control Board Power Requirements
1336 PLUS II Firmware Download Module Main Control Board Power In order to upgrade firmware, the Main Control Board must have power applied. This can be accomplished through one of the following methods: Requirements • Application of AC line voltage per instructions in Chapter 2 of the 1336 User Manual. -
Page 3: File Identification
1336 PLUS II Firmware Download Module Figure 1 Component Locations Spare Jumpers Control Interface Option Location Status LEDs Spare Jumpers Status LEDs Flash Download Module External Power Connector Frames A1 - A4 Frames B - G Communications Connector 5. Install the Firmware Download Module in the Main Control Board cradle –... -
Page 4: Establishing Communications With The Drive
1336 PLUS II Firmware Download Module 9. Locate the readme file on your computer using Windows Explorer. “Double-click” on the file to open/view it. The file information will be displayed on the screen, along with any notes concerning software changes or installation tips. Record the information below and close the window. - Page 5 1336 PLUS II Firmware Download Module A. Connection Description window – enter a name and select “OK.” B. Phone Number window – locate the Connect using: menu and choose “Direct to Com1,” then select “OK.” If a different COM port is being used, substitute the appropriate one for your computer setup.
- Page 6 1336 PLUS II Firmware Download Module Transferring the File to the Drive 12.Press the Enter key on your computer once to signal the drive – an introduction screen will be displayed. 13.Press “F” to enter the Flash Mode. You are now prompted to confirm your choice “Are you sure?”...
- Page 7 1336 PLUS II Firmware Download Module 14.The default baud rate of 9600 should be acceptable under most conditions. However, to facilitate faster file transfers, the baud rate can be changed for communications up to the maximum drive rate of 115.2 kb (or the maximum computer rate).
- Page 8 1336 PLUS II Firmware Download Module 16.Select “(2) Send File to drive.” A message will appear regarding correct jumper installation. A string of C’s will then appear, indicating that the drive is waiting for the file to be downloaded. 17.From the Transfer menu (top of screen), select “Send File.” Enter the file path (location of .bin file) and choose “Xmodem”...
- Page 9 1336 PLUS II Firmware Download Module The download process will continue until complete. The screen will be updated as progress continues. The STOP LED on the Main Control Board will flicker or blink, indicating communications. If an error message is received, refer to Table, “General Troubleshooting,” on page 12.
- Page 10 1336 PLUS II Firmware Download Module 18.If errors occurred in the transfer, the screen may display one of the following: • Error in Constant Block • Error in Program Block • Error in DSP Block • Error in Text and Language Block If errors are indicated, press the Enter key on the computer and return to step 10 on page 4 to repeat the entire process from that point.
-
Page 11: Troubleshooting
1336 PLUS II Firmware Download Module Troubleshooting Table A General Troubleshooting Condition Cause Action “Transfer cancelled by remote system” Jumper J20 not installed. End the communications session, remove power from the drive and return to Step 4 on page 2. “Error from Flash is 1”... - Page 12 Tel: (1) 262 512-8176, Fax: (1) 262 512-2222 Email: support@drives.ra.rockwell.com, Online: www.ab.com/support/abdrives Reach us now at www.rockwellautomation.com Wherever you need us, Rockwell Automation brings together leading brands in industrial automation including Allen-Bradley controls, Reliance Electric power transmission products, Dodge mechanical power transmission components, and Rockwell Software.
