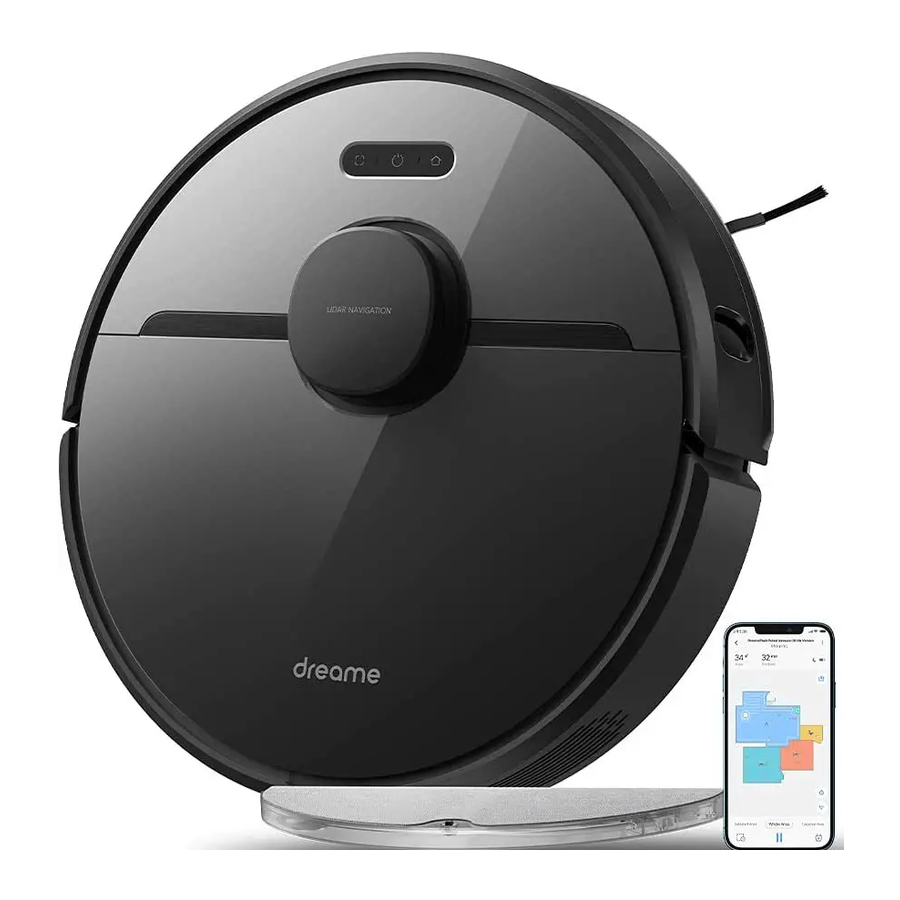

DreameTech D9 Manual

Product Overview

Robot

Robot

Robot Sensors

Dust Bin

Mopping Module

Charging Dock

4. Place the robot onto the charging dock to recharge. The robot will turn on automatically and charge
   Battery Level Indicator


• White: Battery level is more than 15%
• Orange: Battery level is less than 15%

Note:

• Fully charge before first use.
• Don't install the mopping module while charging. Ensure the charging is in a safe environment to prevent floor damage caused by wet dishcloth.

Connecting with Mi Home/Xiaomi Home App

This product works with Mi Home/Xiaomi Home app *.

1. Download Mi Home/Xiaomi Home App
   Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search "Mi Home/Xiaomi Home" in the App Store to download and install it.


2. Add Device
   Open Mi Home / Xiaomi Home app, and tap " " on the upper right. Then tap top right corner " ", scan the QR code, add "Dreame Robot Vacuum D9" and follow prompts to finish the connection.


Note:

• Only 2.4GHz Wi-Fi is supported.
• The version of the app might have been updated. please follow the instructions based on the current app version.

How to Use

1. Turn On/Off
   Press and hold the button for 3 seconds to turn on the robot. Once the power indicator turns solid white, the robot is in standby mode. To turn off the robot, press and hold the button for 3 seconds while the robot is stationary. Turning off the robot will end the current cleaning task.
2. Start Cleaning
   Press the button briefly to turn on the robot. Upon activation, the robot will accurately map out routes, and then methodically clean each room in a way that it firstly cleans along edges and walls and then cleans floors in an S-shape pattern to ensure a thorough job.

3. Cleaning Mode
   Four cleaning modes are available in the Mi Home/Xiaomi Home app: Quiet, Standard, Strong and Turbo. The default mode is Standard.
4. Pausing/Sleep Mode
   Pausing: Press any button to pause the robot during cleaning. Sleep Mode: The robot will automatically enter sleep mode after 10 minutes of inactivity, then the power and charging indicators will go off. To wake up the robot, press any button.
   Note:
   • The robot will turn off automatically in the sleep mode more than two hours.
   • When the robot is paused, placing it onto the charging dock will end the current cleaning task.

5. Do Not Disturb Mode
   You can enable Do Not Disturb or modify its hours in the app.(The mode is opened by default from 22:00 to 08:00.)
   Note:

• Scheduled cleanups will still be carried out during the DND period.

6. Spot Clean mode
   When the robot is in standby mode or paused, press and hold the button for 3 seconds to start Spot Clean mode. In this mode, it will clean a square-shaped area of 1.5 ×1.5 meters directly around the robot. When the spot cleaning is done, the robot will automatically return to its original location and shut off.
   Note: Activating Spot Clean mode will end the current cleaning task of the robot.


7. Scheduled Cleaning
   You can schedule cleaning time in the Mi Home/Xiaomi Home app. The robot will automatically start cleaning at the designated time and then return to the charging dock to recharge when the cleaning is done.
8. More APP Functions
   The app can be used to set up advanced functions such as selected room cleaning, zone cleaning, forbidden area / virtual wall, etc.

Note:

• Follow the instructions on the APP interface to use more functions.
• The version of the app might have been updated, and please follow the instructions based on the current app version.

9. Use the Mopping Function
   It is recommended that all floors are vacuumed at least three times before the first mopping session to achieve better cleaning effect.
   1. Dampen the mop pad and wring out excess water. Slide the pad all the way into the slot of the water tank until it is securely in place.

   2. Open the water tank lid, fill the tank with water, then securely close the lid.
      Note: Do not use non-designated detergents or disinfectants.


3. Align the mopping module as indicated by the arrow, then slide it into the back of the robot until it clicks into place. Press the button or use Mi Home/ Xiaomi Home app to start cleaning.


Note:

• It is not recommended to use the mopping function on the carpets.
• Use the app to adjust the water flow as required.

4. Press the two side clips inwards and slide the water tank backwards to separate it from the robot.
   Note: When the robot is charging or not in use, remove the mopping module, pour out all remaining water in the tank, and clean the mop pad to prevent mildew or lingering odors.


Routine Maintenance

Clean the Dust Bin and Filter

1. Open the robot cover, then press the dust bin clip to remove the dust bin.

2. Open the dust bin cover as indicated by the diagram.


3. Remove the filter and tap it basket gently.
   Note: Do not attempt to clean the filter with a brush or finger.

4. Rinse the dust bin and filter with water until it is clean. Thoroughly dry the filter before re-installing.


Clean the Mopping Module

1. Press the two release clips on the side of water tank, remove the mopping module and pull the mop pad off the mopping module.

2. Pour out the water in the tank. Clean with water only and leave to air dry before re-installing.
   Note: Do not expose the tank to the sun directly.


3. Clean the mop pad with water only and leave to air dry before re-installing.
   Note:


• Remove the pad from the mopping module before cleaning it, and make sure dirty water does not flow back into the water outlet to avoid clogging.
• For optimal performance, it is recommended to replace the mop pad every 3 to 6 mouths.

4. If slow water flow occurs, or the volume is not well-distributed, please clean the air hole in the cover of the water tank.


Clean the Main Brush
Press the brush guard clips inwards to remove the brush guard and lift the brush out of the robot.

Use the included brush cleaning tool to remove any hairs tangled on the brush.

Note: Do not pull out the hair excessively to avoid the damage of Main Brush when the hair is tightly tangled on the Main Brush.

Clean the Side Brush
Pull out the side brushes and use the included cleaning tool to remove any hair tangled on the brush.

Clean the Main Wheel / Omnidirectional Wheel
Note: Use tools such as a small screwdriver, etc. to separate the axle and the tire.

Note: Please use dry dishcloth for cleaning, as the robot and inner charging dock include sensitive elements. Do not use wet dishcloth to prevent damage caused by water.

Clean the LDS Sensor / Returning to Charge Sensor/Edge Sensor

Clean the Charging Contact

Robot Restarting
If the robot stops responding or cannot be turned off, press and hold down the button for 6 seconds to forcefully turn it off. Then press and hold the button for 3 seconds to turn the robot on.

Battery
The robot contains a high-performance lithium-ion battery pack. Please ensure that it remains well-charged during daily use to maintain optimal battery performance. If the robot is not used for an extended period, turn it off and put it away. To prevent damage from over-discharging, the robot should be recharged at least once every three months.

FAQ

• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
• Use only as described in this manual. Use only manufacturer's recommended attachments
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle charger, including charger plug, and charger terminals with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
• Place the cords from other appliances out of the area to be cleaned.
• Do not operate the vacuum in a room where an infant or child is sleeping.
• Do not operate the vacuum in an area where there are lit candles or fragile objects on the floor to be cleaned.
• Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into.
• Do not allow children to sit on the vacuum.
• Do not use the vacuum on a wet surface.
• Use only with RCS0 supply unit.
